Description

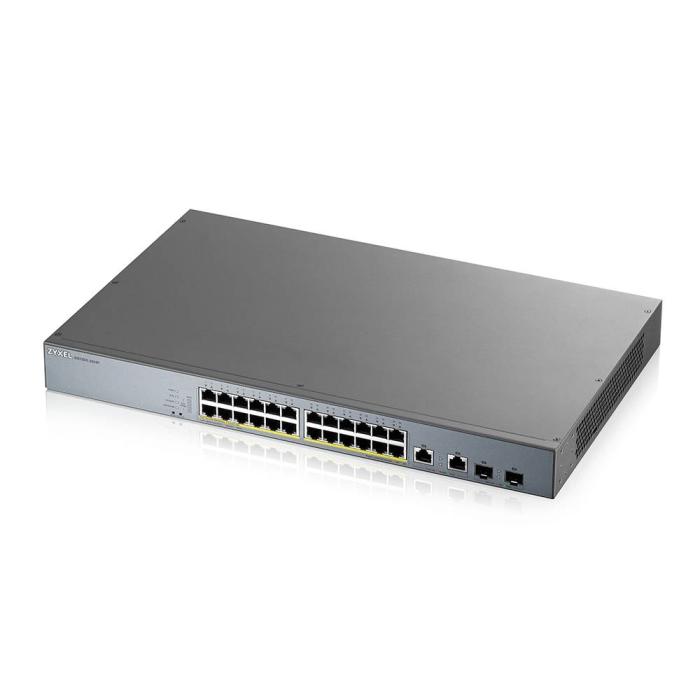

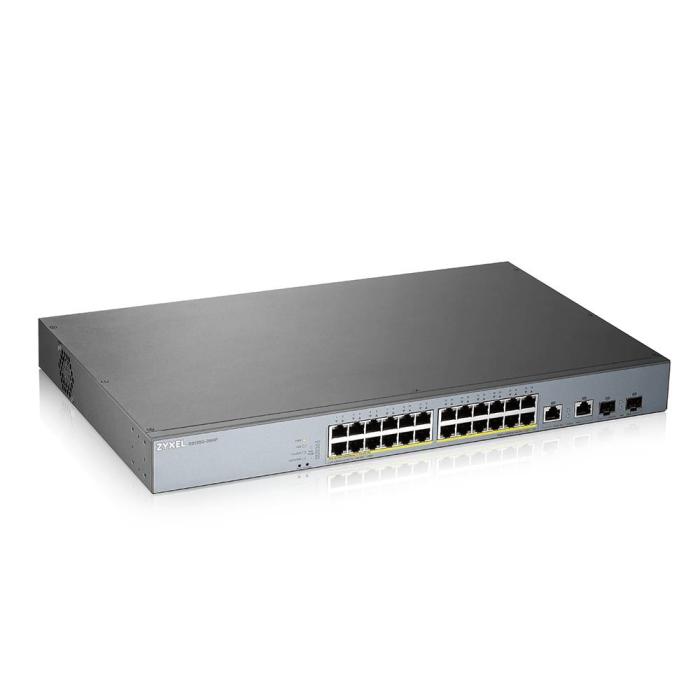

Connect up to 24 Gigabit Ethernet ports with the managed Zyxel GS1350-26HP-EU0101F switch, a grey model offering L2 management and PoE power for your network devices. This switch features two combo SFP ports for fibre links and supports web-based configuration, CLI, and system event logging. With support for 256 VLANs, including port-based and MAC-based VLANs, flow control, rate limiting, and port mirroring, it facilitates traffic management on your network. It includes features such as Spanning Tree Protocol and storm control to maintain stability in demanding work environments.
Specifications
Management features
- Switch type: Managed
- Switch layer: L2
- Web-based management: Yes
- Configuring Location Settings (CLI): Yes
- System event log: Yes
- MIB support: RFC 1066, RFC 1213, 1157, RFC 1493, RFC 1643, RFC 1757, RFC 2011, 2012, 2013, RFC 2233, RFC 2358, RFC 2674, RFC 2819, 2925, RFC
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 24
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- Combo SFP ports quantity: 2
Network
- Networking standards: IEEE 802.1D, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802
- 10G support: No
- Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
- Port mirroring: Yes
- Flow control support: Yes
- Broadcast storm control: Yes
- Rate limiting: Yes
- Spanning tree protocol: Yes
- VLAN support: Yes
- Virtual LAN features: MAC address-based VLAN, Port-based VLAN
- Number of VLANs: 256
Optical fiber
- Fiber ethernet cabling technology: 1000BASE-X
Data transmission
- Switching capacity: 52 Gbit/s
- Forwarding rate: 38.7 Mpps
- MAC address table: 8000 entries
- Packet buffer memory: 0.525 MB
Security
- DHCP features: DHCP client, DHCP relay, DHCP snooping
- IGMP snooping: Yes
- IGMP proxy: Yes
- Security algorithms: SNMP, SNMPv3, SSH, SSL/TLS
- Loop protection: Yes
- Queue scheduling algorithms: SPQ, WFQ, Weighted Round Robin (WRR)
Multicast features
- Multicast support: Yes
Design
- Rack mounting: Yes
- Product colour: Grey
- LED indicators: Yes
- Electromagnetic compatibility: CE, FCC, C-Tick, A; BSMI CNS13438
Performance
- Noise level: 40.1 dB
- Firmware upgradeable: Yes
- Mean time between failures (MTBF): 888495 h
Power
- AC input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
- Power consumption (max): 448.9 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE): Yes
- Power over Ethernet (PoE) ports quantity: 24
- Total Power over Ethernet (PoE) budget: 375 W
Operational conditions
- Operating temperature (T-T): -20 - 50 °C
- Storage temperature (T-T): -40 - 70 °C
- Operating relative humidity (H-H): 5 - 95%
- Storage relative humidity (H-H): 5 - 95%
- Heat dissipation: 1530.75 BTU/h
Weight & dimensions
- Width: 441 mm
- Depth: 270 mm
- Height: 44 mm
- Weight: 3.58 kg
Packaging content
- Cables included: AC
- Rack mount kit: Yes
Logistics data
- Harmonized System (HS) code: 85176990
