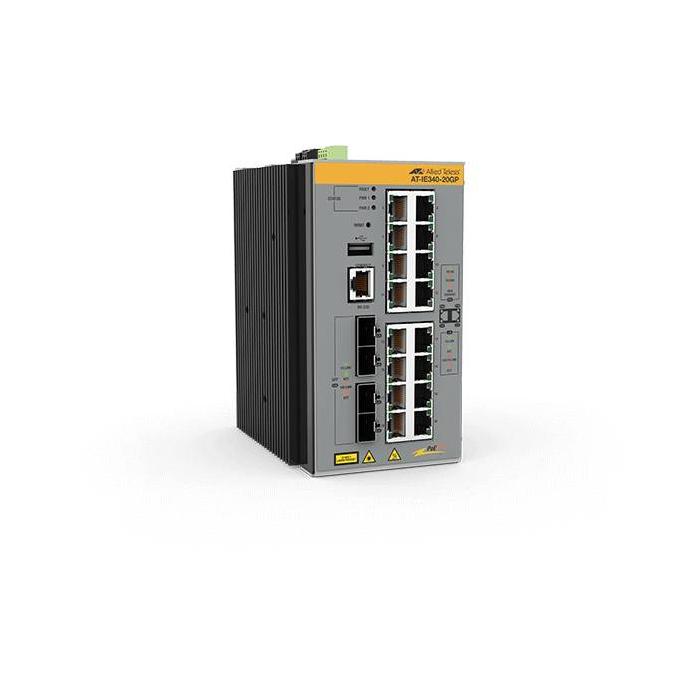

Allied Telesis AT-IE340-20GP-80 Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey

Name: Allied Telesis AT-IE340-20GP-80 Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey
Brand: ALLIED TELESIS
SKU: 304102
Price: 2196.18 EUR
Availability: InStock

More info

Brand: ALLIED TELESIS

2,196.18 €

1,815.03 € without VAT

Stock available: 1 ud.

Get it tomorrow / September 24

SKU: 114439 PRC: 304102 EAN: 767035217550 PN: 990-006294-80

Description

The Allied Telesis AT-IE340-20GP-80 managed switch, in grey, is an L3 device with Gigabit Ethernet connectivity. It features 16 basic RJ-45 Ethernet switching ports and 4 slots for SFP modules, plus a USB 2.0 port and an RJ-45 console port. It supports up to 4094 VLANs and operates in full duplex mode. It is managed via the web, with CLI configuration of location settings, and includes quality of service support, traffic classification and marking, ARP inspection and system event logging. It also features storm transmission control and spanning tree protocol. With dimensions of 91 x 153 x 139 mm (width x height x depth) and a weight of 2.34 kg, it is designed for network installations requiring advanced administration.

Specifications

Management features

Switch type: Managed
Switch layer: L3
Quality of Service (QoS) support: Yes
Web-based management: Yes
Traffic classification: Yes
Traffic shaping: Yes
ARP inspection: Yes
Configuring Location Settings (CLI): Yes
System event log: Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 16
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
SFP module slots quantity: 4
Console port: RJ-45
USB 2.0 ports quantity: 1

Network

Networking standards: IEEE 1588, IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1ag, IEEE 802.1p, IEEE 802.1s, IEEE 802.
10G support: No
Port mirroring: Yes
Full duplex: Yes
Policy-based routing: Yes
Flow control support: Yes
Link aggregation: Yes
Broadcast storm control: Yes
Spanning tree protocol: Yes
VLAN support: Yes
Virtual LAN features: Private VLAN, Tagged VLAN
Number of VLANs: 4094

Data transmission

Switching capacity: 40 Gbit/s
Forwarding rate: 29.7 Mpps
MAC address table: 16000 entries
Number of queues: 8
Jumbo frames support: Yes
Jumbo frames: 9000
Packet buffer memory: 1.5 MB

Security

DHCP features: DHCP relay, DHCP server, DHCP snooping, DHCPv6 relay, DHCPv6 server
Access Control List (ACL): Yes
IGMP snooping: Yes
MAC address filtering: Yes
BPDU filtering/protection: Yes
Authentication: Guest VLAN, MAC-based authentication, Port-based authentication, Web-based authentication
Password protection: Yes
