Ubiquiti UniFi 16-Port PoE Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Silver
More info
Brand: UBIQUITI NETWORKS
333.20 €
275.37 €
without VAT
Stock available: 99 units.
Get it
tomorrow
/
September 2
SKU:
83764
PRC:
274591
EAN:
817882028516
PN:
usw-16-poe
Description

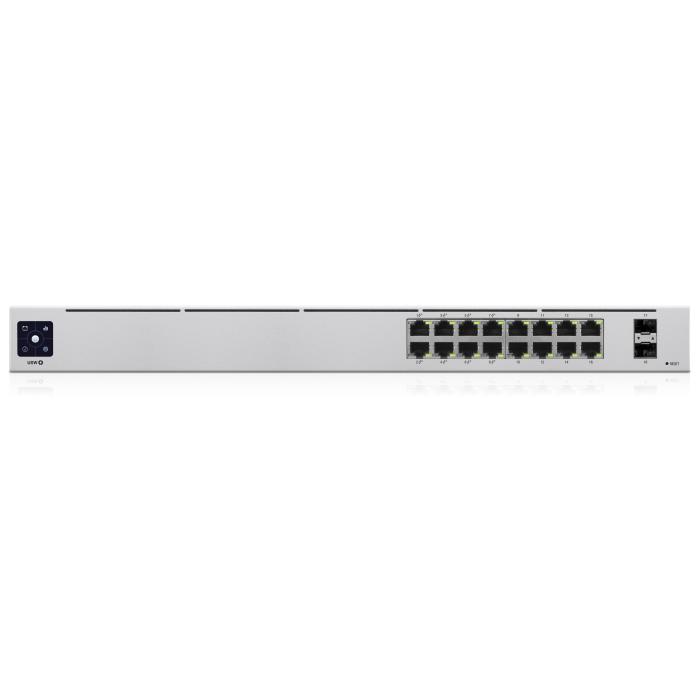

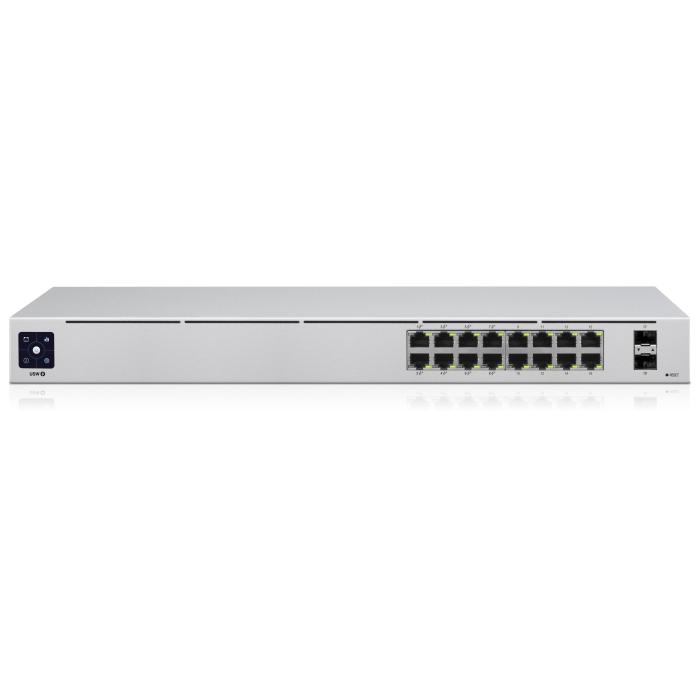

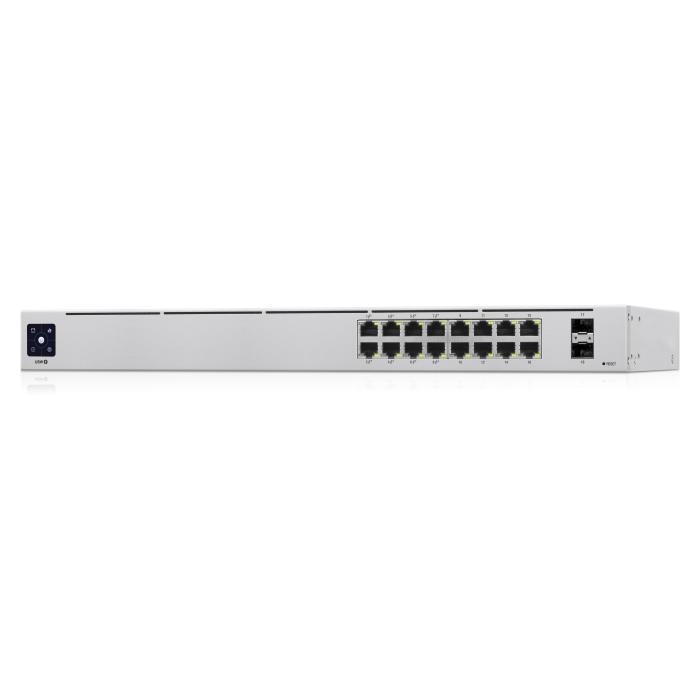

Managed 16-port Gigabit Ethernet switch with two SFP slots and a 1U silver chassis, designed for integration into professional network racks. This UBIQUITI NETWORKS device operates at L2/L3 layers and includes Power over Ethernet (PoE) with support for IEEE 802.3af and 802.3at standards, plus auto-detection, full duplex, spanning tree protocol, port mirroring, flow control, VLAN, auto MDI/MDI-X, jumbo frames, and static routing. Its switching capacity reaches 36 Gbit/s with a forwarding rate of 26.78 Mpps, enabling efficient network traffic management. It integrates advanced management features for enterprise environments, facilitating control and configuration of the network infrastructure.
Specifications
Management features
- Switch type: Managed
- Switch layer: L2/L3
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 16
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- SFP module slots quantity: 2
Network
- Networking standards: IEEE 802.3af, IEEE 802.3at
- Port mirroring: Yes
- Full duplex: Yes
- Flow control support: Yes
- Auto MDI/MDI-X: Yes
- Spanning tree protocol: Yes
- Auto-sensing: Yes
- VLAN support: Yes
Data transmission
- Switching capacity: 36 Gbit/s
- Throughput: 18000 Mpps
- Forwarding rate: 26.78 Mpps
- Static route: Yes
- Jumbo frames support: Yes
Security
- Authentication type: IEEE 802.1x, RADIUS
Design
- Rack mounting: Yes
- Form factor: 1U
- Product colour: Silver
- LED indicators: Activity, Link, PoE, Speed, System
Power
- Power supply included: Yes
- AC input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
- DC input voltage: 44 - 57 V
Power over Ethernet (PoE)
- Power over Ethernet (PoE): Yes
- Power over Ethernet plus (PoE+) ports quantity: 8
- Power over Ethernet (PoE) power per port: 32 W
- Total Power over Ethernet (PoE) budget: 48 W
Operational conditions
- Operating temperature (T-T): -5 - 40 °C
- Operating relative humidity (H-H): 10 - 90%
Weight & dimensions
- Width: 442.4 mm
- Depth: 200 mm
- Height: 43.7 mm
- Weight: 2.8 kg
Certificates
- Certification: CE, FCC, IC
Logistics data
- Harmonized System (HS) code: 85176990
