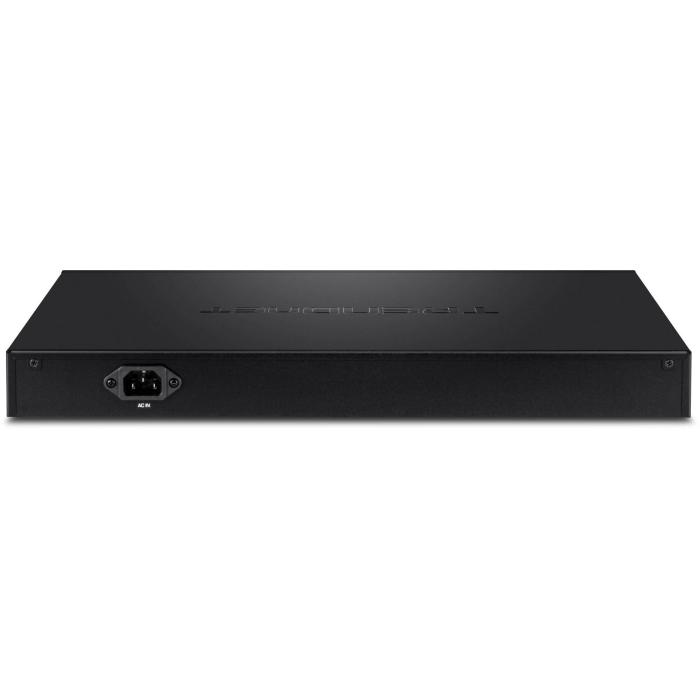

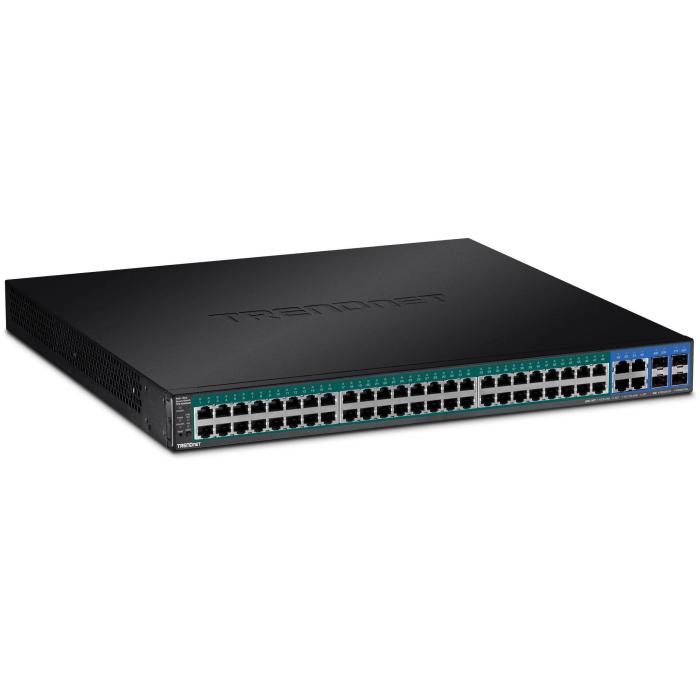

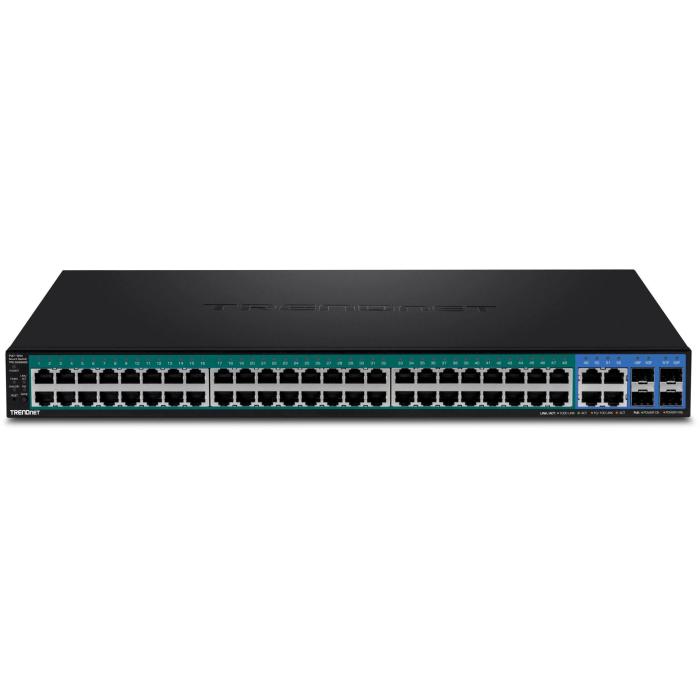

Name: Trendnet TPE-5048WS network switch Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black
Brand: TRENDNET
Price: 719.85 USD
Availability: InStock

Trendnet TPE-5048WS network switch Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black

$719.85

$719.85 without VAT

Amount

Brand: TRENDNET

SKU: 80031 PRC: 196570 EAN: 710931161168 PN: TPE-5048WS

Description

Specifications

Management features

Switch type: Managed
Quality of Service (QoS) support: Yes
Web-based management: Yes
MIB support: IP FORWARD TABLE MIB RFC 1354, RMON MIB RFC 1271, IPV4 MIB RFC 1213, IPV6 MIB RFC 2465, GVRP MIB IEEE 802.1Q-VLAN, LA MIB IEEE 8

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 52
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Combo SFP ports quantity: 4
Power connector: DC-in jack

Network

Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3
Port mirroring: Yes
Full duplex: Yes
Link aggregation: Yes
Spanning tree protocol: Yes
Head-of-line (HOL) blocking: Yes
VLAN support: Yes
Virtual LAN features: Private VLAN, VLAN Identifier ( VLAN ID), Voice VLAN, Tagged VLAN

Data transmission

Switching capacity: 104 Gbit/s
Forwarding rate: 77.4 Mpps
MAC address table: 16000 entries
Jumbo frames support: Yes
Packet buffer memory: 12 MB

Security

Access Control List (ACL): Yes
IGMP snooping: Yes
Security algorithms: HTTPS, SNMP, SSL/TLS
MAC address filtering: Yes

Multicast features

Multicast support: Yes
Multicast MAC address table: 256 entries

Design

Rack mounting: Yes
Form factor: 1U
Product colour: Black
Housing material: Linear low-density polyethylene (LLDPE)
LED indicators: Yes
Number of fans: 5 fan(s)

Performance

Compatible operating systems: Windows® 10, 8.1, 8, 7, Vista, XP, Windows® 2003/2008 Server
Noise level: 55 dB
Mean time between failures (MTBF): 338.601 h

Power

AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Power consumption (typical): 30 W
Power consumption (max): 963 W

Power over Ethernet (PoE)

Power over Ethernet (PoE): Yes
Power over Ethernet plus (PoE+) ports quantity: 48
Total Power over Ethernet (PoE) budget: 740 W

Operational conditions

Operating temperature (T-T): -5 - 50 °C
Operating relative humidity (H-H): 0 - 95%

Weight & dimensions

Width: 440 mm
Depth: 430 mm
Height: 44 mm
Weight: 6.58 kg

Packaging content

Cables included: AC
Quick start guide: Yes
Rack mount kit: Yes

Packaging data

Resource CD: Yes

Certificates

Certification: CE, FCC

Logistics data

Harmonized System (HS) code: 85176990
