Description
The Trendnet TI-PG62B switch, in its black finish with a metal housing, offers four Gigabit Ethernet ports (10/100/1000) with PoE support and two SFP slots for fibre links. This unmanaged Layer 2 model operates in store-and-forward mode, achieving a switching capacity of 12 Gbit/s and a throughput of 8.9 Mpps. It includes auto-negotiation, full duplex and jumbo frames of up to 9000 bytes, with a MAC address table of 1024 entries. It complies with IEEE 802.3, 802.3ab, 802.3af, 802.3at, 802.3u, 802.3x and 802.3z standards, thereby integrating copper and fibre network devices without the need for configuration.
Specifications
Management features
- Switch type: Unmanaged
- Switch layer: L2
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 4
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- Gigabit Ethernet (copper) ports quantity: 4
- SFP module slots quantity: 2
Network
- Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
- 10G support: No
- Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
- Full duplex: Yes
- Auto-negotiation: Yes
Data transmission
- Switching capacity: 12 Gbit/s
- Throughput: 8.9 Mpps
- MAC address table: 1024 entries
- Store-and-forward: Yes
- Jumbo frames support: Yes
- Jumbo frames: 9000
Design
- Rack mounting: No
- Product colour: Black
- Housing material: Metal
- LED indicators: Yes
- International Protection (IP) code: IP30
- Wall mountable: Yes

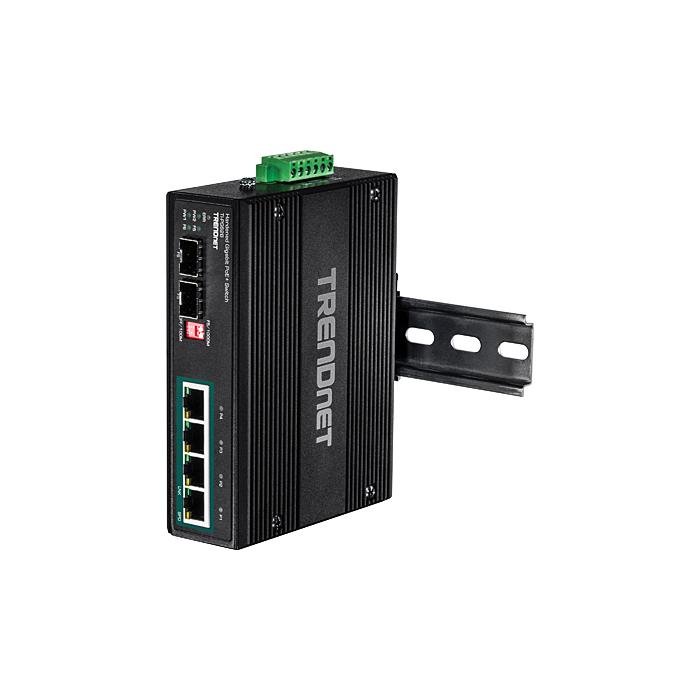

- DIN rail mounting: Yes
Performance
- Buffer size: 1024 KB
- Mean time between failures (MTBF): 510304 h
Power
- Redundant power supply (RPS) support: Yes
- Input voltage: 12 – 56
- Power consumption (max): 5.76 W
- Power protection features: Overload
Power over Ethernet (PoE)
- Power over Ethernet (PoE): Yes
- Power over Ethernet plus (PoE+) ports quantity: 4
- Total Power over Ethernet (PoE) budget: 120 W
Other features
- Terminal block port: Yes
Operational conditions
- Operating temperature (T-T): -40 - 75 °C
Weight & dimensions
- Width: 143 mm
- Depth: 105 mm
- Height: 45 mm
- Weight: 700 g
Packaging content
- Quick start guide: Yes
Packaging data

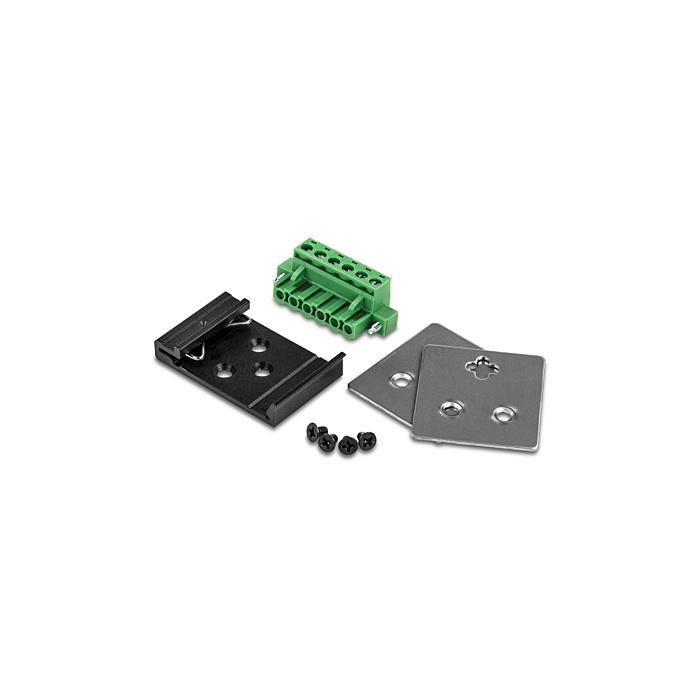

- Mounting brackets included: Yes
Certificates
- Certification: FCC, CE RoHS
Logistics data
- Harmonized System (HS) code: 85176990
