Description
The Trendnet TI-PG62 switch in black is an unmanaged model that integrates four Gigabit Ethernet (10/100/1000) RJ-45 ports alongside a combo SFP slot, thus offering a high-performance wired connection to expand your home or small office network. With a switching capacity of 12 Gbit/s and a throughput of 8.9 Mpps, this hub manages data traffic efficiently, while its support for jumbo frames up to 9000 bytes optimises the transfer of large files. The PoE functionality, compliant with IEEE 802.3af and 802.3at standards, allows powering compatible devices such as IP cameras or access points directly via the Ethernet cable, simplifying cabling.
Specifications
Management features
- Switch type: Unmanaged
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 4
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- Combo SFP ports quantity: 1
- SFP module slots quantity: 1
Network
- MAC address auto-learning supported: Yes
- MAC address auto-aging supported: Yes
- Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
- 10G support: No
- Full duplex: Yes
- Auto-negotiation: Yes
Data transmission
- Switching capacity: 12 Gbit/s
- Throughput: 8.9 Mpps
- MAC address table: 1000 entries
- Store-and-forward: Yes
- Jumbo frames support: Yes
- Jumbo frames: 9000
Design
- Rack mounting: No
- Product colour: Black
- Housing material: Metal
- LED indicators: Yes
- International Protection (IP) code: IP30
- Wall mountable: Yes

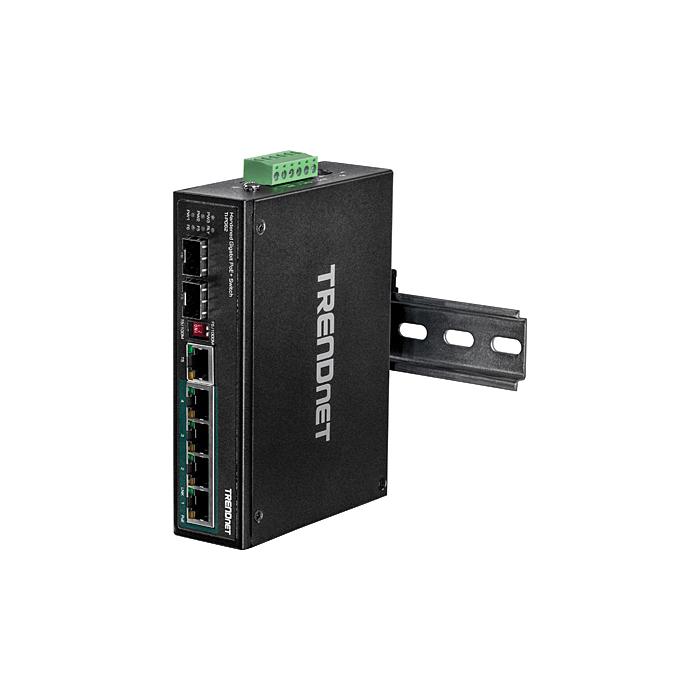

- DIN rail mounting: Yes
Performance
- Buffer size: 1024 KB
- Mean time between failures (MTBF): 460304 h
Power
- Redundant power supply (RPS) support: Yes
- AC input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
- Input current: 2 A
- Input voltage: 48 - 56 V
- Output voltage: 48 V
- Output current: 3.34 A
- Power consumption (max): 5.76 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE): Yes
- Power over Ethernet plus (PoE+) ports quantity: 4
- Total Power over Ethernet (PoE) budget: 120 W
Other features

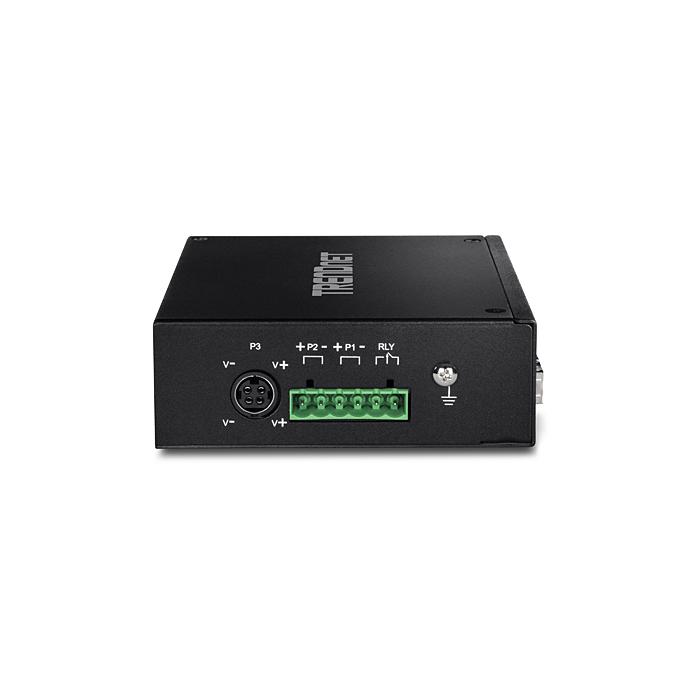

- Terminal block port: Yes
Operational conditions
- Operating temperature (T-T): -40 - 75 °C
- Operating relative humidity (H-H): 0 - 95%
Weight & dimensions
- Width: 143 mm
- Depth: 105 mm
- Height: 36 mm
- Weight: 500 g
Packaging content
- Quick start guide: Yes
Packaging data

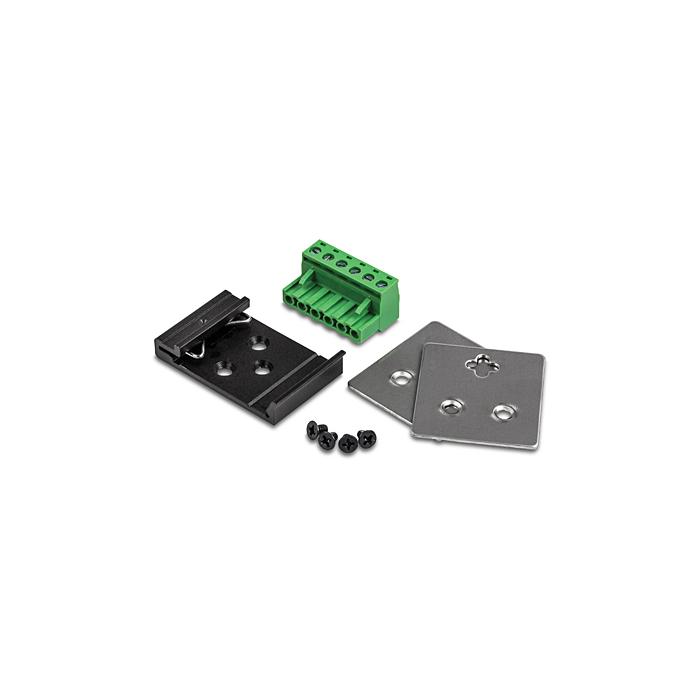

- Wall mounting kit: Yes
- Terminal block included: Yes
Certificates
- Certification: CE, FCC, IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6
Logistics data
- Harmonized System (HS) code: 85176990
