Description

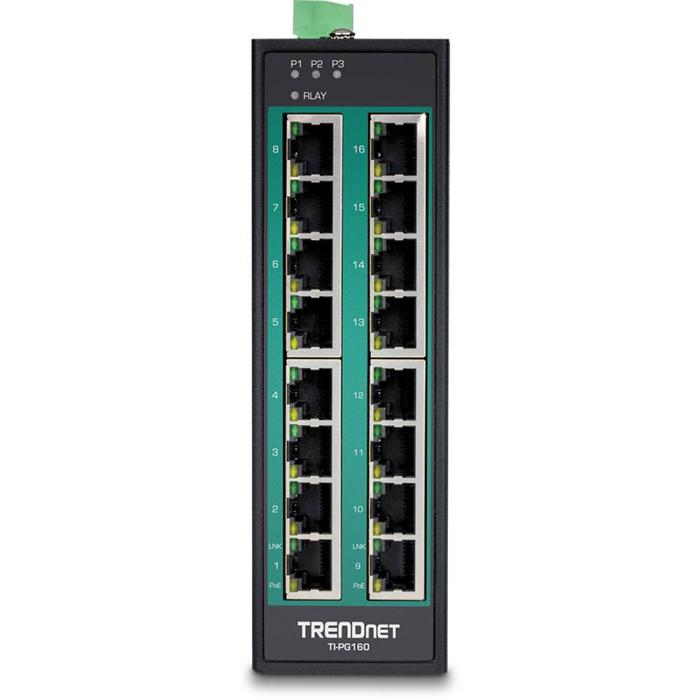

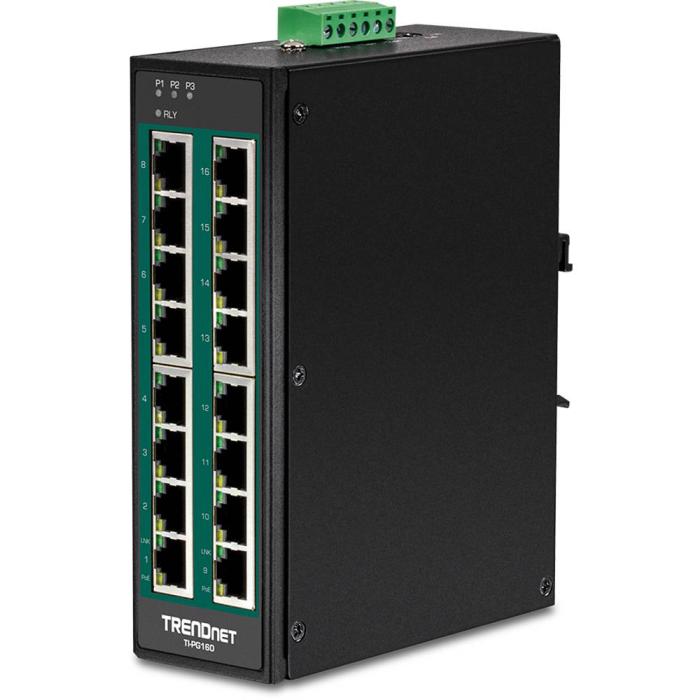

Trendnet TI-PG160 unmanaged switch with 16 Gigabit Ethernet ports (10/100/1000) and Power over Ethernet (PoE) support in a black metal housing. It powers devices compliant with IEEE 802.3af and IEEE 802.3at standards over the network cable, with a switching capacity of 32 Gbit/s and a MAC address table of 8192 entries. Includes support for Jumbo frames of 9216 bytes, full duplex operation, and compliance with IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, and IEEE 802.3x standards. Designed for wall or DIN rail mounting, with IP30 protection rating, LED indicators, and a forwarding rate of 23.8 Mpps, this model does not support 10G and offers easy installation without configuration.
Specifications
Management features
- Switch type: Unmanaged
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 16
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Network
- Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
- 10G support: No
- Full duplex: Yes
Data transmission
- Switching capacity: 32 Gbit/s
- Forwarding rate: 23.8 Mpps
- MAC address table: 8192 entries
- Jumbo frames support: Yes
- Jumbo frames: 9216
Design
- International Protection (IP) code: IP30

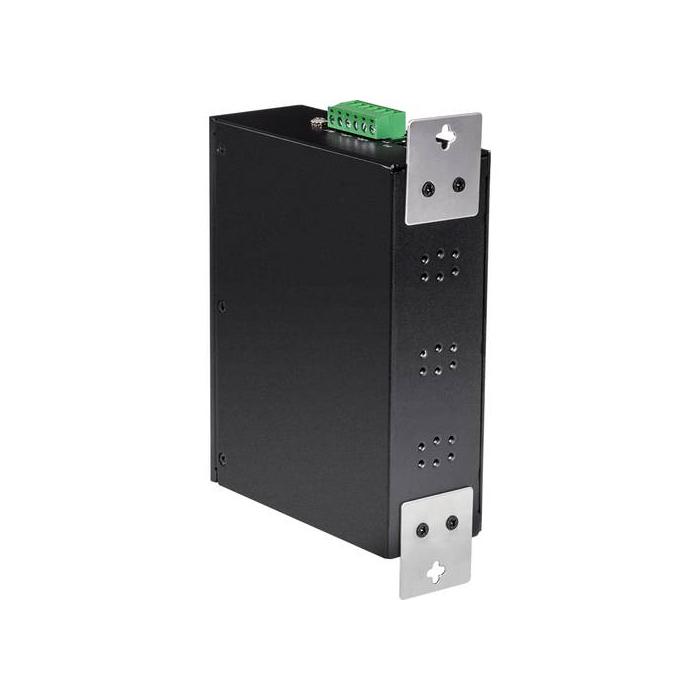

- Wall mountable: Yes

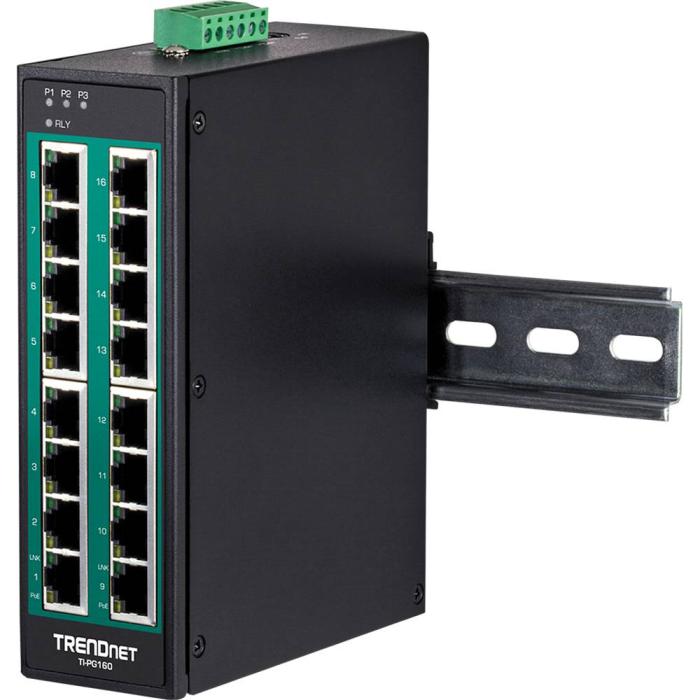

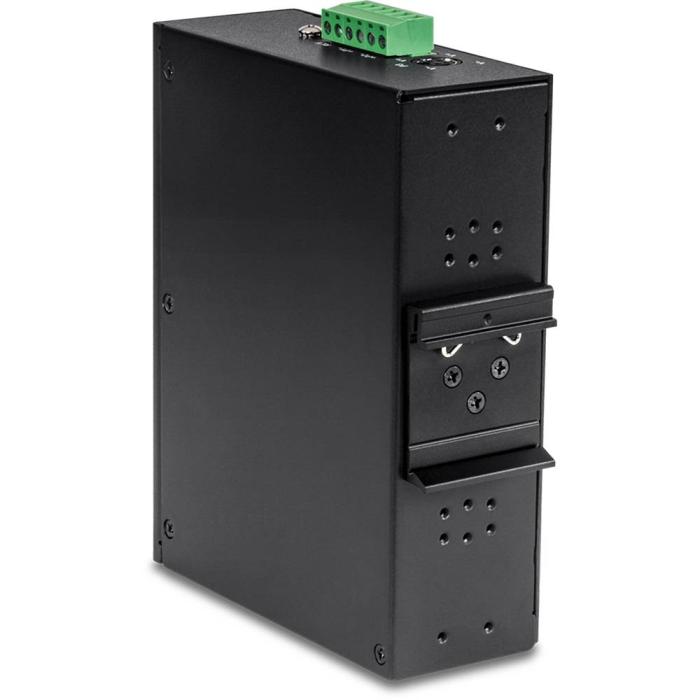

- DIN rail mounting: Yes
- Rack mounting: No
- Product colour: Black
- Housing material: Metal
- LED indicators: Yes
Performance
- Mean time between failures (MTBF): 699103 h
Power

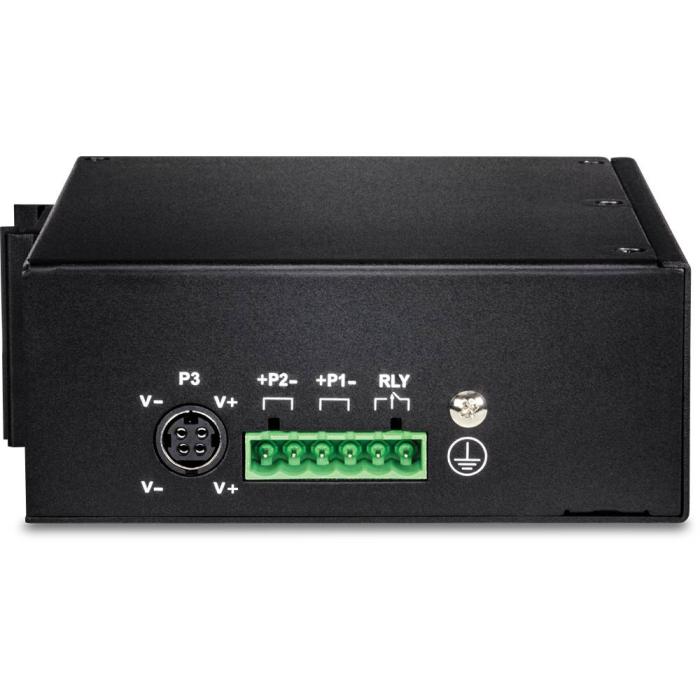

- Redundant power supply (RPS) support: Yes
- AC input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
- DC input voltage: 48 - 56 V
- Power consumption (max): 5.76 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE): Yes
- Power over Ethernet plus (PoE+) ports quantity: 16
- Total Power over Ethernet (PoE) budget: 240 W
Operational conditions
- Operating temperature (T-T): -40 - 75 °C
Weight & dimensions
- Width: 155 mm
- Depth: 120 mm
- Height: 48 mm
- Weight: 500 g
Packaging content
- Quick start guide: Yes
Certificates
- Certification: CE, FCC, UL
Logistics data
- Harmonized System (HS) code: 85176990
