Description

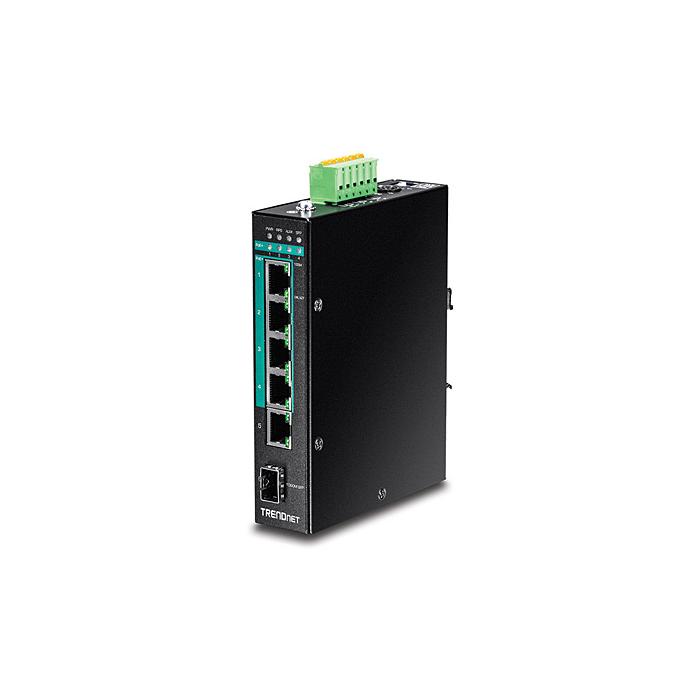

Trendnet TI-PG541 network switch Unmanaged L2 with five Gigabit Ethernet ports (10/100/1000) and one SFP slot for fibre links, all in a black finish. This model integrates PoE power supply according to IEEE 802.3af and 802.3at standards to deliver power to compatible devices, with a switching capacity of 12 Gbit/s and forwarding rate of 8.9 Mpps. It includes flow control, full duplex, jumbo frame support and a MAC table of 8000 entries, operating with 10BASE-T, 100BASE-TX and 1000BASE-T copper technologies. It is a simple plug-and-play solution with store-and-forward mode for small or medium networks requiring port expansion with fibre optic option.
Specifications
Management features
- Switch type: Unmanaged
- Switch layer: L2
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 5
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- Gigabit Ethernet (copper) ports quantity: 5
- SFP module slots quantity: 1
- Power connector: DC-in jack
Network
- Networking standards: IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
- 10G support: No
- Copper ethernet cabling technology: 1000BASE-T, 100BASE-TX, 10BASE-T
- Full duplex: Yes
- Flow control support: Yes
Optical fiber
- Fiber ethernet cabling technology: 1000BASE‑LX, 100BASE-SX
Data transmission
- Switching capacity: 12 Gbit/s
- Throughput: 8.9 Mpps
- MAC address table: 8000 entries
- Store-and-forward: Yes
- Jumbo frames support: Yes
Design
- Rack mounting: No
- Product colour: Black
- Housing material: Metal
- LED indicators: Yes
- International Protection (IP) code: IP30
Performance
- Buffer size: 512 KB
Power
- Redundant power supply (RPS) support: Yes
- AC input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
- Power consumption (typical): 130 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE): Yes
- Power over Ethernet plus (PoE+) ports quantity: 4
- Total Power over Ethernet (PoE) budget: 120 W
Operational conditions
- Operating temperature (T-T): -20 - 60 °C
- Operating relative humidity (H-H): 0 - 95%
Weight & dimensions
- Height: 135 mm
- Weight: 500 g
- Width: 100 mm
- Depth: 30 mm
Packaging content
- Quick start guide: Yes
Certificates
- Certification: CE, FCC
Logistics data
- Harmonized System (HS) code: 85176990
