Description

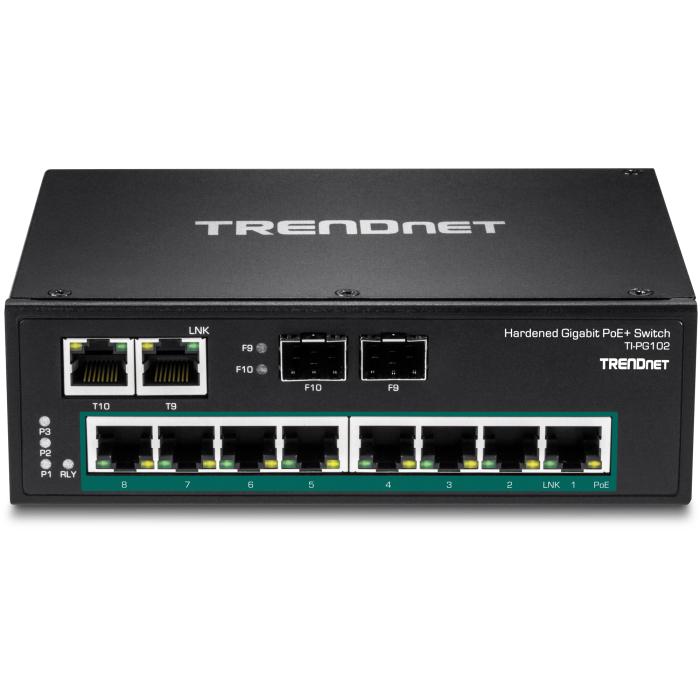

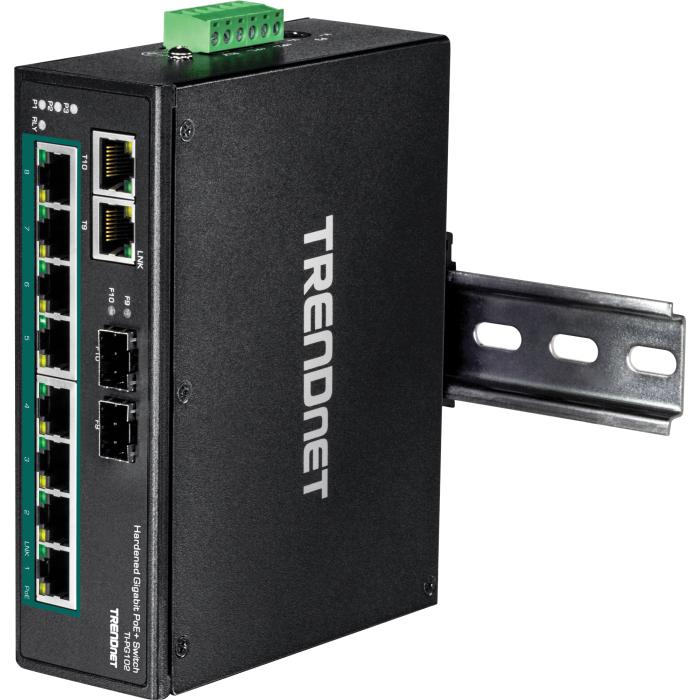

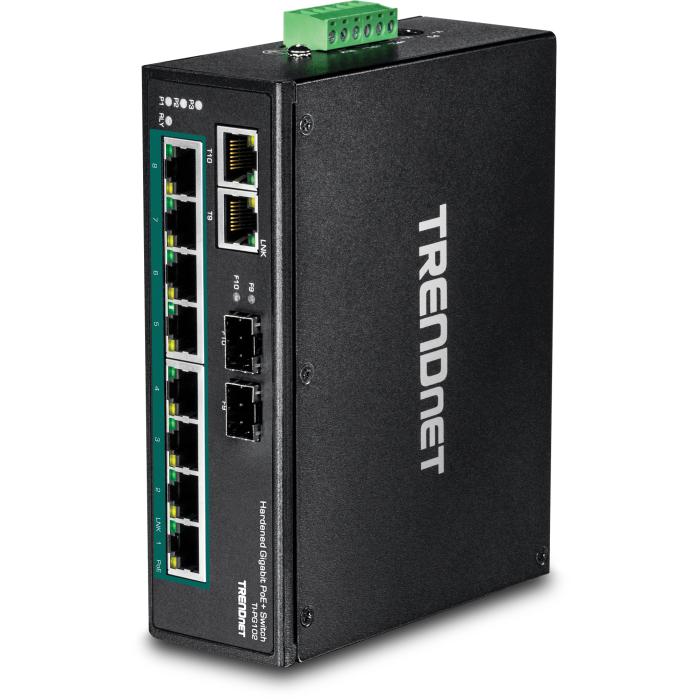

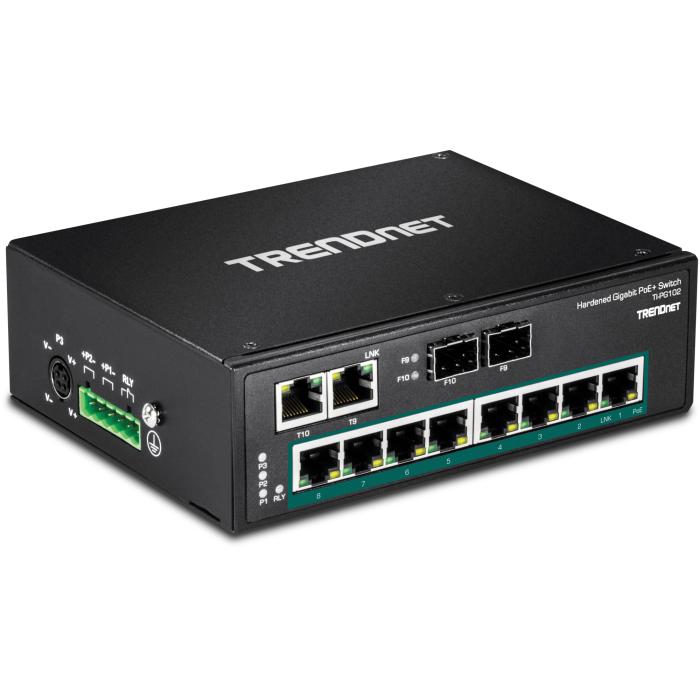

The Trendnet TI-PG102 unmanaged switch in black offers ten Gigabit Ethernet RJ-45 ports (10/100/1000) with PoE support according to IEEE 802.3af and 802.3at standards, plus two SFP slots for fibre links; its metal housing supports wall or DIN rail mounting. With a switching capacity of 20 Gbit/s and a MAC address table of 16,000 entries, it manages traffic in store-and-forward mode, including auto-negotiation, full duplex and automatic address learning. Its forwarding rate reaches 14.8 Mpps and it is powered via a DC input socket, complying with IEEE 802.3, 802.3ab, 802.3u, 802.3x and 802.3z standards.
Specifications
Management features
- Switch type: Unmanaged
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 10
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- SFP module slots quantity: 2

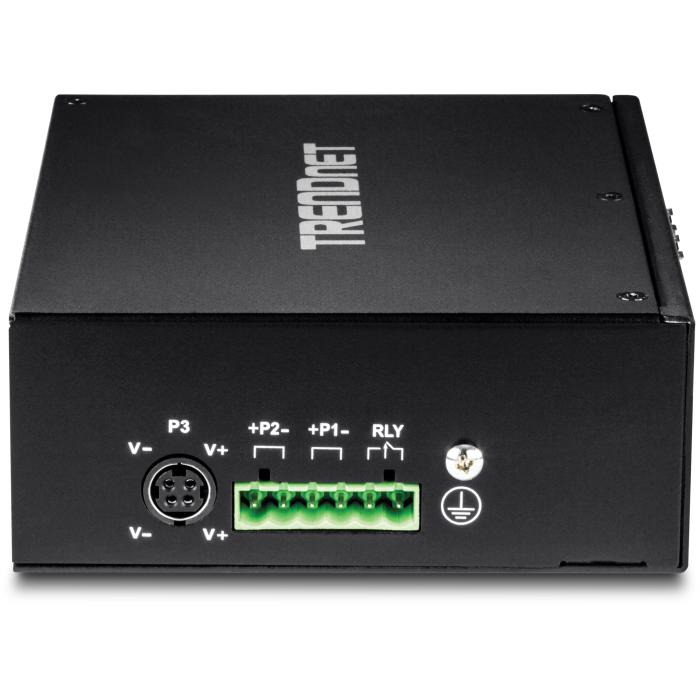

- Power connector: DC-in jack
Network
- Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
- Full duplex: Yes
- Auto-negotiation: Yes
- MAC address auto-learning supported: Yes
- MAC address auto-aging supported: Yes
Data transmission
- Switching capacity: 20 Gbit/s
- Forwarding rate: 14.8 Mpps
- MAC address table: 16000 entries
- Store-and-forward: Yes
Design
- Rack mounting: No
- Product colour: Black
- Housing material: Metal
- LED indicators: Yes
- International Protection (IP) code: IP30
- Wall mountable: Yes

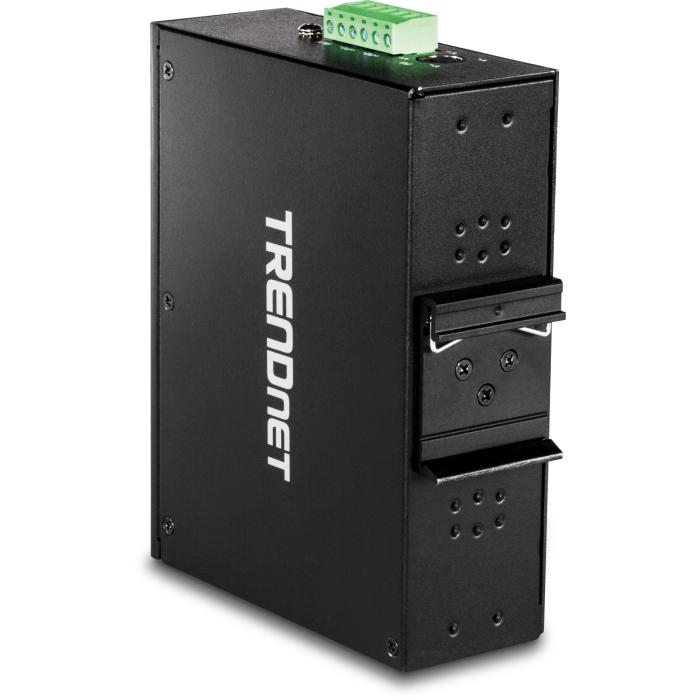

- DIN rail mounting: Yes
Performance
- Buffer size: 2048 KB
- Mean time between failures (MTBF): 510400 h
Power
- Redundant power supply (RPS) support: Yes
- DC input voltage: 48 - 56 V
- Input voltage: 48/56 V
- Power consumption (max): 5.67 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE): Yes
- Power over Ethernet plus (PoE+) ports quantity: 8
- Power over Ethernet (PoE) power per port: 30 W
- Total Power over Ethernet (PoE) budget: 240 W
Operational conditions
- Operating temperature (T-T): -40 - 75 °C
- Operating relative humidity (H-H): 0 - 95%
Weight & dimensions
- Width: 155 mm
- Depth: 120 mm
- Height: 48 mm
- Weight: 445 g
Packaging data

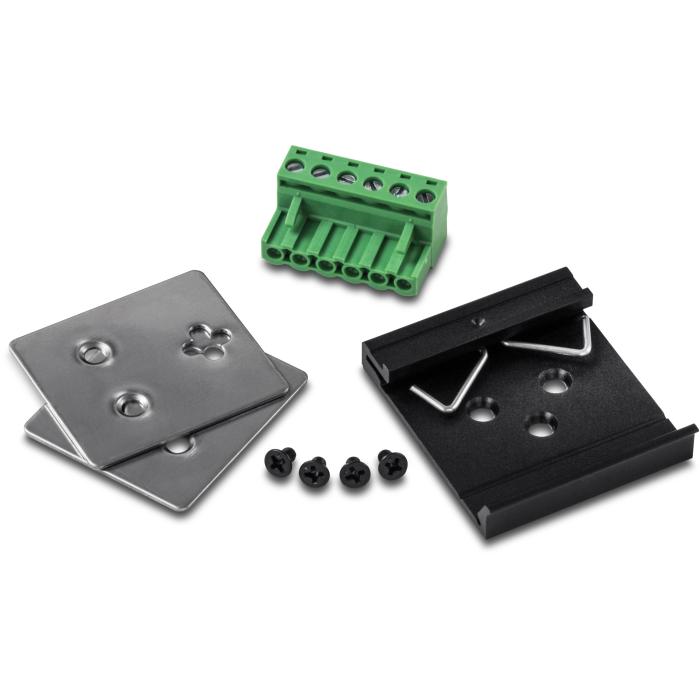

- Wall mounting kit: Yes
- Terminal block included: Yes
Certificates
- Certification: CE FCC
Logistics data
- Harmonized System (HS) code: 85176990
