Description

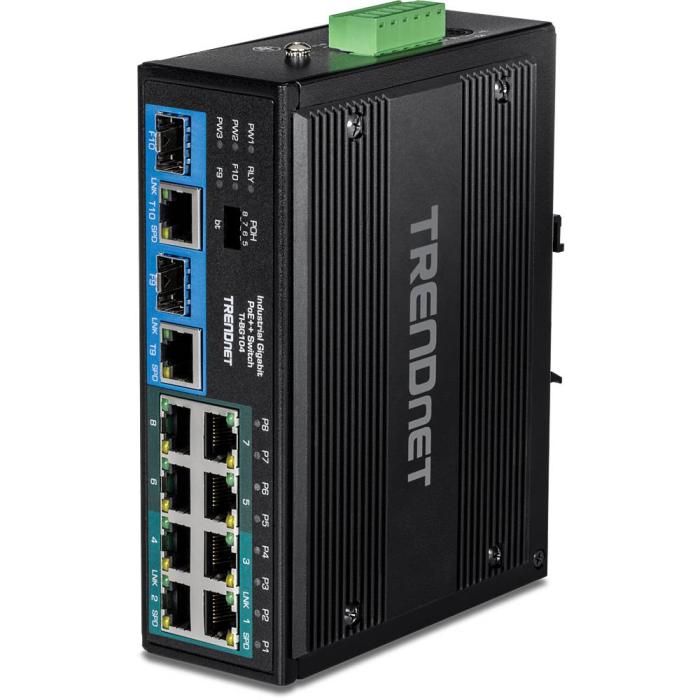

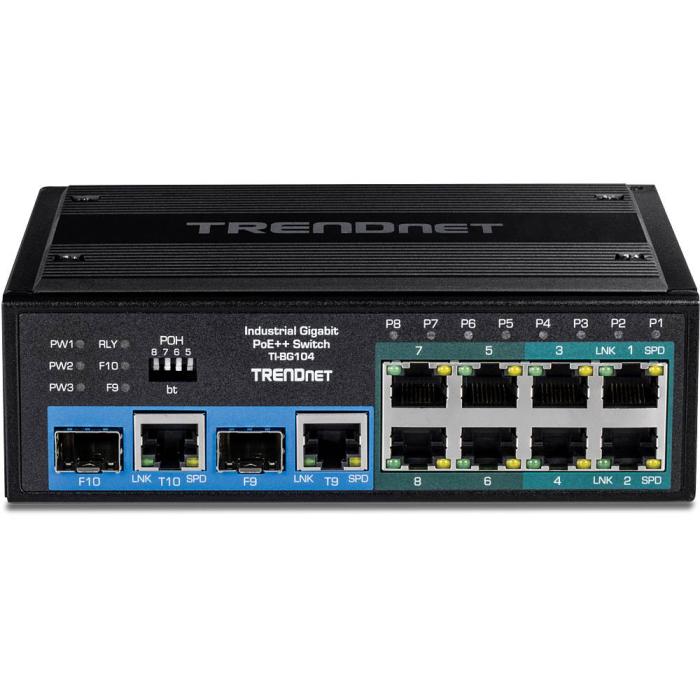

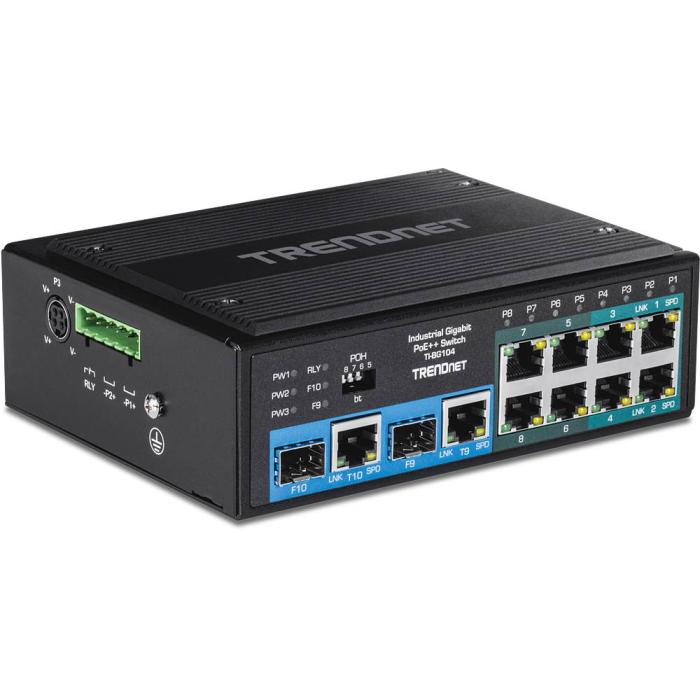

The Trendnet TI-BG104 network switch, in its black finish, is an unmanaged device with 10 Gigabit Ethernet ports (10/100/1000) and 2 combo SFP slots to expand the network with fibre or other links. This unit integrates PoE power supply in accordance with IEEE 802.3af and 802.3at standards, allowing power to be supplied to IP cameras or access points via the network cable itself. The model features automatic functions such as auto-negotiation, full duplex and flow control, in addition to supporting jumbo frames up to 10000 bytes and a 2 MB buffer memory for managing traffic. Its store-and-forward operation and MAC address table with auto-learning and auto-ageing ensure efficient switching in office or home installations.
Specifications
Management features
- Switch type: Unmanaged
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 10
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- Gigabit Ethernet (copper) ports quantity: 10
- Combo SFP ports quantity: 2
Network
- Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x
- 10G support: No
- Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
- Full duplex: Yes
- Flow control support: Yes
- Ethernet LAN data rates: 10,100,1000 Mbit/s
- Auto-negotiation: Yes
- MAC address auto-learning supported: Yes
- MAC address auto-aging supported: Yes
Data transmission
- Switching capacity: 20 Gbit/s
- Forwarding rate: 8.9 Mpps
- MAC address table: 11000 entries
- Store-and-forward: Yes
- Jumbo frames support: Yes
- Jumbo frames: 10000
- Packet buffer memory: 2 MB
Design
- Rack mounting: No
- Product colour: Black
- Housing material: Metal
- LED indicators: Yes
- International Protection (IP) code: IP30

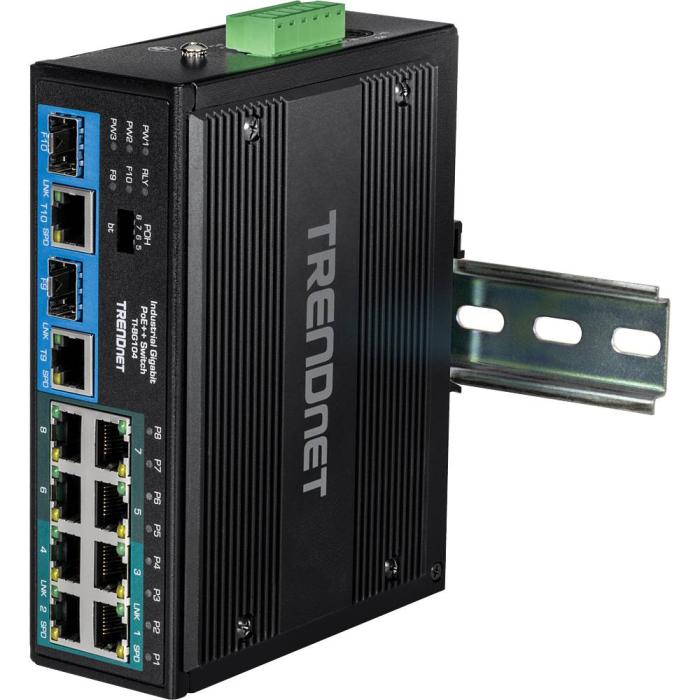

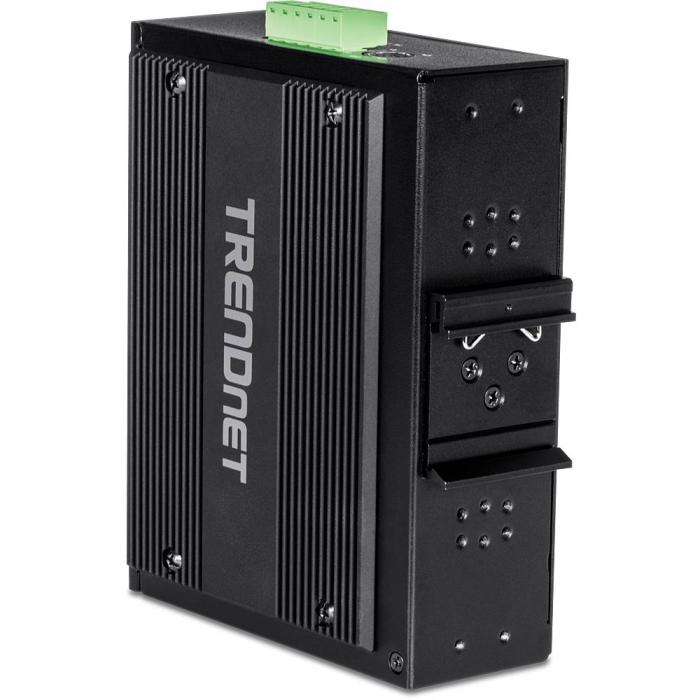

- DIN rail mounting: Yes
Performance
- Mean time between failures (MTBF): 510304 h
Power

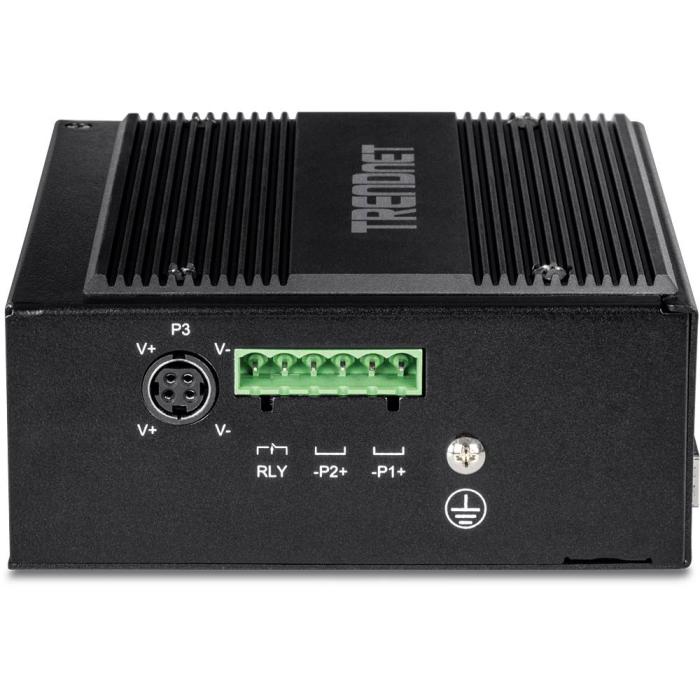

- Power source: DC/PoE
- AC input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
- Input current: 2 A
- Input voltage: 48 - 56 V
- Power consumption (max): 6.2 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE): Yes
- Power over Ethernet plus (PoE+) ports quantity: 4
- Power over Ethernet 4PPoE (PoE++) ports quantity: 4
- Total Power over Ethernet (PoE) budget: 360 W
Operational conditions
- Operating temperature (T-T): -40 - 75 °C
Weight & dimensions
- Width: 122 mm
- Depth: 48 mm
- Height: 158 mm
- Weight: 630 g
Packaging content
- Quick start guide: Yes
Sustainability
- Sustainability compliance: Yes
Certificates
- Compliance certificates: CE
- Certification: FCC IEC 60068-2-27 IEC 60068-2-32 IEC 60068-2-6 IEC 61000-4-2 IEC 61000-4-4 IEC 61000-4-5
