Description

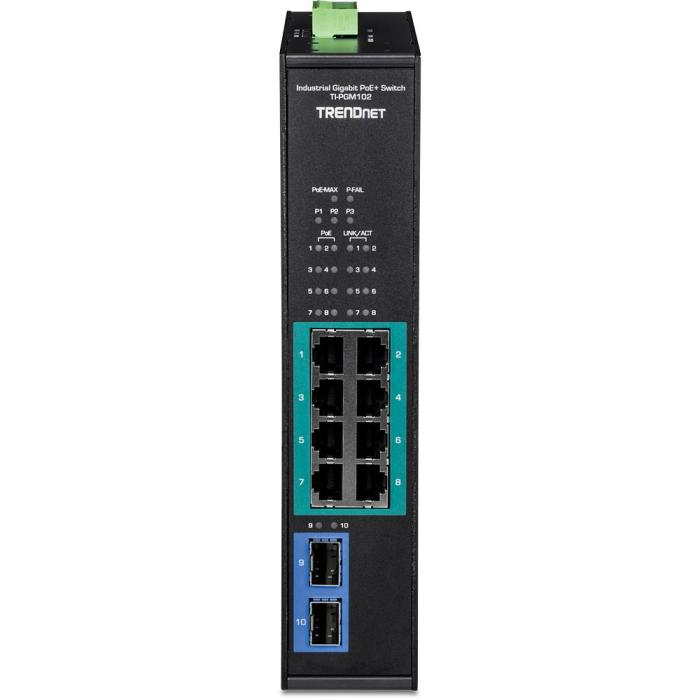

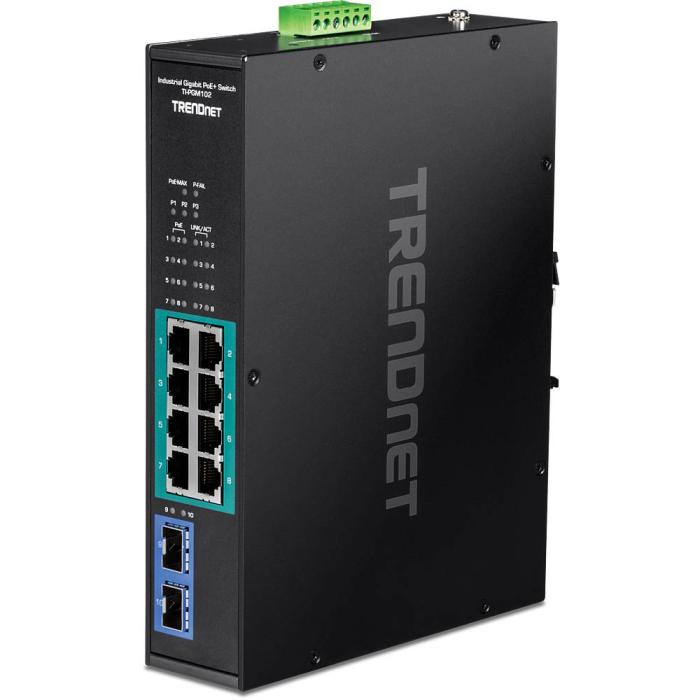

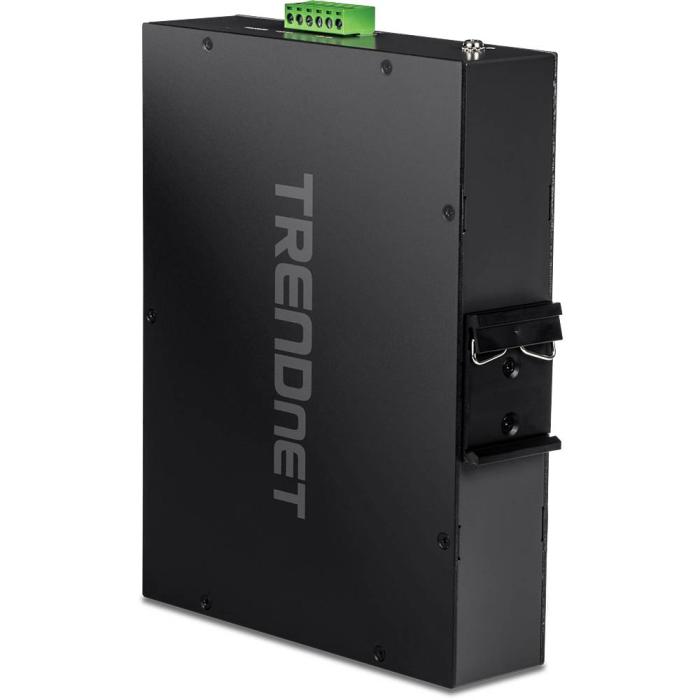

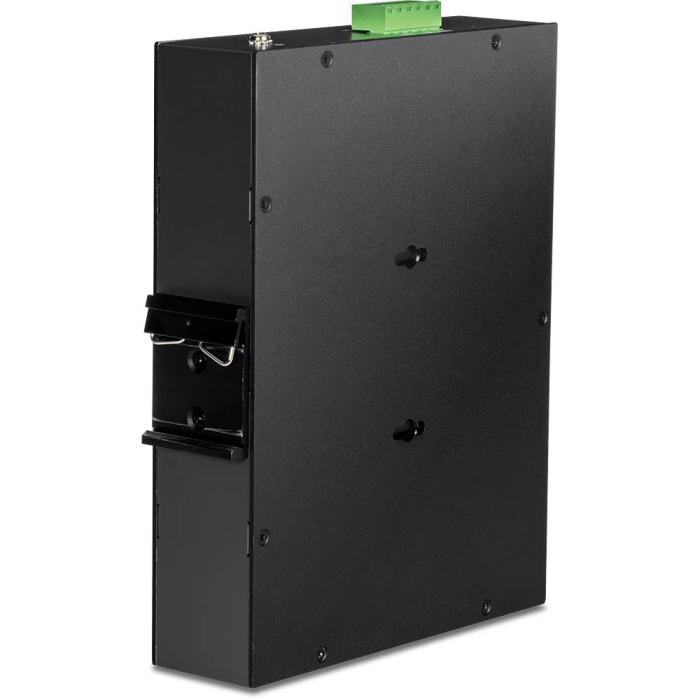

Trendnet TI-PGM102 network switch with 8 Gigabit Ethernet ports and 2 SFP slots for fibre optic links, designed in black to integrate into any rack or network installation. This model manages power delivery through its PoE ports according to IEEE 802.3af and at standards, with auto-negotiation and full duplex support to optimise data traffic. Its switching capacity reaches 20 Gbit/s, with a MAC address table of 4000 entries and jumbo frames enabled, facilitating the transfer of large packets. LED indicators allow monitoring of each connection status, while store-and-forward mode ensures efficient packet forwarding at 14.88 Mpps.
Specifications
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 8
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- Gigabit Ethernet (copper) ports quantity: 8
- Installed SFP modules quantity: 2
Network
- Networking standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at
- Full duplex: Yes
- Half duplex: Yes
- Auto-negotiation: Yes
- MAC address auto-learning supported: Yes
- MAC address auto-aging supported: Yes
Data transmission
- Switching capacity: 20 Gbit/s
- Forwarding rate: 14.88 Mpps
- MAC address table: 4000 entries
- Store-and-forward: Yes
- Jumbo frames support: Yes
- Jumbo frames: 1
- Packet buffer memory: 1.5 MB
Design
- Product colour: Black
- Housing material: Metal
- LED indicators: Yes
- International Protection (IP) code: IP30
- Wall mountable: Yes

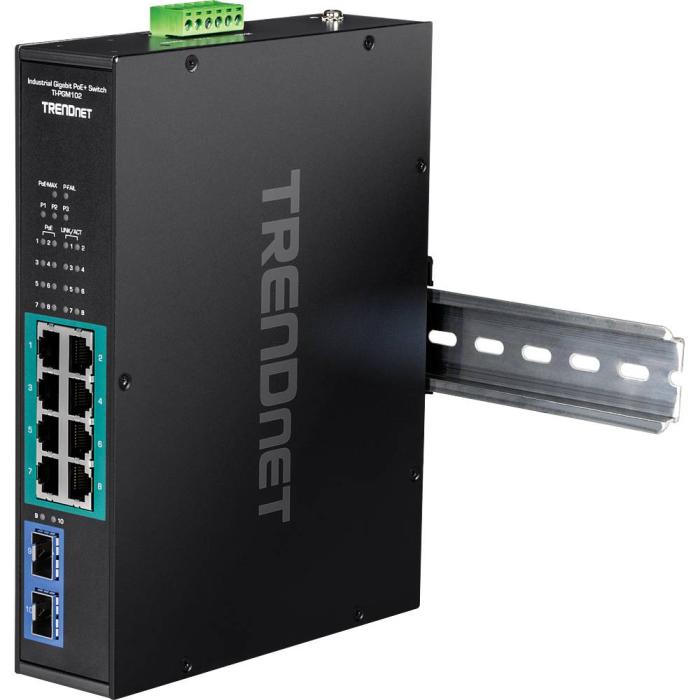

- DIN rail mounting: Yes
Performance
- Mean time between failures (MTBF): 1000000 h
Power
- Power source: DC
- Power supply included: No
- Redundant power supply (RPS) support: Yes

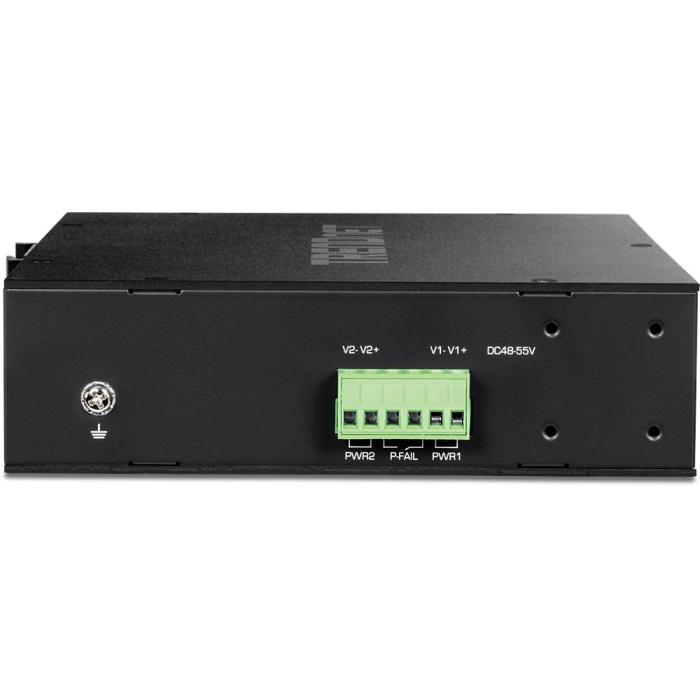

- DC input voltage: 48 - 55 V
- Power consumption (max): 6.38 W
- Power protection features: Overload
Power over Ethernet (PoE)
- Power over Ethernet (PoE): Yes
- Power over Ethernet plus (PoE+) ports quantity: 8
- Total Power over Ethernet (PoE) budget: 240 W
Operational conditions
- Operating temperature (T-T): -20 - 65 °C
- Operating relative humidity (H-H): 0 - 95%
Weight & dimensions
- Width: 210 mm
- Depth: 160 mm
- Height: 45 mm
- Weight: 1.1 kg
Packaging content
- Quick start guide: Yes
- Rack mount kit: Yes
