Description

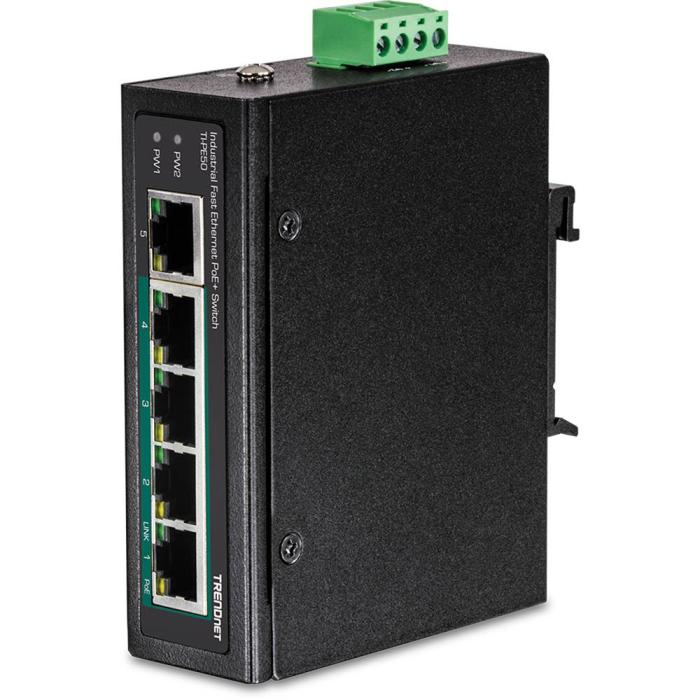

The Trendnet TI-PE50 switch, in its black finish and with five Fast Ethernet (10/100) ports, incorporates PoE power to simplify the cabling of network devices. This unmanaged model offers auto-negotiation and full duplex support on all its ports, with a switching capacity of 1 Gbit/s and a MAC table of 1024 entries. Its metal housing allows wall mounting and includes LED indicators to verify the status of connections. Compatible with IEEE 802.3, 802.3af, 802.3at, 802.3u, and 802.3x standards, it works with 10BASE-T and 100BASE-TX cabling for easy integration into small networks.
Specifications
Management features
- Switch type: Unmanaged
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 5
- Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100)
- Fast Ethernet (copper) ports quantity: 5
Network
- Networking standards: IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
- 10G support: No
- Copper ethernet cabling technology: 10BASE-T, 100BASE-TX
- Full duplex: Yes
- Auto-negotiation: Yes
- MAC address auto-learning supported: Yes
- MAC address auto-aging supported: Yes
Data transmission
- Switching capacity: 1 Gbit/s
- Forwarding rate: 0.1488 Mpps
- MAC address table: 1024 entries
- Store-and-forward: Yes
Design
- Rack mounting: No
- Product colour: Black
- Housing material: Metal

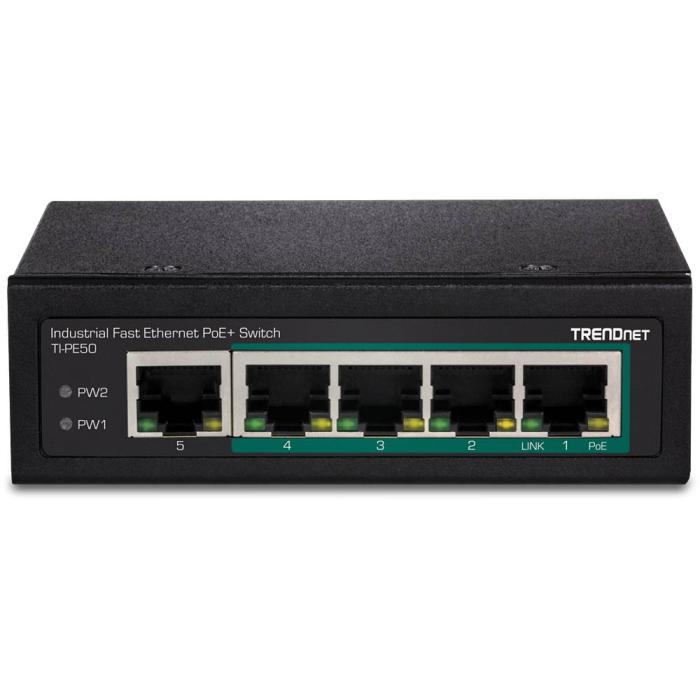

- LED indicators: Yes
- International Protection (IP) code: IP30

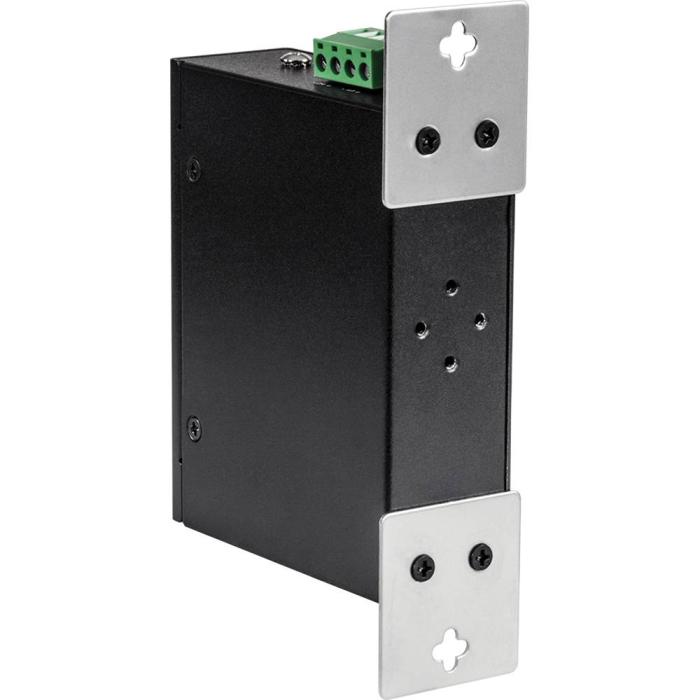

- Wall mountable: Yes

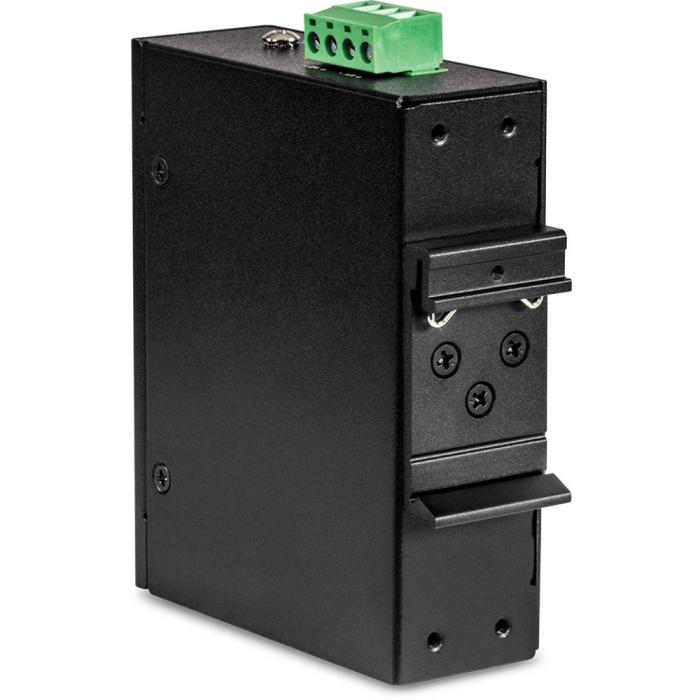

- DIN rail mounting: Yes
Performance
- Mean time between failures (MTBF): 708903 h
Power
- Redundant power supply (RPS) support: Yes

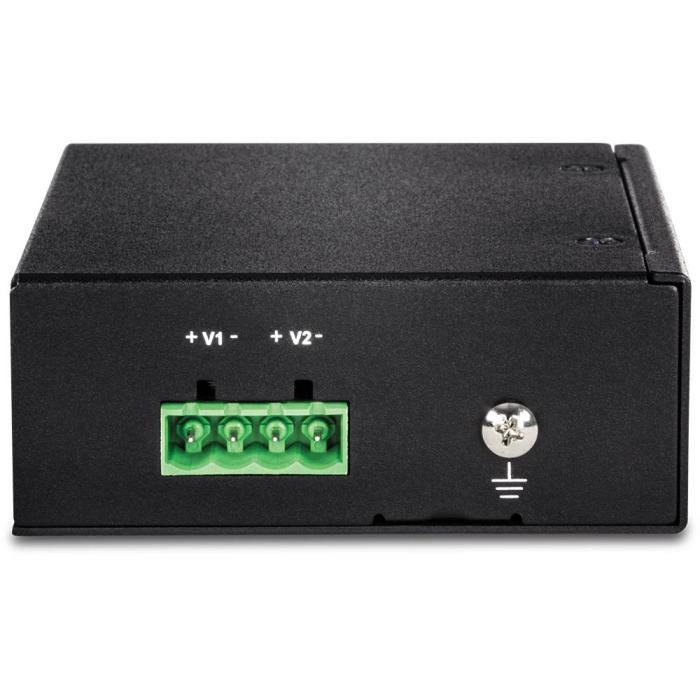

- DC input voltage: 48 - 56 V
- Power consumption (max): 2.24 W
- Power protection features: Overload
Power over Ethernet (PoE)
- Power over Ethernet (PoE): Yes
- Power over Ethernet plus (PoE+) ports quantity: 4
- Total Power over Ethernet (PoE) budget: 90 W
Operational conditions
- Operating temperature (T-T): -40 - 75 °C
Weight & dimensions
- Width: 103 mm
- Depth: 82 mm
- Height: 31 mm
- Weight: 160 g
Packaging content
- Quick start guide: Yes
Certificates
- Certification: CE, FCC
Logistics data
- Harmonized System (HS) code: 85176990
