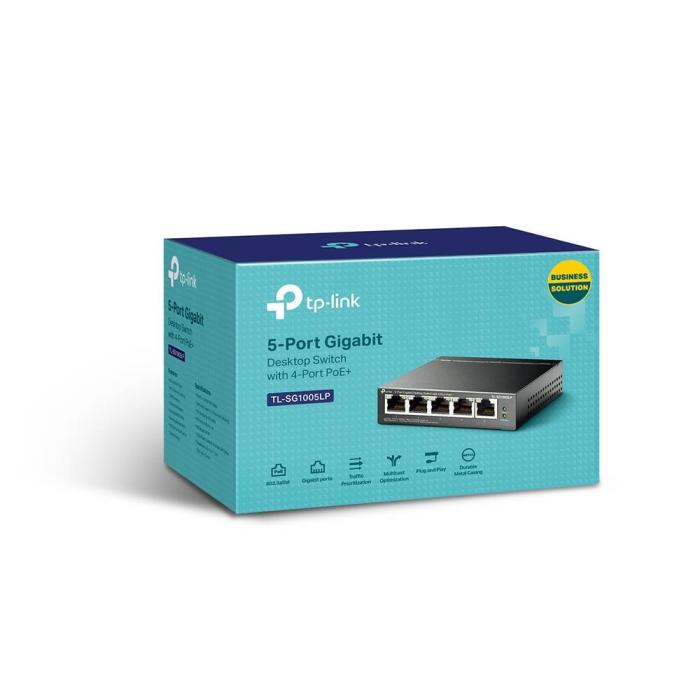

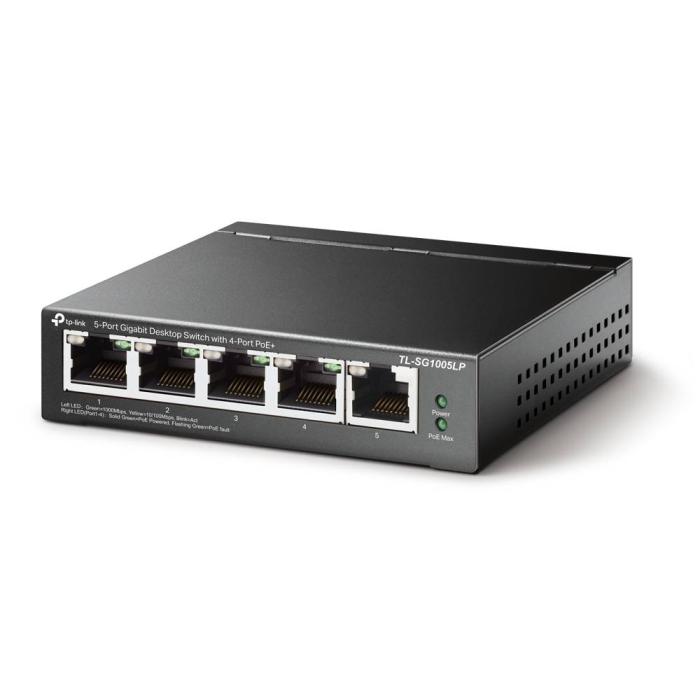

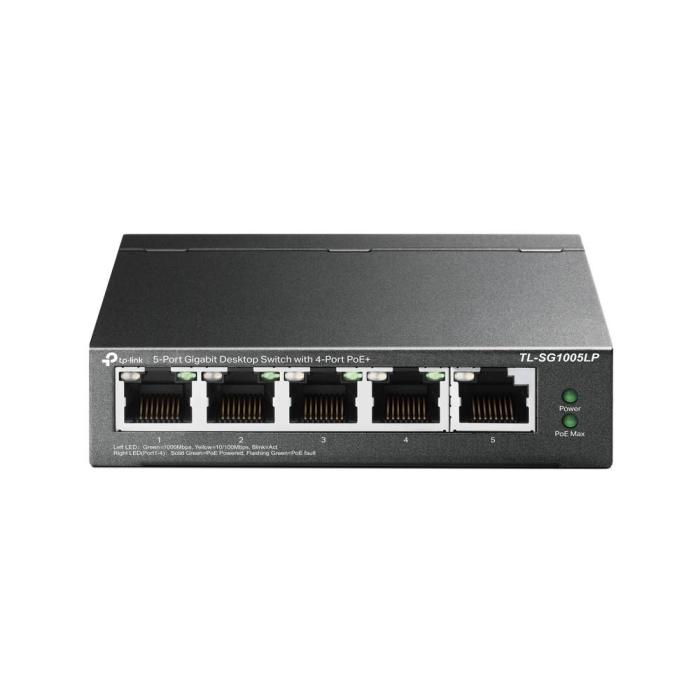

TP-Link TL-SG1005LP network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

$29.52
$29.52 without VAT

More info

Brand: TP-LINK
SKU: 86166 PRC: 301690 EAN: 6935364052720 PN: TL-SG1005LP

Description

TP-Link TL-SG1005LP, Unmanaged, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Wall mountable

Specifications

Management features

  • Switch type: Unmanaged
  • Quality of Service (QoS) support: Yes

Ports & interfaces

  • Basic switching RJ-45 Ethernet ports quantity: 5
  • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
  • Gigabit Ethernet (copper) ports quantity: 5

Network

  • Networking standards: IEEE 802.1p, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
  • 10G support: No
  • Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
  • Cable types supported: Cat3, Cat4, Cat5, Cat5e, Cat6
  • Flow control support: Yes
  • Auto MDI/MDI-X: Yes
  • Auto-negotiation: Yes
  • MAC address auto-learning supported: Yes
  • MAC address auto-aging supported: Yes

Data transmission

  • Switching capacity: 10 Gbit/s
  • Forwarding rate: 7.44 Mpps
  • MAC address table: 2000 entries
  • Store-and-forward: Yes
  • Jumbo frames support: Yes
  • Jumbo frames: 16000

Security

  • IGMP snooping: Yes

Design

  • Rack mounting: No
  • Stackable: No
  • Product colour: Black
  • LED indicators: Yes
  • Wall mountable: Yes

Performance

  • Maximum cable length: 100 m
  • Fanless: Yes

Power

  • Power source: DC/PoE
  • Power supply included: Yes
  • AC input voltage: 100 - 240 V
  • AC input frequency: 50/60 Hz
  • DC input voltage: 53.5 V
  • Input current: 0.81 A
  • Power consumption (max): 47.5 W

Power over Ethernet (PoE)

  • Power over Ethernet (PoE): Yes
  • Power over Ethernet plus (PoE+) ports quantity: 4
  • Total Power over Ethernet (PoE) budget: 40 W

Operational conditions

  • Operating temperature (T-T): 0 - 40 °C
  • Storage temperature (T-T): -40 - 70 °C
  • Operating relative humidity (H-H): 10 - 90%
  • Storage relative humidity (H-H): 5 - 90%
  • Heat dissipation: 161.98 BTU/h

Weight & dimensions

  • Width: 99.8 mm
  • Depth: 98 mm
  • Height: 25 mm

Packaging content

  • User guide: Yes

Packaging data

  • Package type: Box
  • Package width: 131 mm
  • Package depth: 196 mm
  • Package height: 121 mm
  • Package weight: 730 g

Sustainability

  • Sustainability compliance: Yes

Certificates

  • Compliance certificates: CE, Federal Communications Commission (FCC), RoHS
  • Certification: FCC, CE, RoHS

Logistics data

  • Harmonized System (HS) code: 85176990
