Name: Trendnet TI-PG50 network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Brand: TRENDNET
Price: 98.07 USD
Availability: InStock

Trendnet TI-PG50 network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

$98.07

$98.07 without VAT

Amount

Brand: TRENDNET

SKU: 114643 PRC: 283340 EAN: 710931161717 PN: ti-pg50

Description

Specifications

Management features

Switch type: Unmanaged
Quality of Service (QoS) support: Yes
Configuring Location Settings (CLI): Yes
System event log: Yes
User operation log: Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 4
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

Network

Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
10G support: No
Copper ethernet cabling technology: 1000BASE-T
Port mirroring: Yes
Full duplex: Yes
IP routing: Yes
Policy-based routing: Yes
Flow control support: Yes
Link aggregation: Yes
Auto MDI/MDI-X: Yes
Ethernet LAN data rates: 10,100,480,800,1000 Mbit/s
Auto-negotiation: Yes
VLAN support: Yes

Data transmission

Switching capacity: 10 Gbit/s
Forwarding rate: 7.44 Mpps
MAC address table: 2000 entries
Store-and-forward: Yes
Static route: Yes
Jumbo frames support: Yes
Jumbo frames: 9000
Packet buffer memory: 0.128 MB

Security

DHCP features: DHCP client, DHCP server
Access Control List (ACL): Yes
IGMP snooping: Yes
IP-MAC-Port binding: Yes
Password protection: Yes

Design

Rack mounting: Yes
Stackable: No
Product colour: Black
LED indicators: Yes

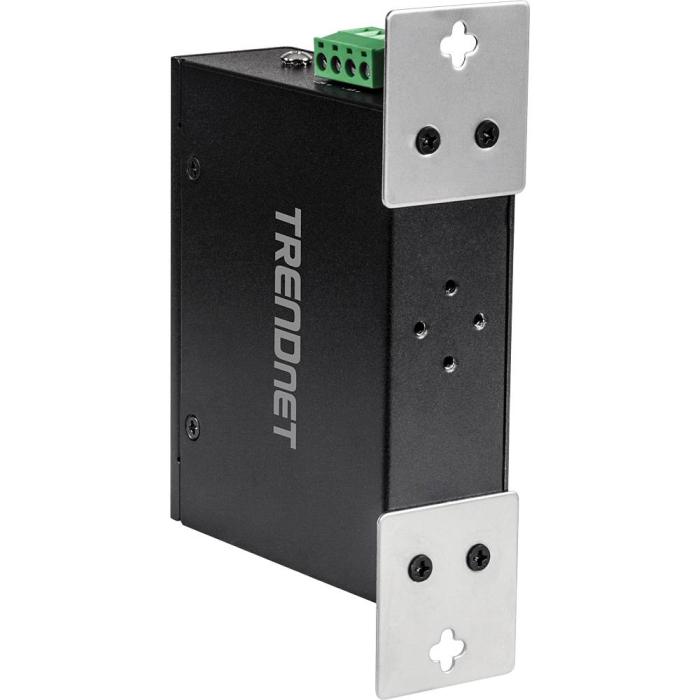

Wall mountable: Yes

Performance

Mean time between failures (MTBF): 538451 h

Power

Power supply included: No
DC input voltage: 48 - 56 V
Power consumption (max): 2.24 W

Power over Ethernet (PoE)

Power over Ethernet (PoE): Yes
Power over Ethernet (PoE) type supported: Active PoE
Power over Ethernet plus (PoE+) ports quantity: 4
Power over Ethernet (PoE) power per port: 30 W
Total Power over Ethernet (PoE) budget: 120 W

Operational conditions

Operating temperature (T-T): -40 - 75 °C
Operating relative humidity (H-H): 10 - 95%

Weight & dimensions

Width: 104 mm
Depth: 32 mm
Height: 82 mm
Weight: 190 g

Packaging content

Quick start guide: Yes

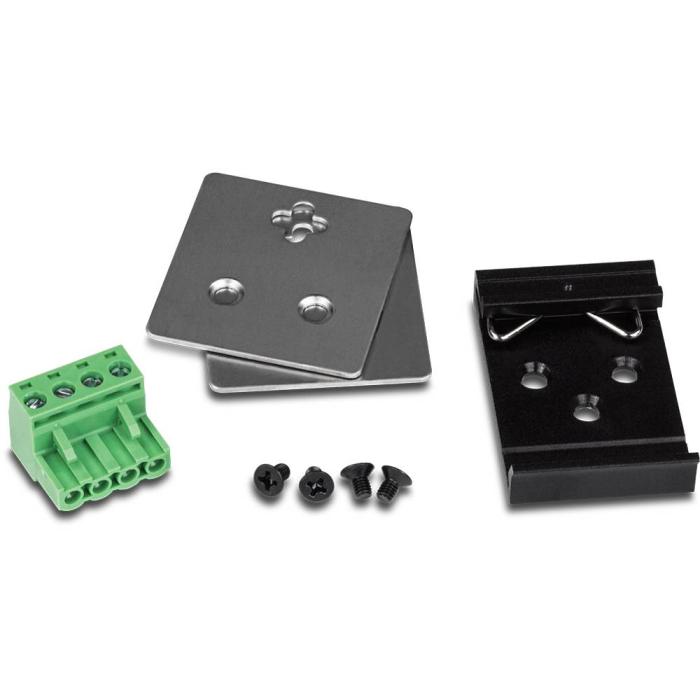

Rack mount kit: Yes

Certificates

Certification: CE, FCC, UL, Shock (IEC 60068-2-27), Freefall (IEC 60068-2-32), Vibration (IEC 60068-2-6), IEC 61000-4-2, IEC 61000-4-4, IEC 610

Logistics data

Harmonized System (HS) code: 85176990
