Description

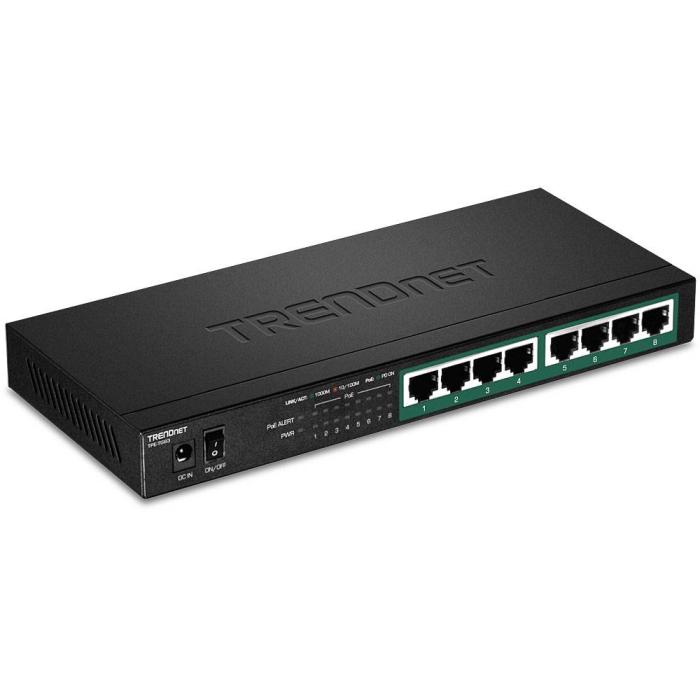

Connect up to eight network devices using the Trendnet TPE-TG83 switch, an unmanaged model with Gigabit Ethernet ports (10/100/1000) and PoE support to power cameras or access points without the need for additional power sources. Its black metal housing offers durability, while the LED indicators for activity, link, PoE, and power make it easy to monitor network status. With a switching capacity of 16 Gbit/s and a MAC address table of 4000 entries, it manages traffic efficiently and supports jumbo frames up to 9000 bytes to optimise large transfers. Compatible with IEEE 802.3, 802.3ab, 802.3af, 802.3at, 802.3p, 802.3u, and 802.
Specifications
Management features
- Switch type: Unmanaged
- Quality of Service (QoS) support: Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 8
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Network
- Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3p, IEEE 802.3u, IEEE 802.3x
- 10G support: No
- Cable types supported: Cat5e
- Full duplex: Yes
- Half duplex: Yes
Data transmission
- Switching capacity: 16 Gbit/s
- Forwarding rate: 11.9 Mpps
- MAC address table: 4000 entries
- Jumbo frames support: Yes
- Jumbo frames: 9000
- Packet buffer memory: 0.192 MB
Design

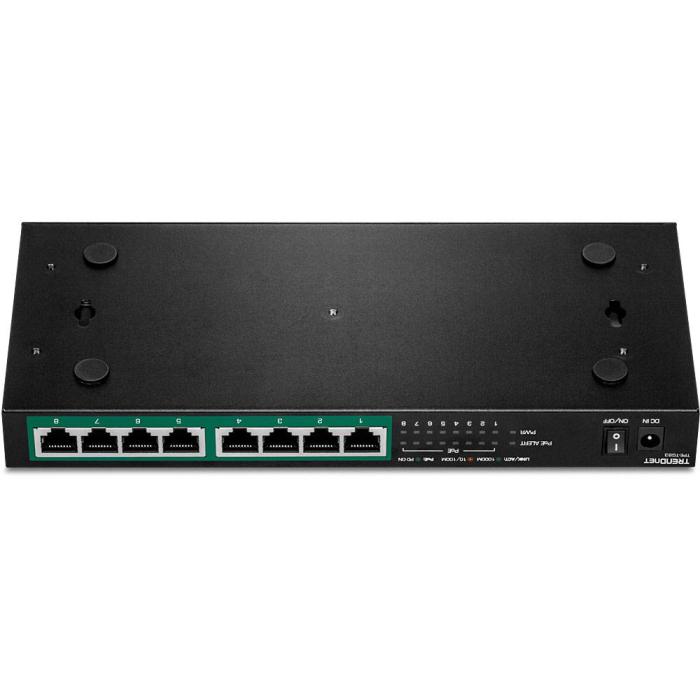

- Wall mountable: Yes
- Product colour: Black
- Housing material: Metal

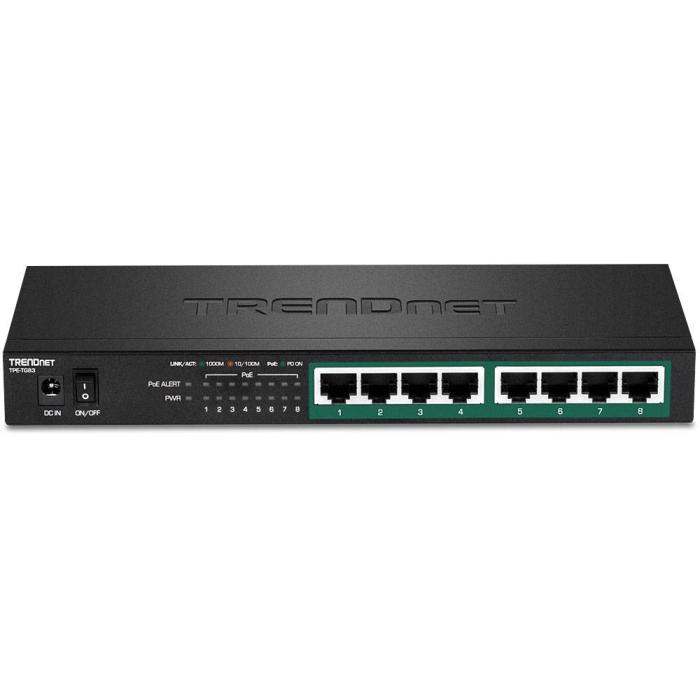

- LED indicators: Activity, Link, PoE, Power
Performance
- Fanless: Yes
Power
- Power source: AC/DC
- AC input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
- Input current: 2.5 A
Power over Ethernet (PoE)
- Power over Ethernet (PoE): Yes
- Power over Ethernet plus (PoE+) ports quantity: 8
- Power over Ethernet (PoE) power per port: 30 W
- Total Power over Ethernet (PoE) budget: 65 W
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Operating relative humidity (H-H): 0 - 90%
Weight & dimensions
- Width: 240 mm
- Depth: 105 mm
- Height: 27 mm
- Weight: 580 g
Packaging content

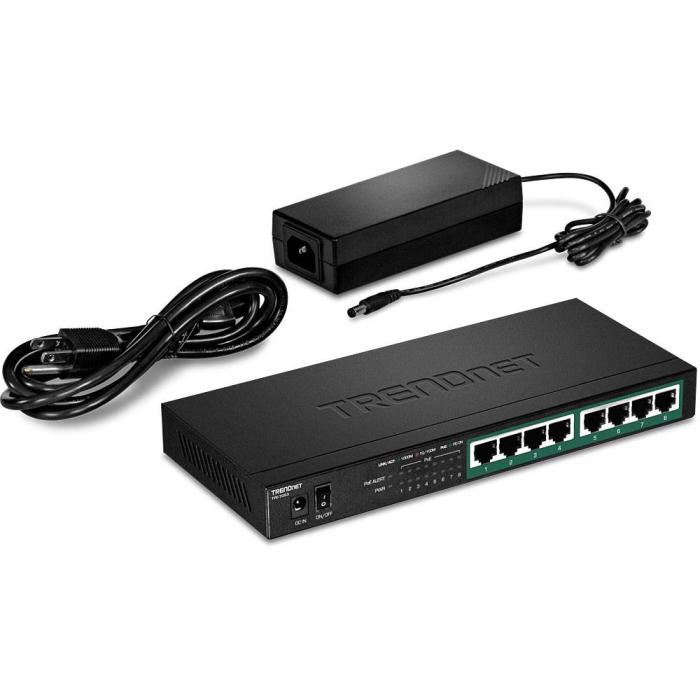

- Cables included: DC
- Quick start guide: Yes
Certificates
- Certification: CE, FCC, LVD
Logistics data
- Harmonized System (HS) code: 85176990
