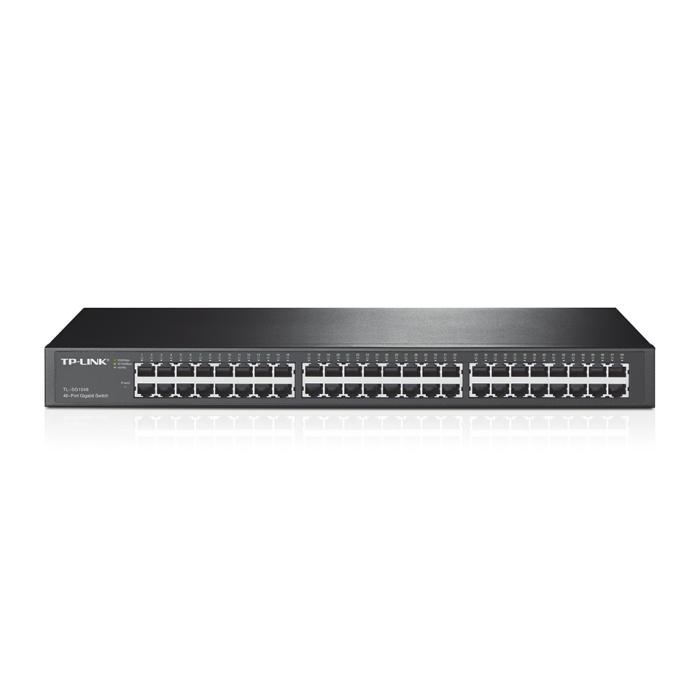

TP-Link 48-Port Gigabit Rackmount Network Switch

272.00 €
224.79 € without VAT

More info

Brand: TP-LINK
SKU: 71277 PRC: 5890 EAN: 6935364020637 PN: TL-SG1048

Description

TP-Link 48-Port Gigabit Rackmount Network Switch, Unmanaged, Gigabit Ethernet (10/100/1000), Full duplex, Rack mounting, 1U

Specifications

Management features

  • Switch type: Unmanaged

Ports & interfaces

  • Basic switching RJ-45 Ethernet ports quantity: 48
  • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
  • Gigabit Ethernet (copper) ports quantity: 48

Network

  • Networking standards: IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
  • Copper ethernet cabling technology: 1000BASE-T, 100BASE-TX, 10BASE-T
  • Full duplex: Yes
  • Half duplex: Yes
  • Auto MDI/MDI-X: Yes
  • Auto-negotiation: Yes

Data transmission

  • Supported data transfer rates: 10/100/1000 Mbps
  • Switching capacity: 96 Gbit/s
  • Forwarding rate: 71.4 Mpps
  • MAC address table: 16000 entries
  • Store-and-forward: Yes
  • Maximum data transfer rate: 1 Gbit/s
  • Jumbo frames support: Yes
  • Jumbo frames: 12000

Protocols

  • Supported network protocols: CSMA/CD, TCP/IP

Design

  • Rack mounting: Yes
  • Form factor: 1U
  • Product colour: Black
  • LED indicators: Yes
  • Compatible products: FCC, CE

Power

  • Power source: AC
  • Power supply included: Yes
  • AC input voltage: 100 - 240 V
  • AC input frequency: 50 - 60 Hz
  • Power consumption (max): 32.29 W

Other features

  • Dimensions (WxDxH): 440 x 360 x 44 mm
  • Connectivity technology: Wired
  • Bandwidth: 96 Gbit/s
  • Connectivity LEDs: Yes
  • Dimensions (W x D x H) (imperial): 439.4 x 360.7 x 43.2 mm (17.3 x 14.2 x 1.7")

Operational conditions

  • Operating temperature (T-T): 32 - 104 °F
  • Storage temperature (T-T): -40 - 70 °C
  • Operating relative humidity (H-H): 10 - 90%
  • Storage relative humidity (H-H): 5 - 90%
  • Heat dissipation: 110.17 BTU/h

Weight & dimensions

  • Width: 440 mm
  • Depth: 220 mm
  • Height: 44 mm

Packaging content

  • Cables included: AC
  • User guide: Yes
  • Rack mount kit: Yes

Packaging data

  • Package type: Box
  • Package width: 528 mm
  • Package depth: 336 mm
  • Package height: 100 mm

Logistics data

  • Harmonized System (HS) code: 85176990
