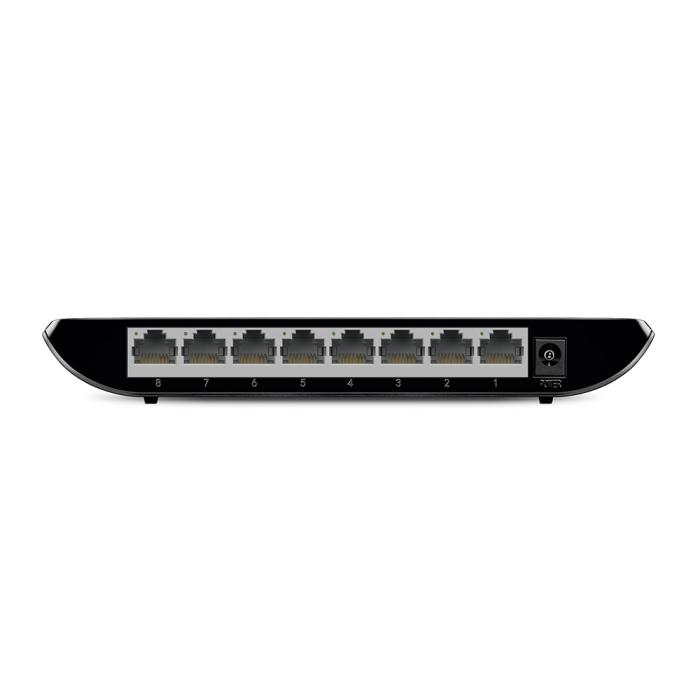

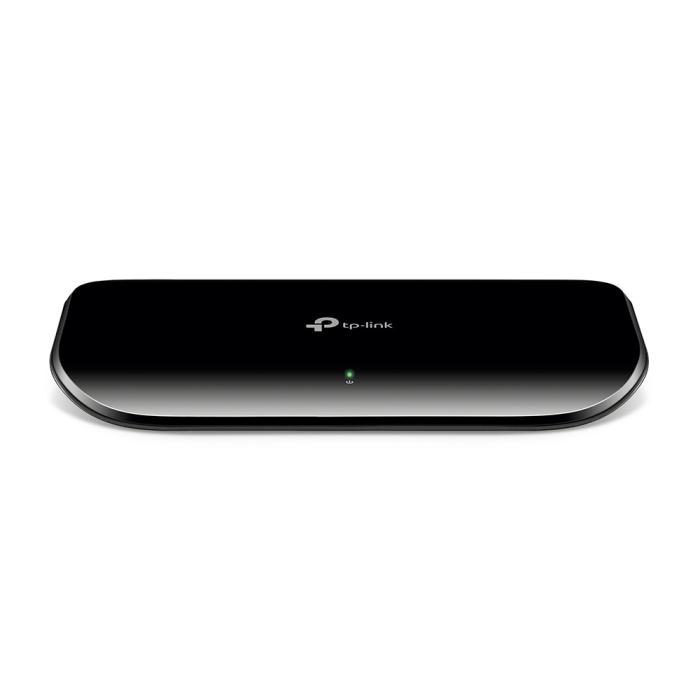

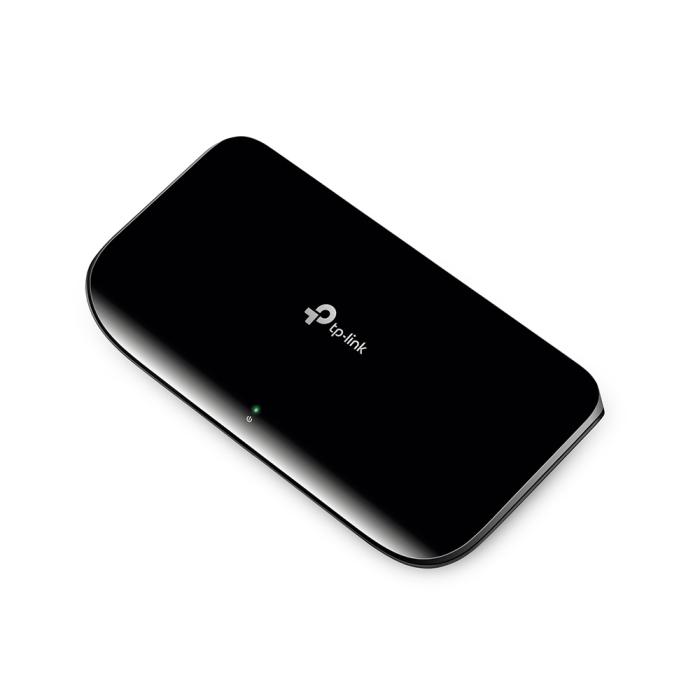

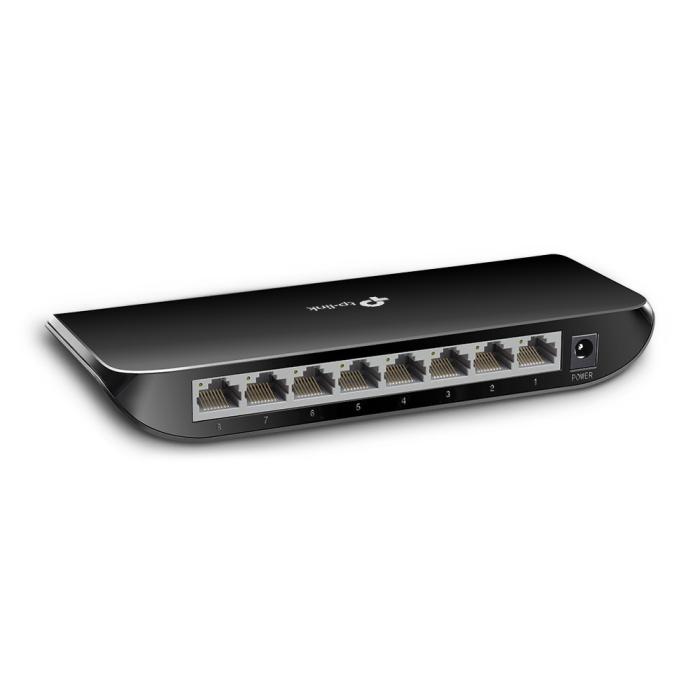

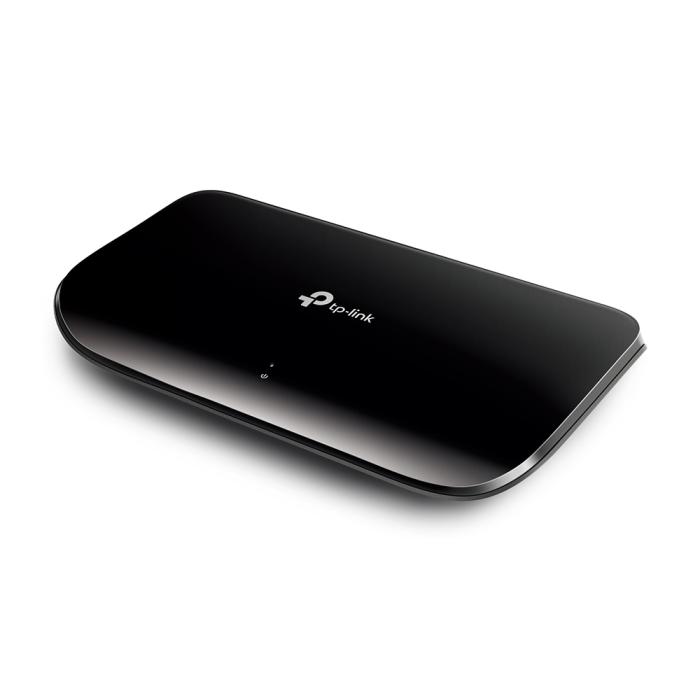

Name: TP-Link 8-Port Gigabit Desktop Network Switch
Brand: TP-LINK
Price: 20.95 USD
Availability: InStock

TP-Link 8-Port Gigabit Desktop Network Switch

$20.95

$20.95 without VAT

TP-Link 8-Port Gigabit Desktop Network Switch. More info

Amount

Brand: TP-LINK

SKU: 76120 PRC: 100054 EAN: 6935364092313 PN: TL-SG1008D V6.0

Description

Specifications

Management features

Switch type: Unmanaged

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 8
Power connector: DC-in jack

Network

Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
10G support: No
Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
Cable types supported: Cat3, Cat4, Cat5, Cat5e
Flow control support: Yes
Auto MDI/MDI-X: Yes
Ethernet LAN data rates: 10,100,480,800,1000 Mbit/s
Auto-negotiation: Yes

Data transmission

Switching capacity: 16 Gbit/s
MAC address table: 4000 entries
Store-and-forward: Yes
Jumbo frames support: Yes
Jumbo frames: 15000
Packet buffer memory: 2 MB

Design

Rack mounting: No
Stackable: No
Product colour: Black
LED indicators: Yes
Wall mountable: Yes

Performance

Maximum cable length: 100 m
Fanless: Yes

Power

Power source: DC
Power supply included: Yes
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
DC input voltage: 9 V
Input current: 0.6 A
Power consumption (max): 3.53 W

Power over Ethernet (PoE)

Power over Ethernet (PoE): No

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%
Heat dissipation: 15.8 BTU/h

Weight & dimensions

Width: 180 mm
Depth: 90 mm
Height: 25.5 mm

Packaging content

Cables included: AC
User guide: Yes

Packaging data

AC adapter included: Yes
Package type: Box
Package width: 110 mm
Package depth: 185 mm
Package height: 85 mm
Package weight: 300 g

Sustainability

Sustainability compliance: Yes

Certificates

Compliance certificates: CE, Federal Communications Commission (FCC), RoHS

Logistics data

Harmonized System (HS) code: 85176990
