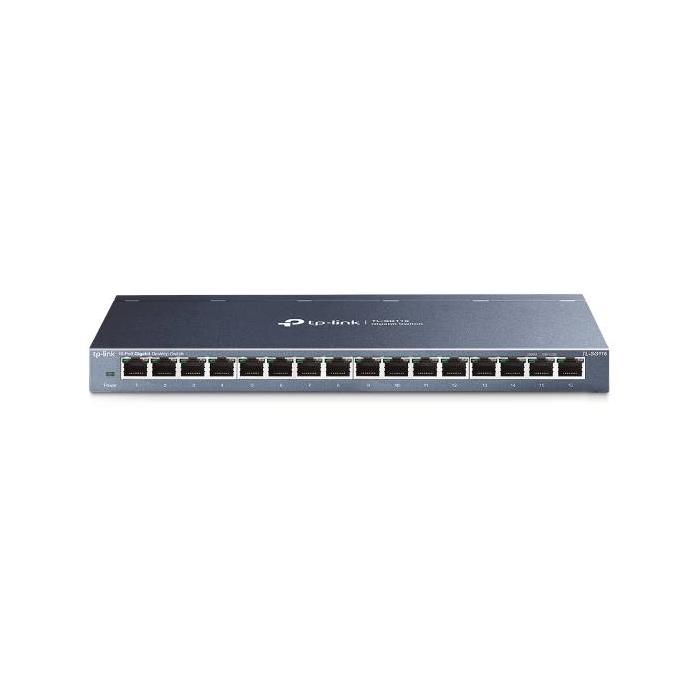

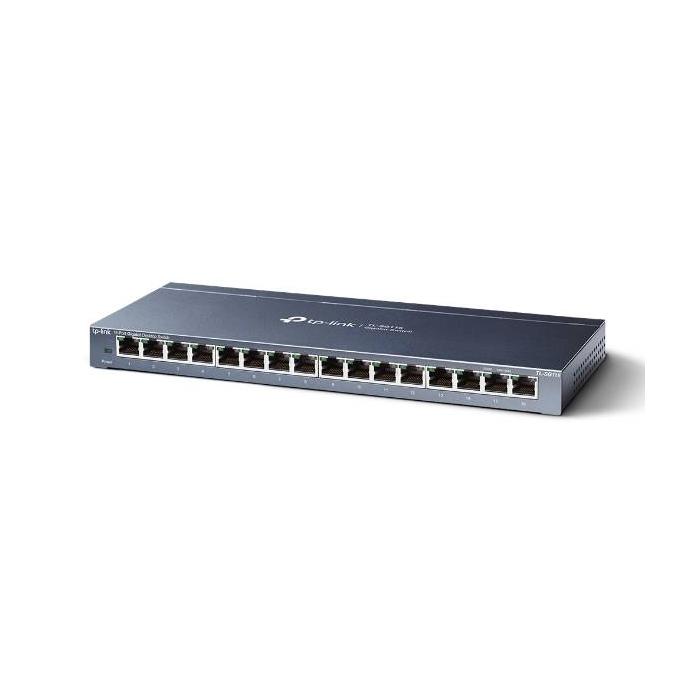

TP-Link 16-Port Gigabit Desktop Network Switch

$56.18
$56.18 without VAT

TP-Link 16-Port Gigabit Desktop Network Switch.   More info

Brand: TP-LINK
SKU: 81180 PRC: 234480 EAN: 6935364084325 PN: TL-SG116

Description

Specifications

Management features

  • Switch type: Unmanaged
  • Quality of Service (QoS) support: Yes

Ports & interfaces

  • Basic switching RJ-45 Ethernet ports quantity: 16
  • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
  • Gigabit Ethernet (copper) ports quantity: 16

Network

  • Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
  • 10G support: No
  • Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
  • Full duplex: Yes
  • Flow control support: Yes
  • Auto MDI/MDI-X: Yes
  • Auto-negotiation: Yes

Data transmission

  • Switching capacity: 32 Gbit/s
  • Forwarding rate: 23.8 Mpps
  • MAC address table: 8000 entries
  • Store-and-forward: Yes
  • Jumbo frames support: Yes
  • Jumbo frames: 10000
  • Packet buffer memory: 4.1 MB

Security

  • IGMP snooping: Yes

Design

  • Rack mounting: No
  • Product colour: Black
  • Housing material: Steel
  • LED indicators: Yes

Performance

  • Plug and Play: Yes

Power

  • Power source: DC
  • Power supply included: Yes
  • Input current: 1 A
  • Input voltage: 12 V
  • Power consumption (max): 10 W

Power over Ethernet (PoE)

  • Power over Ethernet (PoE): No

Operational conditions

  • Heat dissipation: 34.12 BTU/h
  • Operating temperature (T-T): 0 - 40 °C
  • Storage temperature (T-T): -40 - 70 °C
  • Operating relative humidity (H-H): 10 - 90%
  • Storage relative humidity (H-H): 5 - 90%

Weight & dimensions

  • Width: 286 mm
  • Depth: 111.7 mm
  • Height: 25.4 mm

Packaging content

  • Quick start guide: Yes

Packaging data

  • AC adapter included: Yes
  • Package type: Box
  • Rubber feet: Yes
  • Package width: 170 mm
  • Package depth: 412 mm
  • Package height: 70 mm
  • Package weight: 1.33 kg

Certificates

  • Certification: CE, FCC ,RoHS

Logistics data

  • Harmonized System (HS) code: 85176990
