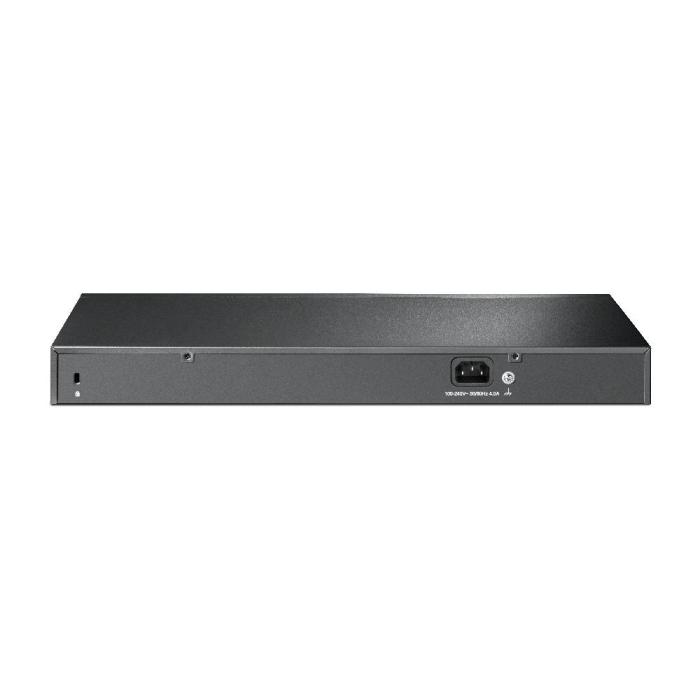

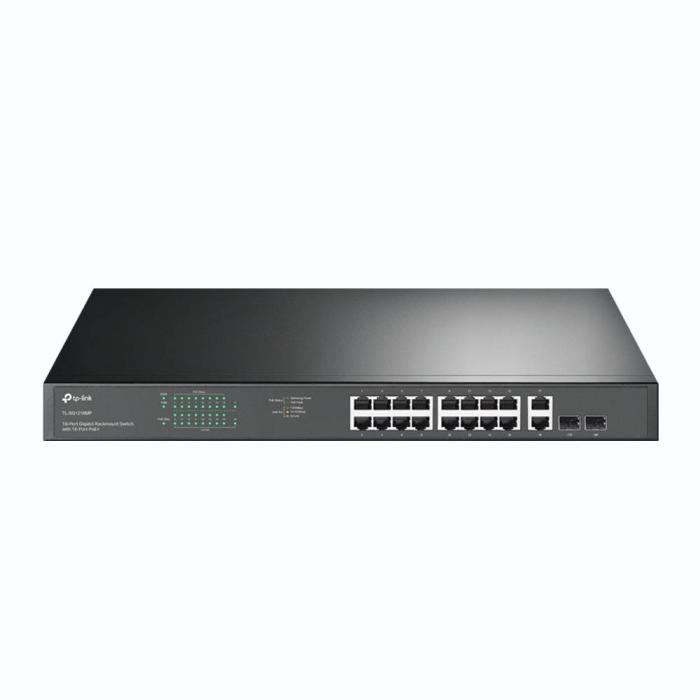

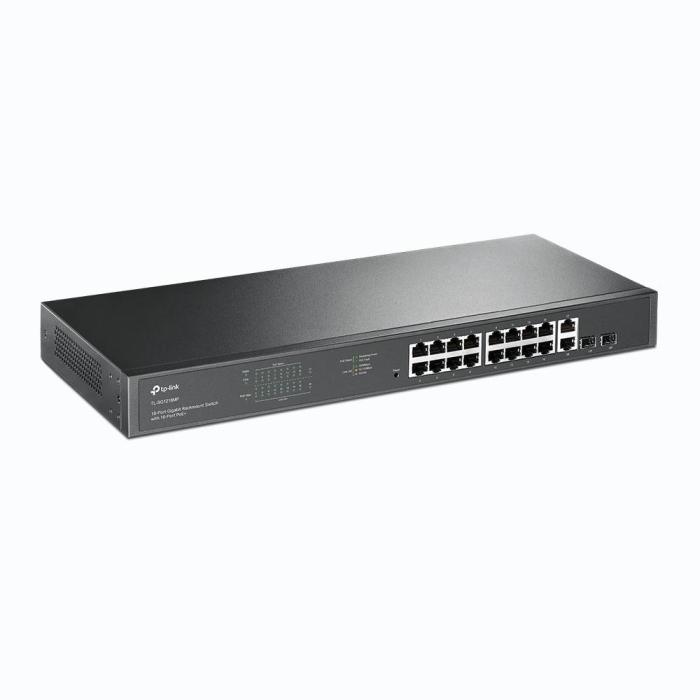

TP-Link 18-Port Gigabit Rackmount Switch with 16 PoE+

Not avaliable

TP-Link 18-Port Gigabit Rackmount Switch with 16 PoE+.   More info

Brand: TP-LINK
SKU: 86165 PRC: 301688 EAN: 6935364072162 PN: TL-SG1218MP

Description

Specifications

Management features

  • Switch type: Unmanaged
  • Quality of Service (QoS) support: Yes
  • Traffic classification: Yes

Ports & interfaces

  • Basic switching RJ-45 Ethernet ports quantity: 18
  • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
  • Gigabit Ethernet (copper) ports quantity: 18
  • Combo SFP ports quantity: 2

Network

  • Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
  • 10G support: No
  • Cable types supported: Cat3, Cat4, Cat5, Cat5e, Cat6
  • Full duplex: Yes
  • Half duplex: Yes
  • Flow control support: Yes
  • Auto MDI/MDI-X: Yes
  • Ethernet LAN data rates: 10,100,1000 Mbit/s
  • Auto-negotiation: Yes
  • MAC address auto-learning supported: Yes
  • MAC address auto-aging supported: Yes

Data transmission

  • Switching capacity: 36 Gbit/s
  • Forwarding rate: 26.78 Mpps
  • MAC address table: 8000 entries
  • Jumbo frames support: Yes
  • Jumbo frames: 10000
  • Packet buffer memory: 4.1 MB

Design

  • Rack mounting: Yes
  • Form factor: 1U
  • Product colour: Black
  • Housing material: Metal
  • LED indicators: Yes
  • Number of fans: 2 fan(s)

Power

  • Power source: AC
  • Power supply included: Yes
  • AC input voltage: 100 - 240 V
  • AC input frequency: 50 - 60 Hz
  • Power consumption (max): 286.64 W

Power over Ethernet (PoE)

  • Power over Ethernet (PoE): Yes
  • Power over Ethernet plus (PoE+) ports quantity: 16
  • Power over Ethernet (PoE) power per port: 30 W
  • Total Power over Ethernet (PoE) budget: 250 W

Operational conditions

  • Operating temperature (T-T): 0 - 50 °C
  • Storage temperature (T-T): -40 - 70 °C
  • Operating relative humidity (H-H): 10 - 90%
  • Storage relative humidity (H-H): 5 - 90%
  • Heat dissipation: 977.44 BTU/h

Weight & dimensions

  • Width: 440 mm
  • Depth: 180 mm
  • Height: 44 mm

Packaging content

  • Cables included: AC
  • Quick start guide: Yes

Packaging data

  • Package width: 250 mm
  • Package depth: 528 mm
  • Package height: 80 mm
  • Package weight: 3.05 kg

Certificates

  • Certification: CE, FCC, RoHS

Logistics data

  • Harmonized System (HS) code: 85176990
