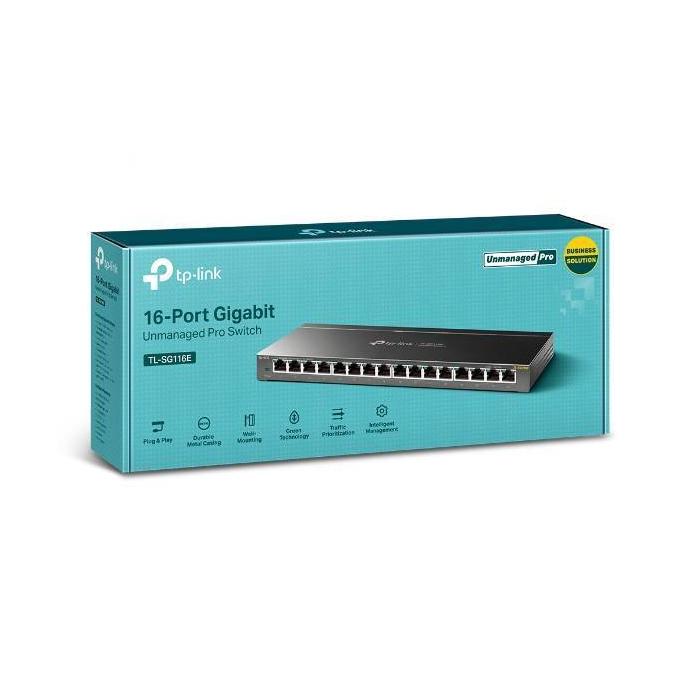

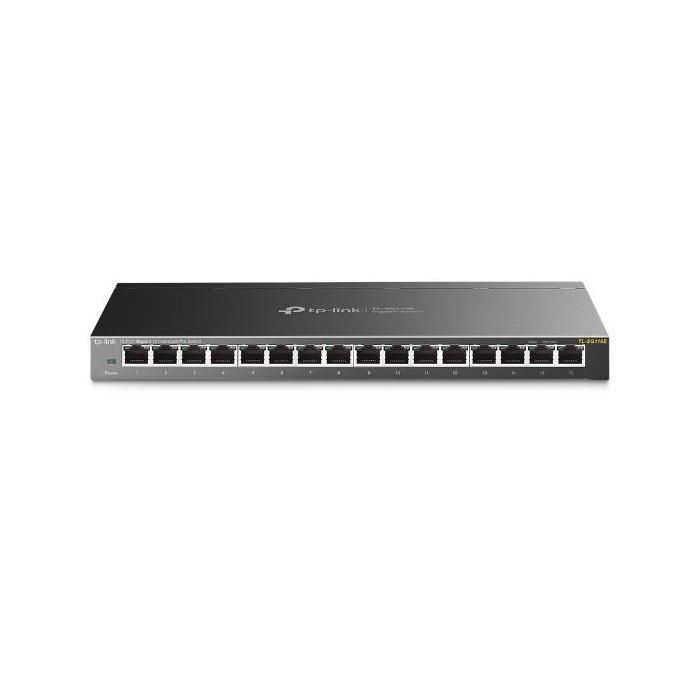

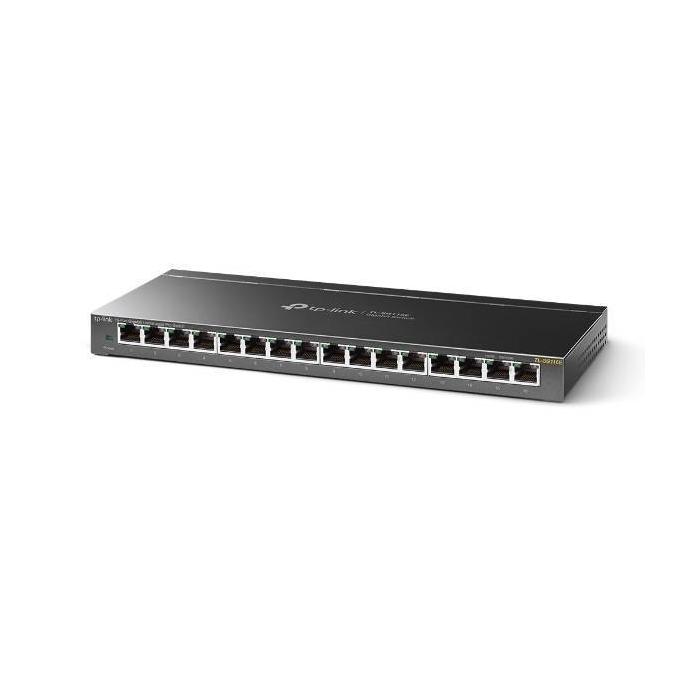

TP-Link 16-Port Gigabit Unmanaged Pro Switch

$65.70
$65.70 without VAT

TP-Link 16-Port Gigabit Unmanaged Pro Switch.   More info

Brand: TP-LINK
SKU: 81052 PRC: 232082 EAN: 6935364084301 PN: TL-SG116E

Description

Specifications

Management features

  • Switch type: Unmanaged
  • Switch layer: L2
  • Quality of Service (QoS) support: Yes

Ports & interfaces

  • Basic switching RJ-45 Ethernet ports quantity: 16
  • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
  • Gigabit Ethernet (copper) ports quantity: 16

Network

  • Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
  • 10G support: No
  • Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
  • Cable types supported: Cat3, Cat4, Cat5, Cat5e, Cat6
  • Port mirroring: Yes
  • Full duplex: Yes
  • Link aggregation: Yes
  • Broadcast storm control: Yes
  • Rate limiting: Yes
  • Auto MDI/MDI-X: Yes
  • Auto-negotiation: Yes
  • Cable length detection: Yes
  • VLAN support: Yes
  • Virtual LAN features: Tagged VLAN, Protocol-based VLAN
  • Number of VLANs: 32

Data transmission

  • Switching capacity: 32 Gbit/s
  • Forwarding rate: 23.81 Mpps
  • MAC address table: 8000 entries
  • Store-and-forward: Yes
  • Number of queues: 4
  • Jumbo frames support: Yes
  • Jumbo frames: 10000
  • Packet buffer memory: 4.1 MB

Security

  • IGMP snooping: Yes
  • Loop protection: Yes

Design

  • Rack mounting: No
  • Product colour: Black
  • Housing material: Metal
  • LED indicators: Yes

Performance

  • Plug and Play: Yes

Power

  • Power source: DC
  • Power supply included: Yes
  • Input current: 1 A
  • Input voltage: 12 V
  • Power consumption (max): 9.19 W

Power over Ethernet (PoE)

  • Power over Ethernet (PoE): No

Operational conditions

  • Operating temperature (T-T): 0 - 40 °C
  • Storage temperature (T-T): -40 - 70 °C
  • Operating relative humidity (H-H): 10 - 90%
  • Storage relative humidity (H-H): 5 - 90%
  • Heat dissipation: 31.68 BTU/h

Weight & dimensions

  • Width: 286 mm
  • Depth: 111.7 mm
  • Height: 25.4 mm

Packaging content

  • Cables included: AC
  • Quick start guide: Yes

Packaging data

  • AC adapter included: Yes
  • Rubber feet: Yes
  • Package width: 170 mm
  • Package depth: 412 mm
  • Package height: 70 mm
  • Package weight: 1.36 kg

Certificates

  • Certification: FCC, CE, RoHS

Logistics data

  • Harmonized System (HS) code: 85176990
