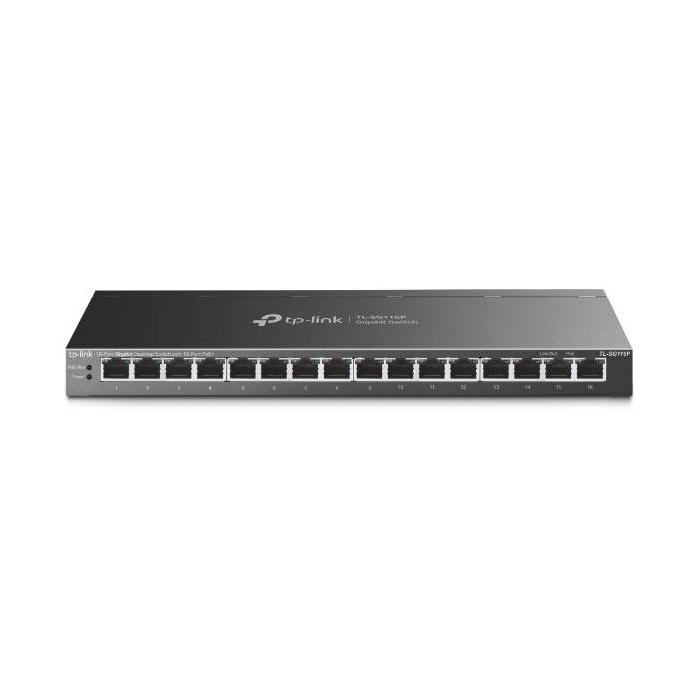

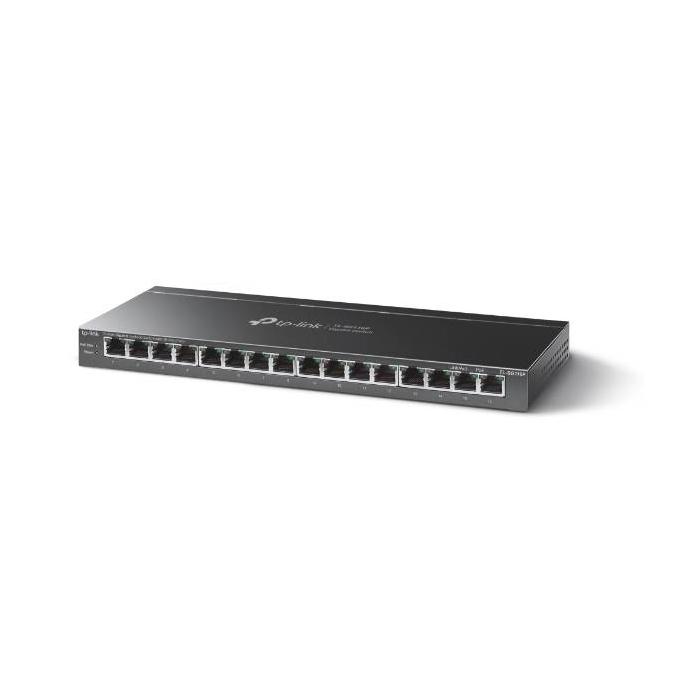

TP-Link 16-Port Gigabit Desktop Switch with 16-Port PoE+

$107.60
$107.60 without VAT

TP-Link 16-Port Gigabit Desktop Switch with 16-Port PoE+.   More info

Brand: TP-LINK
SKU: 100795 PRC: 443478 EAN: 4895252500301 PN: TL-SG116P

Description

Specifications

Management features

  • Switch type: Unmanaged
  • Quality of Service (QoS) support: Yes

Ports & interfaces

  • Basic switching RJ-45 Ethernet ports quantity: 16
  • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
  • Gigabit Ethernet (copper) ports quantity: 16

Network

  • Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
  • Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
  • Cable types supported: Cat3, Cat4, Cat5, Cat5e, Cat6
  • Port mirroring: Yes
  • Full duplex: Yes
  • Flow control support: Yes
  • Link aggregation: Yes
  • Broadcast storm control: Yes
  • Rate limiting: Yes
  • Auto MDI/MDI-X: Yes
  • Auto-negotiation: Yes
  • Cable length detection: Yes
  • VLAN support: Yes
  • Virtual LAN features: Protocol-based VLAN, Tagged VLAN
  • Number of VLANs: 32

Data transmission

  • Switching capacity: 32 Gbit/s
  • Forwarding rate: 23.81 Mpps
  • MAC address table: 8000 entries
  • Store-and-forward: Yes
  • Number of queues: 4
  • Jumbo frames support: Yes
  • Jumbo frames: 9000
  • Packet buffer memory: 4.1 MB

Security

  • IGMP snooping: Yes
  • Loop protection: Yes

Design

  • Stackable: Yes
  • Product colour: Black
  • Housing material: Metal
  • LED indicators: Yes
  • Wall mountable: Yes

Power

  • Power supply included: Yes
  • AC input voltage: 220 V
  • AC input frequency: 50 Hz
  • DC input voltage: 9 V
  • Input current: 0.6 A
  • Power consumption (typical): 11.72 W
  • Power consumption (max): 144.28 W

Power over Ethernet (PoE)

  • Power over Ethernet (PoE): Yes

Operational conditions

  • Operating temperature (T-T): 0 - 40 °C
  • Storage temperature (T-T): -40 - 70 °C
  • Operating relative humidity (H-H): 10 - 90%
  • Storage relative humidity (H-H): 5 - 90%
  • Heat dissipation: 490.55 BTU/h

Weight & dimensions

  • Width: 286 mm
  • Depth: 111.7 mm
  • Height: 25.4 mm

Packaging content

  • Quick start guide: Yes

Packaging data

  • Package width: 227 mm
  • Package depth: 434 mm
  • Package height: 70 mm
  • Package weight: 2 kg
