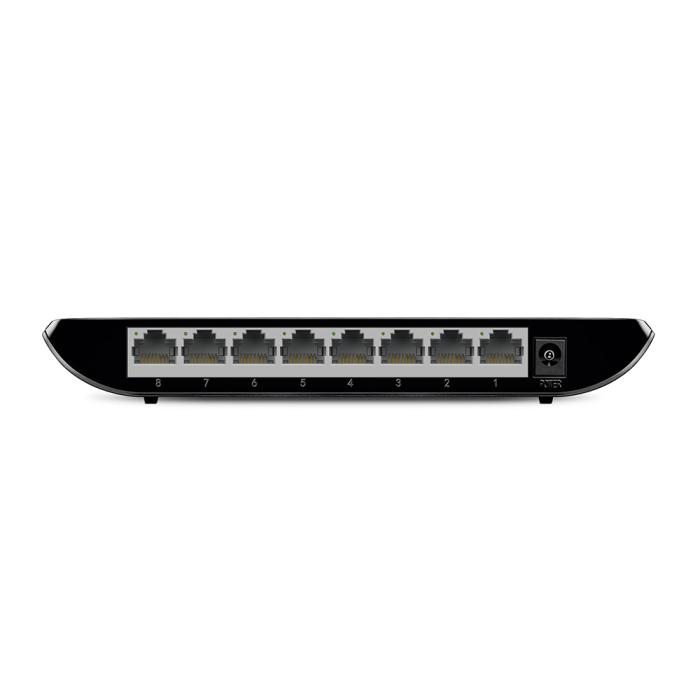

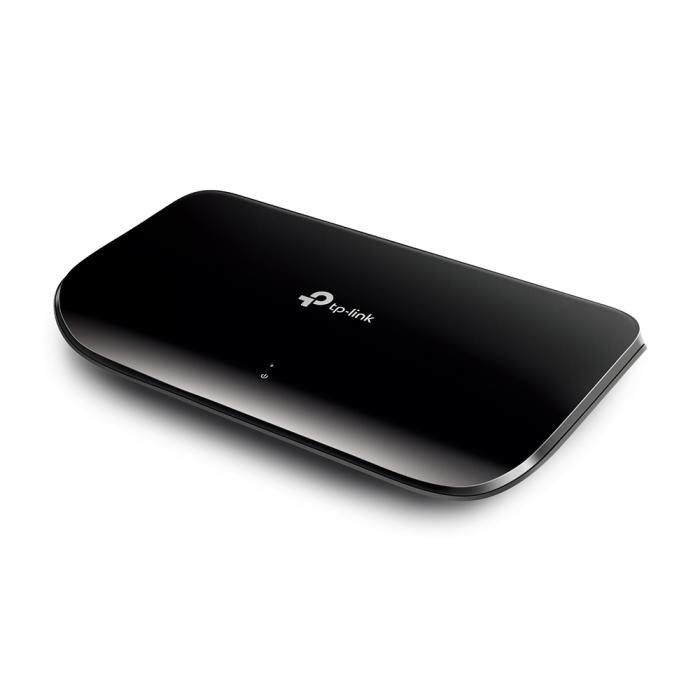

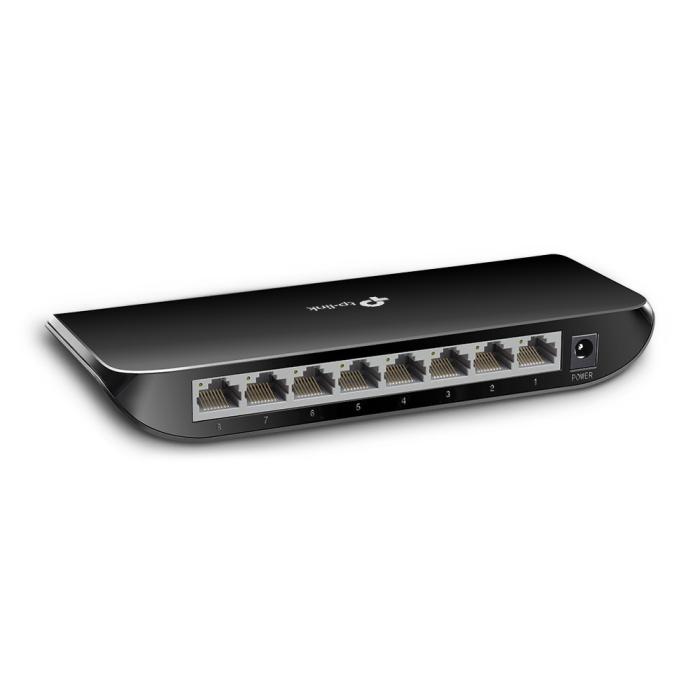

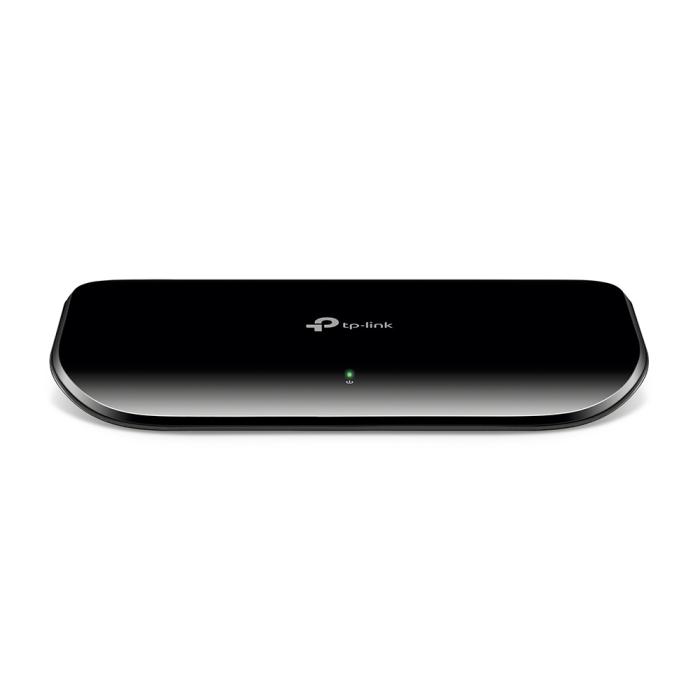

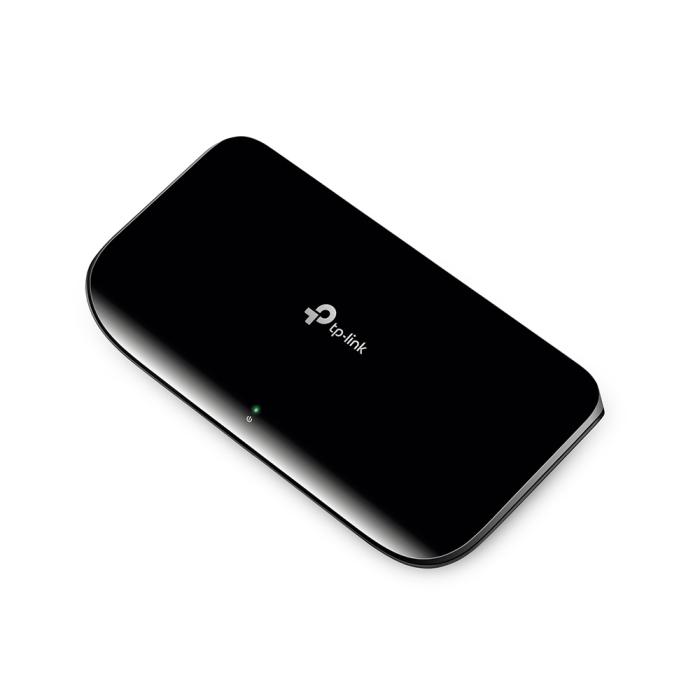

TP-Link 8-Port Gigabit Desktop Network Switch

22.00 €
18.18 € without VAT

More info

Brand: TP-LINK
SKU: 71291 PRC: 5946 EAN: 5055205185644 PN: TL-SG1008D

Description

Specifications

Management features

  • Switch type: Unmanaged

Ports & interfaces

  • Basic switching RJ-45 Ethernet ports quantity: 8
  • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
  • Gigabit Ethernet (copper) ports quantity: 8
  • Power connector: DC-in jack

Network

  • Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
  • 10G support: No
  • Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
  • Cable types supported: Cat3, Cat4, Cat5, Cat5e
  • Flow control support: Yes
  • Auto MDI/MDI-X: Yes
  • Ethernet LAN data rates: 10,100,480,800,1000 Mbit/s
  • Auto-negotiation: Yes

Data transmission

  • Switching capacity: 16 Gbit/s
  • MAC address table: 4000 entries
  • Store-and-forward: Yes
  • Jumbo frames support: Yes
  • Jumbo frames: 15000
  • Packet buffer memory: 2 MB

Design

  • Rack mounting: No
  • Stackable: No
  • Product colour: Black
  • LED indicators: Yes
  • Wall mountable: Yes

Performance

  • Maximum cable length: 100 m
  • Fanless: Yes

Power

  • Power source: DC
  • Power supply included: Yes
  • AC input voltage: 100 - 240 V
  • AC input frequency: 50/60 Hz
  • DC input voltage: 9 V
  • Input current: 0.6 A
  • Power consumption (max): 3.53 W

Power over Ethernet (PoE)

  • Power over Ethernet (PoE): No

Operational conditions

  • Operating temperature (T-T): 0 - 40 °C
  • Storage temperature (T-T): -40 - 70 °C
  • Operating relative humidity (H-H): 10 - 90%
  • Storage relative humidity (H-H): 5 - 90%
  • Heat dissipation: 15.8 BTU/h

Weight & dimensions

  • Width: 180 mm
  • Depth: 90 mm
  • Height: 25.5 mm

Packaging content

  • Cables included: AC
  • User guide: Yes

Packaging data

  • AC adapter included: Yes
  • Package type: Box
  • Package width: 110 mm
  • Package depth: 185 mm
  • Package height: 85 mm
  • Package weight: 300 g

Sustainability

  • Sustainability compliance: Yes

Certificates

  • Compliance certificates: CE, Federal Communications Commission (FCC), RoHS

Logistics data

  • Harmonized System (HS) code: 85176990
