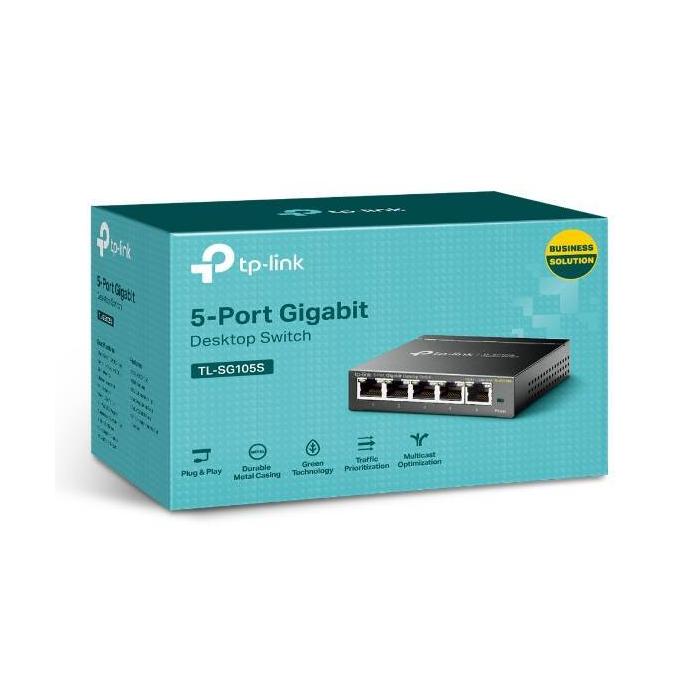

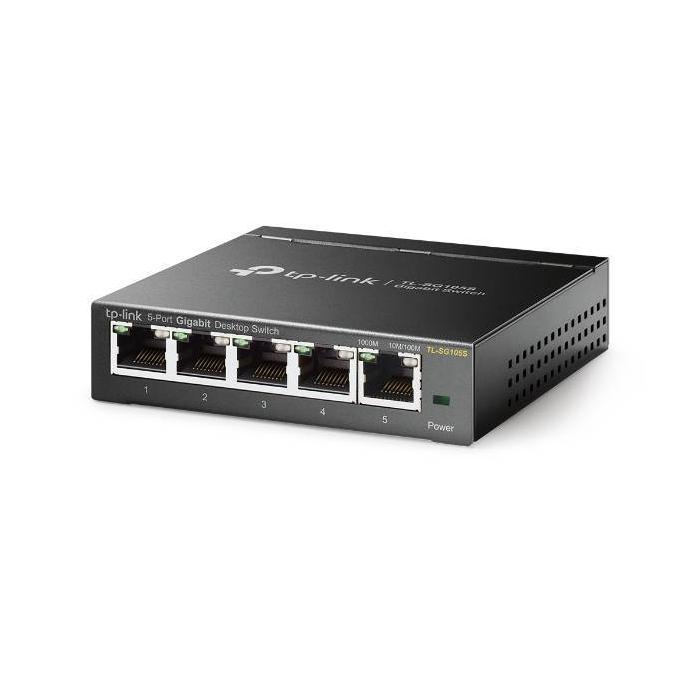

TP-Link 5-Port 10/100/1000Mbps Desktop Switch

$19.04
$19.04 without VAT

More info

Brand: TP-LINK
SKU: 81988 PRC: 246897 EAN: 6935364095024 PN: TL-SG105S

Description

TP-Link 5-Port 10/100/1000Mbps Desktop Switch, Unmanaged, Gigabit Ethernet (10/100/1000), Full duplex, Wall mountable

Specifications

Management features

  • Switch type: Unmanaged
  • Quality of Service (QoS) support: Yes

Ports & interfaces

  • Basic switching RJ-45 Ethernet ports quantity: 5
  • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
  • Gigabit Ethernet (copper) ports quantity: 5

Network

  • Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
  • 10G support: No
  • Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
  • Cable types supported: Cat3, Cat4, Cat5, Cat5e
  • Full duplex: Yes
  • Flow control support: Yes
  • Auto MDI/MDI-X: Yes
  • Auto-negotiation: Yes
  • MAC address auto-learning supported: Yes
  • MAC address auto-aging supported: Yes

Data transmission

  • Switching capacity: 10 Gbit/s
  • Forwarding rate: 7.4 Mpps
  • MAC address table: 2000 entries
  • Store-and-forward: Yes
  • Jumbo frames support: Yes
  • Jumbo frames: 16000
  • Packet buffer memory: 1 MB

Security

  • IGMP snooping: Yes

Design

  • Rack mounting: No
  • Product colour: Black
  • Housing material: Steel
  • LED indicators: Yes
  • Wall mountable: Yes

Performance

  • Plug and Play: Yes

Power

  • Power source: DC
  • Power supply included: Yes
  • Input current: 0.6 A
  • Input voltage: 5 V
  • Output voltage: 9 V
  • Output current: 0.6 A
  • Power consumption (max): 2.3 W

Power over Ethernet (PoE)

  • Power over Ethernet (PoE): No

Operational conditions

  • Operating temperature (T-T): 0 - 40 °C
  • Storage temperature (T-T): -40 - 70 °C
  • Operating relative humidity (H-H): 10 - 90%
  • Storage relative humidity (H-H): 5 - 90%
  • Heat dissipation: 7.83 BTU/h

Weight & dimensions

  • Width: 99.8 mm
  • Depth: 97.8 mm
  • Height: 25 mm

Packaging content

  • Cables included: AC
  • User guide: Yes

Packaging data

  • AC adapter included: Yes
  • Package type: Box
  • Rubber feet: Yes
  • Package width: 128 mm
  • Package depth: 125 mm
  • Package height: 92 mm

Certificates

  • Certification: CE, FCC, RoHS

Logistics data

  • Harmonized System (HS) code: 85176990
