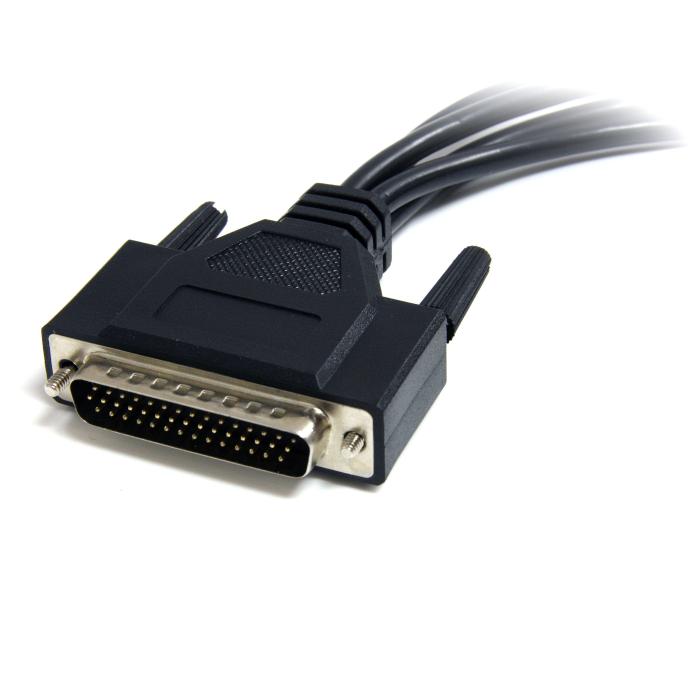

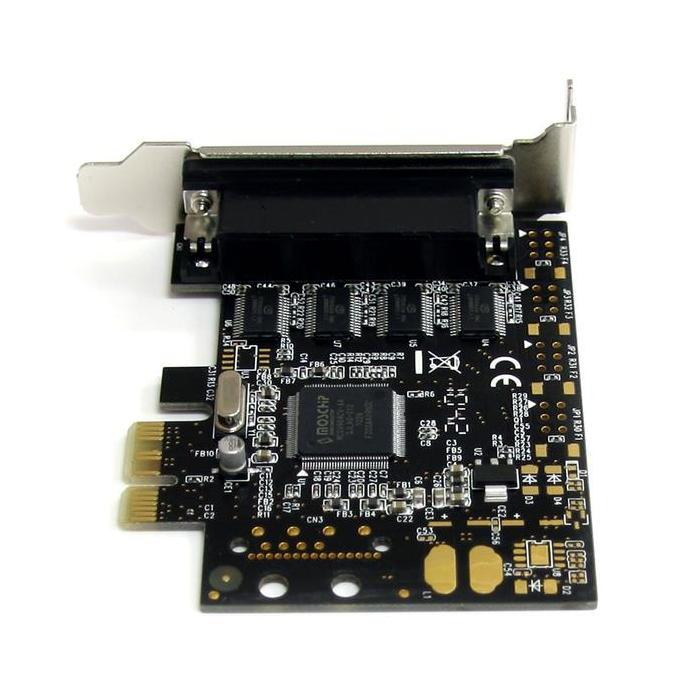

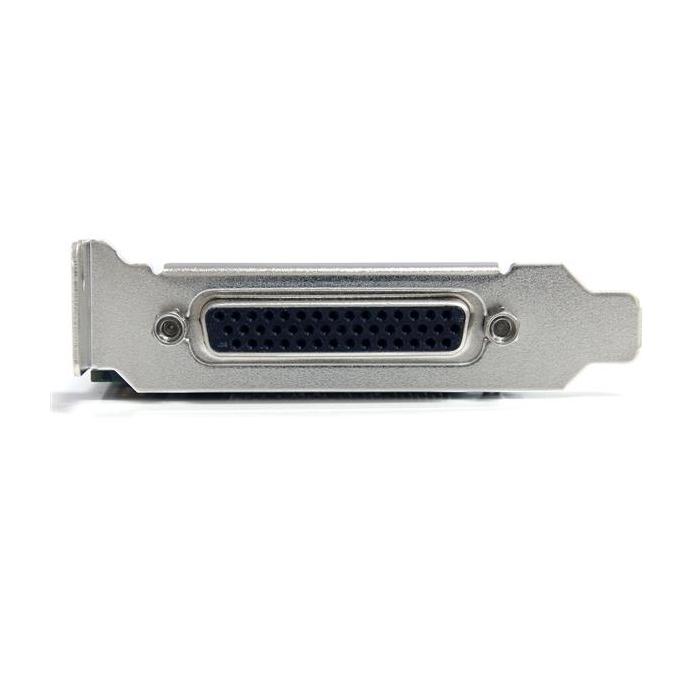

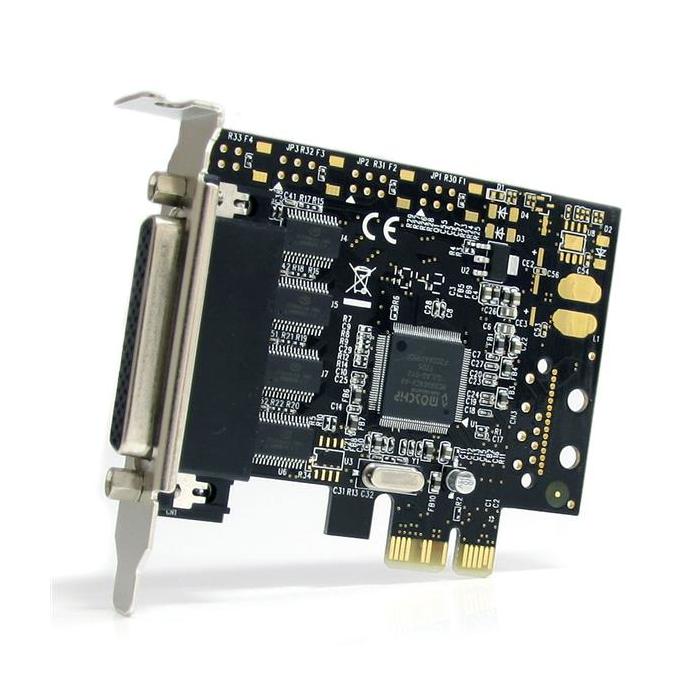

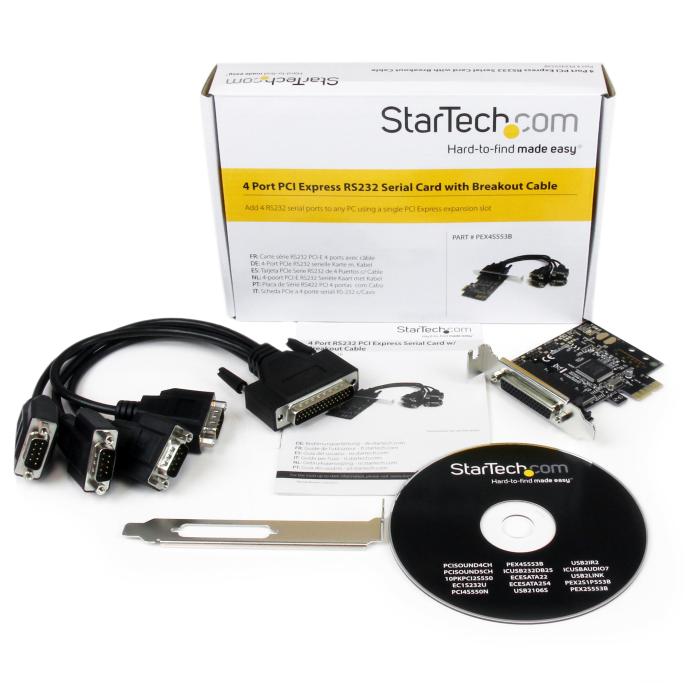

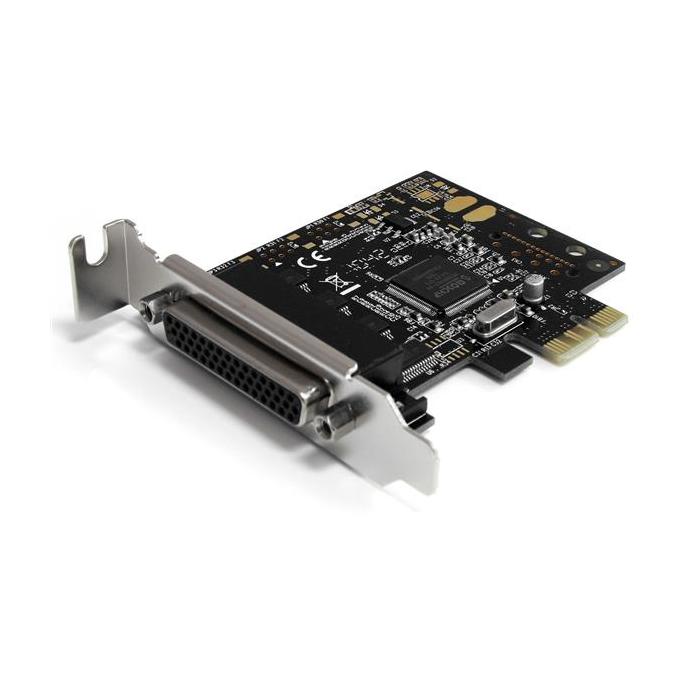

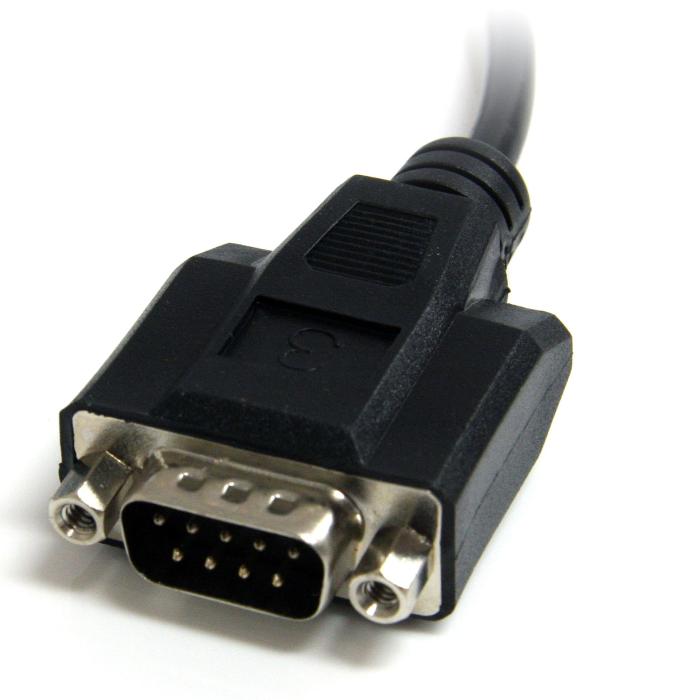

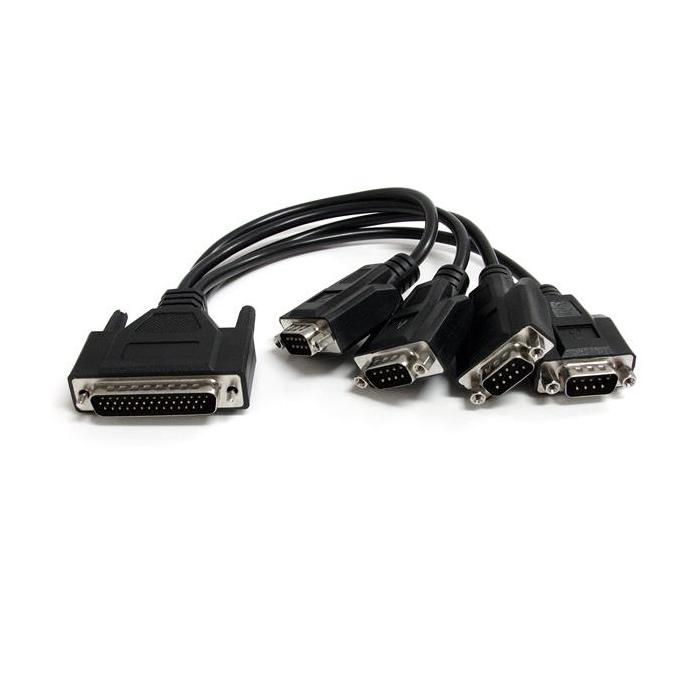

StarTech.com 4 Port RS232 PCI Express Serial Card w/ Breakout Cable

$104.74
$104.74 without VAT

StarTech.com 4 Port RS232 PCI Express Serial Card w/ Breakout Cable.   More info

Brand: STARTECH.COM
SKU: 75018 PRC: 75089 EAN: 778888168265 PN: PEX4S553B

Description

Specifications

Ports & interfaces

  • Host interface: PCIe
  • Output interface: Serial
  • Serial ports quantity: 4
  • Serial interface type: RS-232

Design

  • Internal: Yes
  • Product colour: Black
  • Certification: REACH, CE

Features

  • Chipset: ASIX Moschip MCS9904CV-AA
  • Baud rate: 230.4 Kbit/s
  • FIFO (First In, First Out): 256 B
  • Data bits: 5, 6, 7, 8
  • Parity bit: Even, Mark, No, Odd

Operational conditions

  • Operating temperature (T-T): 0 - 70 °C
  • Storage temperature (T-T): -40 - 85 °C
  • Operating relative humidity (H-H): 5 - 85%

System requirements

  • Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, W
  • Mac operating systems supported: Mac OS X 10.10 Yosemite, Mac OS X 10.3 Panther, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X
  • Linux operating systems supported: Yes
  • Server operating systems supported: Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 20
  • Other operating systems supported: DOS, Windows Embedded POSReady 2009, Windows Embedded Standard 2009, Windows XP Embedded

Technical details

  • Compliance certificates: RoHS

Weight & dimensions

  • Width: 12 mm
  • Depth: 80.5 mm
  • Height: 68 mm
  • Weight: 239 g

Packaging data

  • Cables included: Serial
  • Mounting brackets included: Yes
  • Drivers included: Yes
  • Manual: Yes
  • Package width: 208 mm
  • Package depth: 145 mm
  • Package height: 41 mm
  • Package weight: 343 g

Logistics data

  • Harmonized System (HS) code: 84733020
