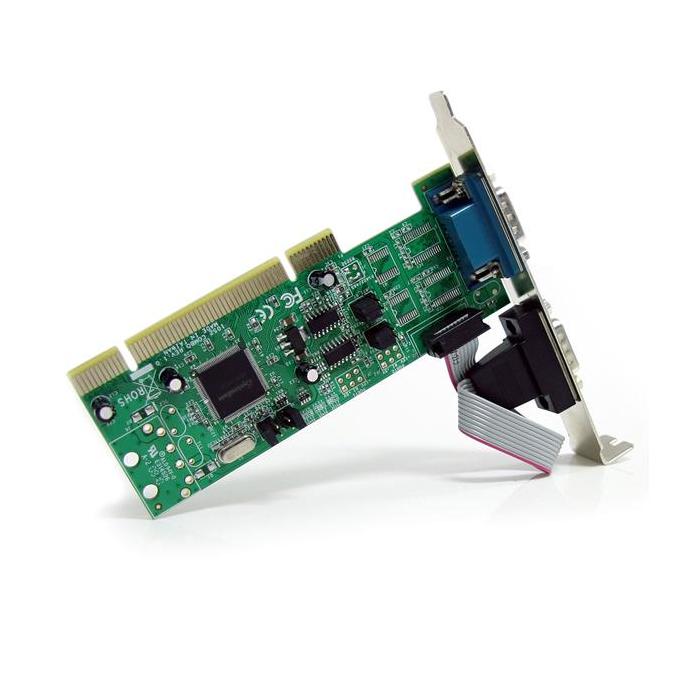

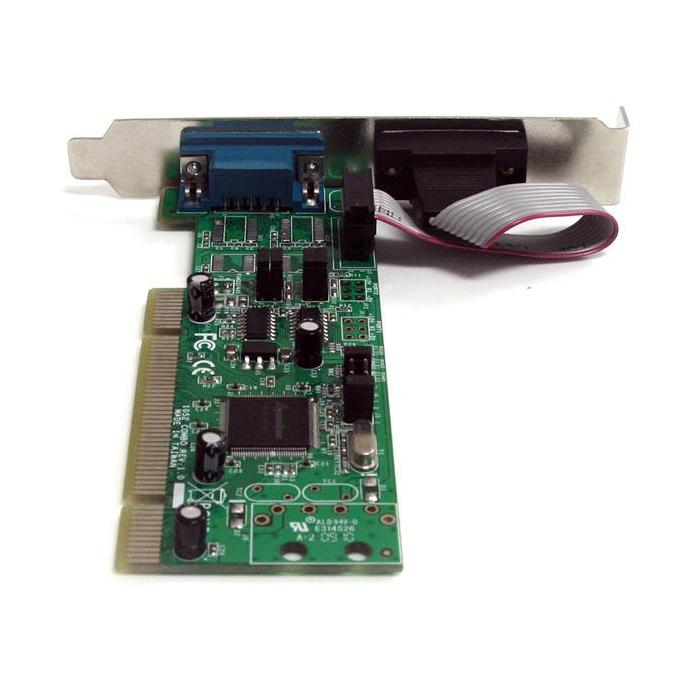

StarTech.com 2 Port PCI RS422/485 Serial Adapter Card with 161050 UART

$99.98
$99.98 without VAT

StarTech.com 2 Port PCI RS422/485 Serial Adapter Card with 161050 UART.   More info

Brand: STARTECH.COM
SKU: 75013 PRC: 75074 EAN: 65030842587 PN: PCI2S4851050

Description

Specifications

Ports & interfaces

  • Host interface: PCI/PCI-X
  • Output interface: Serial
  • Serial ports quantity: 2
  • Serial interface type: RS-422, RS-485

Design

  • Internal: Yes
  • Certification: CE, FCC

Features

  • Chipset: SystemBase -SB16C1052PCI
  • Baud rate: 128 Kbit/s
  • FIFO (First In, First Out): 256 B
  • Data bits: 5, 6, 7, 8
  • Stop bits: 1, 1.5, 2
  • Flow control support: Yes

Operational conditions

  • Operating temperature (T-T): -10 - 80 °C
  • Storage temperature (T-T): -20 - 100 °C
  • Operating relative humidity (H-H): 5 - 85%

System requirements

  • Windows operating systems supported: Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Ho
  • Server operating systems supported: Windows 2000 Server, Windows Server 2003, Windows Server 2008 R2, Windows Server 2012

Technical details

  • Compliance certificates: RoHS

Weight & dimensions

  • Width: 15 mm
  • Depth: 120 mm
  • Height: 45 mm
  • Weight: 58 g

Packaging data

  • Drivers included: Yes
  • Manual: Yes
  • Package width: 145 mm
  • Package depth: 175 mm
  • Package height: 32 mm
  • Package weight: 152 g

Logistics data

  • Harmonized System (HS) code: 84733020

Other features

  • Data transfer rate: 0.128 Mbit/s
  • Compatible operating systems: Windows 7 (32/64bit)/ Vista(32/64)/ XP(32/64), Windows Server 2008 R2/ 2003(32/64)/ 2000, Linux 2.4.x/ 2.6.x
