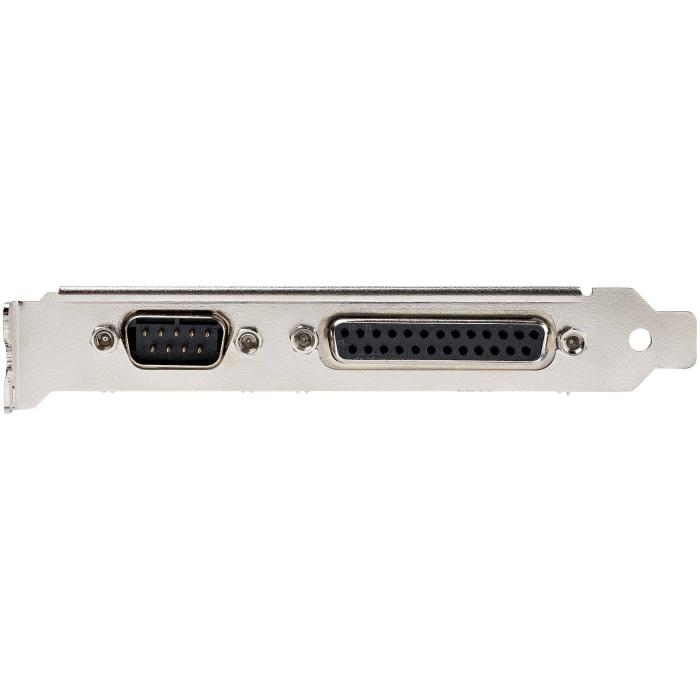

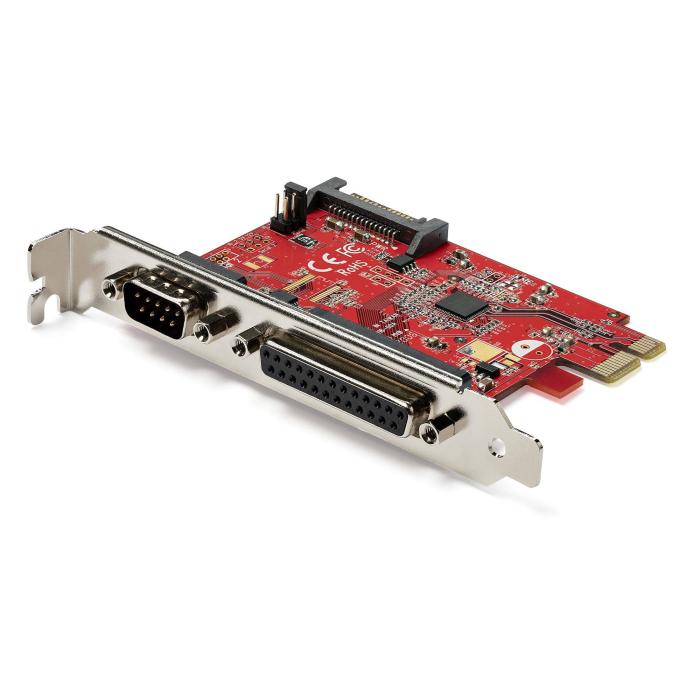

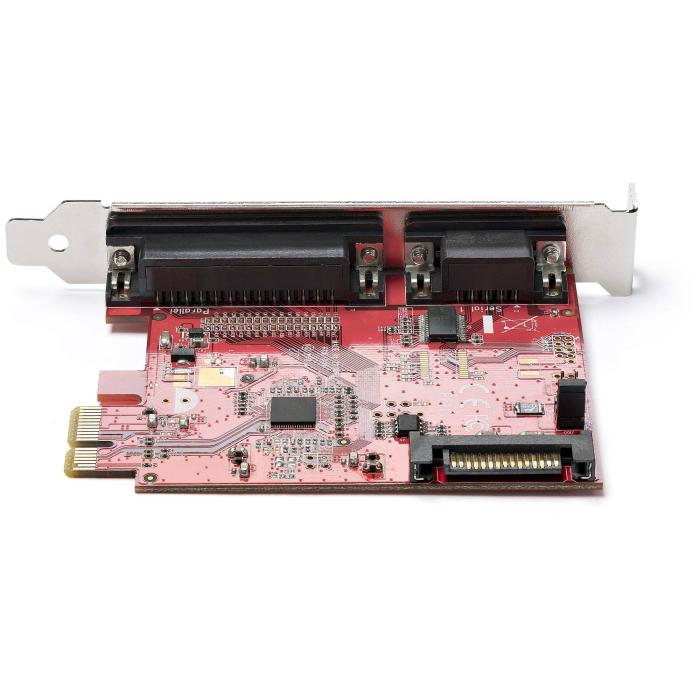

StarTech.com PCIe Card with Serial and Parallel Port - PCI Express Combo Adapter Card with 1x DB25 Parallel Port & 1x RS232 Serial Port - Expansion/Controller Card - PCIe Printer Card

$47.61
$47.61 without VAT

StarTech.com PCIe Card with Serial and Parallel Port - PCI Express Combo Adapter Card with 1x DB25 Parallel Port & 1x RS232 Serial Port - Expansion/Controller Card - PCIe Printer Card.   More info

Brand: STARTECH.COM
SKU: 88019 PRC: 319290 EAN: 65030891844 PN: PEX1S1P950

Description

Specifications

Ports & interfaces

  • Host interface: PCIe
  • Output interface: Parallel, Serial
  • Expansion card standard: PCIe 2.0
  • Serial ports quantity: 1
  • Serial interface type: RS-232
  • Parallel ports quantity: 1

Design

  • Internal: Yes
  • Product colour: Red
  • Mean time between failures (MTBF): 3188058 h

Features

  • Chipset: Asix - AX99100
  • Baud rate: 921.6 Kbit/s
  • FIFO (First In, First Out): 256 B
  • Data bits: 5, 6, 7, 8, 9
  • Stop bits: 1, 1.5, 2
  • Parity bit: Even, Mark, No, Odd, Space
  • Flow Control type: No, RTS/CTS, XON/XOFF

Operational conditions

  • Operating temperature (T-T): -40 - 85 °C
  • Storage temperature (T-T): -40 - 85 °C
  • Operating relative humidity (H-H): 15 - 90%

System requirements

  • Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, W
  • Linux operating systems supported: Yes
  • Server operating systems supported: Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016

Technical details

  • Compliance certificates: CE, RoHS

Weight & dimensions

  • Width: 95 mm
  • Depth: 80 mm
  • Height: 22 mm
  • Weight: 63 g

Packaging data

  • Package width: 170 mm
  • Package depth: 142 mm
  • Package height: 30 mm
  • Package weight: 127 g

Logistics data

  • Harmonized System (HS) code: 84733020
  • Products per master (outer) case: 60 pc(s)
  • Master (outer) case width: 380 mm
  • Master (outer) case length: 500 mm
  • Master (outer) case height: 310 mm

Other features

  • Data transfer rate: 2.5 Mbit/s
