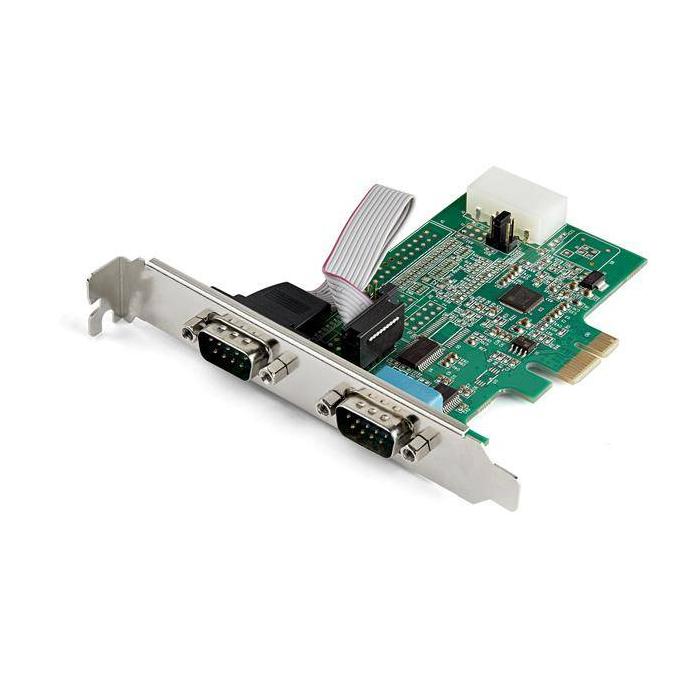

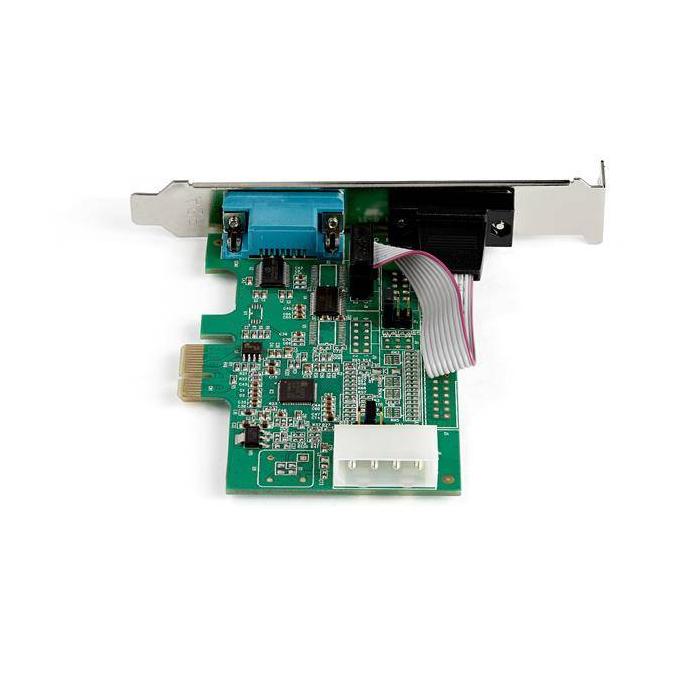

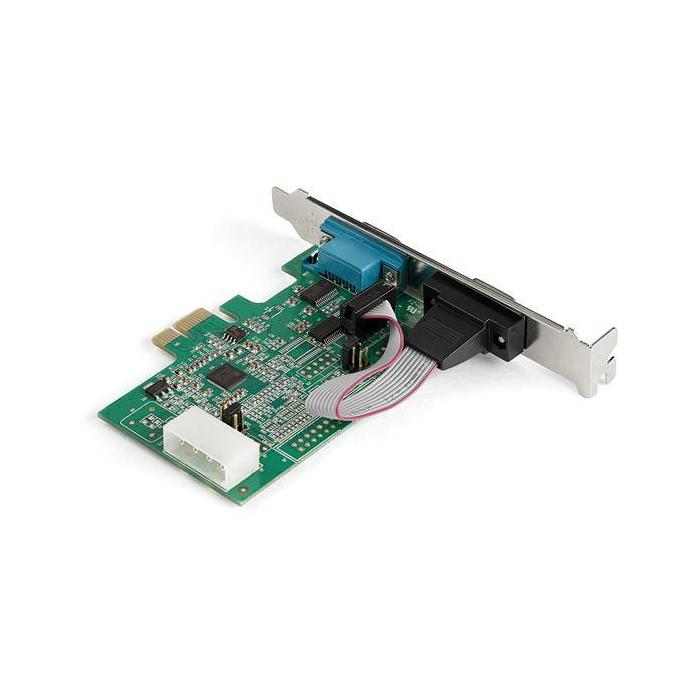

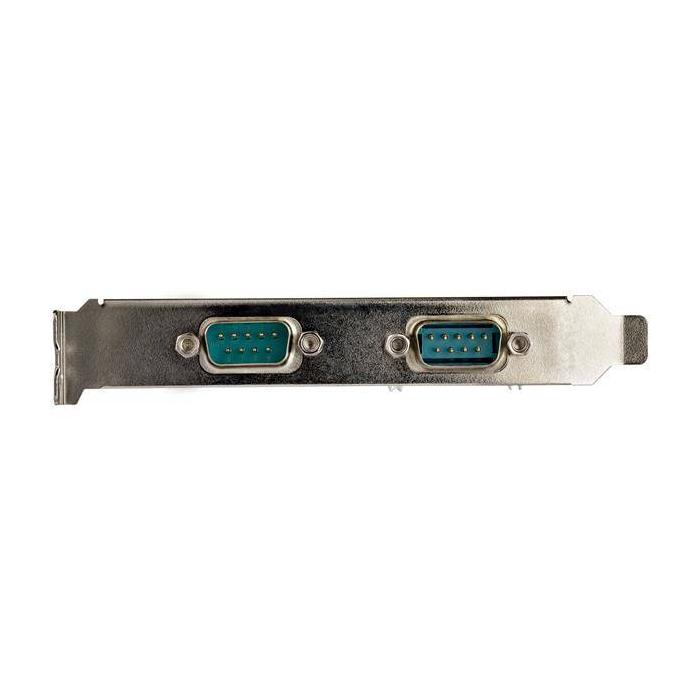

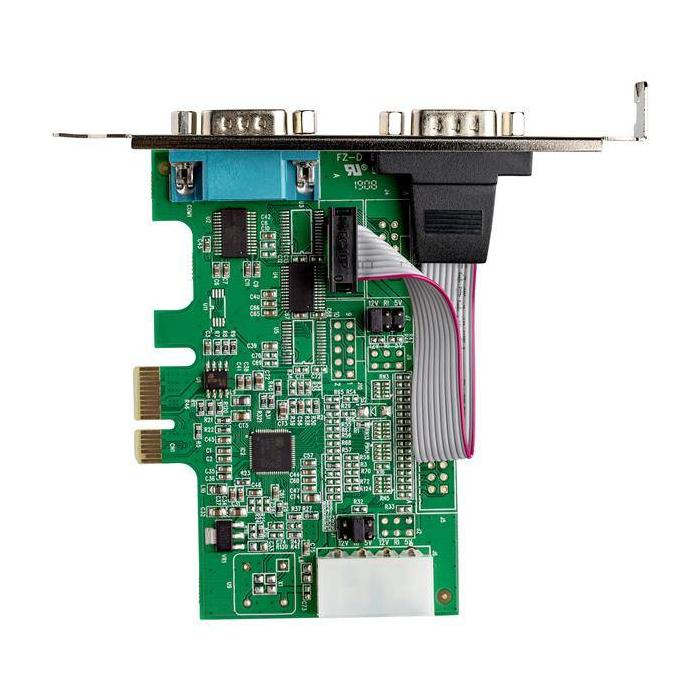

StarTech.com 2-port PCI Express RS232 Serial Adapter Card - PCIe RS232 Serial Host Controller Card - PCIe to Dual Serial DB9 Card - 16950 UART - Expansion Card - Windows & Linux

$50.47
$50.47 without VAT

StarTech.com 2-port PCI Express RS232 Serial Adapter Card - PCIe RS232 Serial Host Controller Card - PCIe to Dual Serial DB9 Card - 16950 UART - Expansion Card - Windows & Linux.   More info

Brand: STARTECH.COM
SKU: 84345 PRC: 283439 EAN: 65030888332 PN: PEX2S953

Description

Specifications

Ports & interfaces

  • Host interface: PCIe
  • Output interface: Serial
  • Expansion card standard: PCIe 1.1
  • Serial ports quantity: 2
  • Serial interface type: RS-232

Design

  • Internal: Yes
  • Product colour: Green
  • Mean time between failures (MTBF): 222366 h

Features

  • Chipset: Asix AX99100
  • Baud rate: 921.6 Kbit/s
  • FIFO (First In, First Out): 256 B
  • Data bits: 5, 6, 7, 8, 9
  • Stop bits: 1, 1.5, 2
  • Parity bit: Even, Mark, No, Odd, Space
  • Flow Control type: No, RTS/CTS, XON/XOFF

Operational conditions

  • Operating temperature (T-T): -10 - 80 °C
  • Storage temperature (T-T): -20 - 100 °C
  • Operating relative humidity (H-H): 5 - 85%

System requirements

  • Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, W
  • Linux operating systems supported: Yes
  • Server operating systems supported: Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016

Technical details

  • Sustainability compliance: Yes
  • Compliance certificates: CE, RoHS

Weight & dimensions

  • Width: 63 mm
  • Depth: 75 mm
  • Height: 15 mm
  • Weight: 56 g

Packaging data

  • Quantity: 1
  • Quick installation guide: Yes
  • Package width: 170 mm
  • Package depth: 142 mm
  • Package height: 30 mm
  • Package weight: 136 g

Logistics data

  • Harmonized System (HS) code: 84733020
  • Products per master (outer) case: 75 pc(s)
  • Master (outer) case width: 685 mm
  • Master (outer) case length: 345 mm
  • Master (outer) case height: 306 mm
