StarTech.com 1-port PCI Express RS232 Serial Adapter Card - PCIe RS232 Serial Host Controller Card - PCIe to Serial DB9 - 16950 UART - Low Profile Expansion Card - Windows & Linux
More info
Brand: STARTECH.COM
52.92 €
43.74 €
without VAT
incl. 21 % VAT
Stock available: 26 units.
Get it
on the
October 16
/
October 19
SKU:
81953
PRC:
246391
EAN:
65030881159
PN:
PEX1S953LP
Description

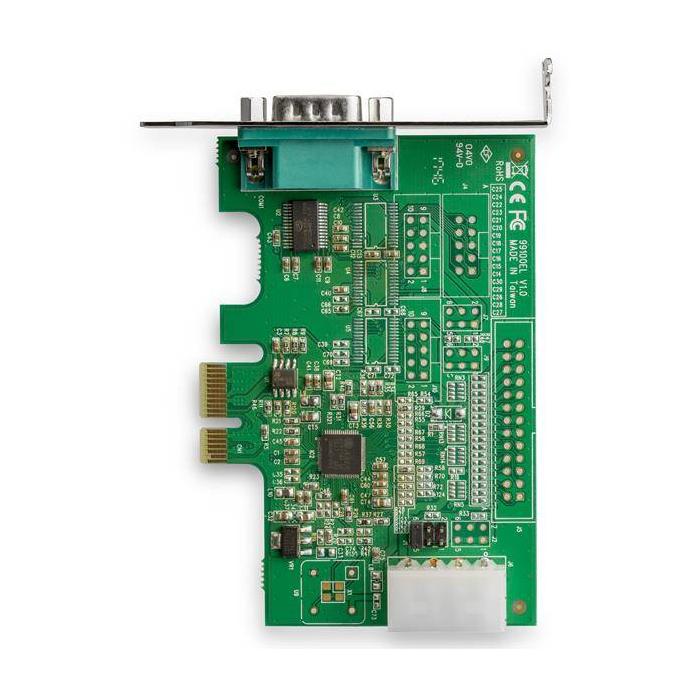

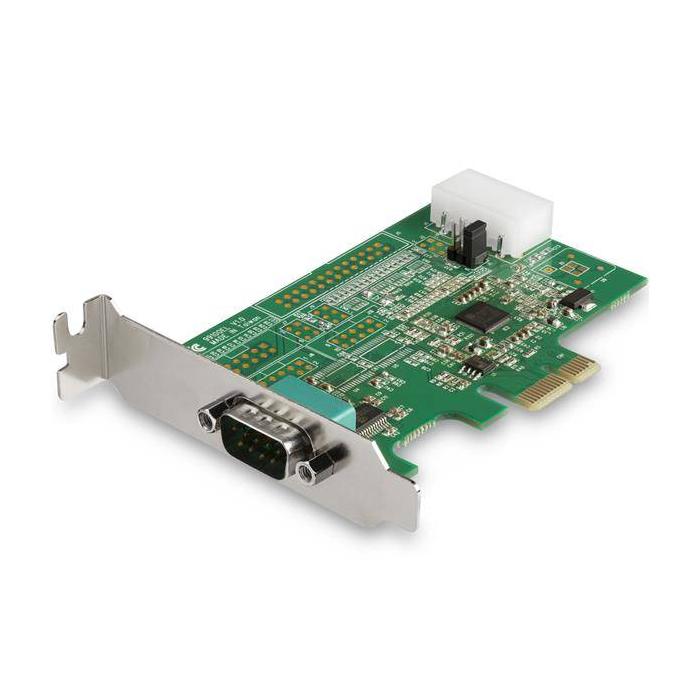

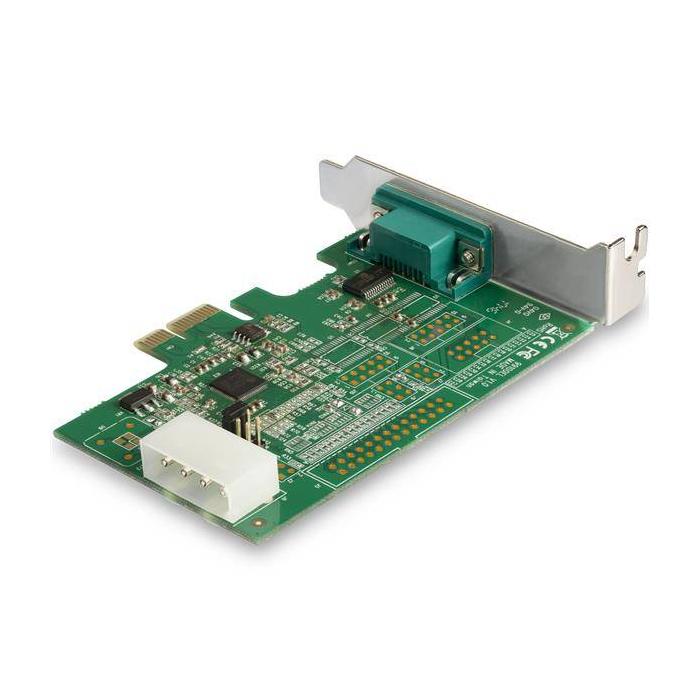

STARTECH.COM 1-port RS232 serial PCI Express adapter card, in green and weighing 44 g. It is installed inside the computer via the PCIe host interface, under the PCIe 1.1 standard, and provides an RS-232 serial output through its single port. It features the Asix AX99100 chipset and supports RTS/CTS and XON/XOFF flow control. It allows the data bits to be configured as 5, 6, 7, 8 or 9, the stop bits as 1, 1.5 or 2 and various parity modes, with a transmission speed of up to 921.4 Kbit/s. It has a 256 B FIFO memory and a 4-pin Molex peripheral power connector. Its dimensions are 67 x 150 x 98 mm (width x height x depth) and its mean time between failures reaches 277385 h. It is designed to operate within a relative humidity range of 20 - 80%.
Specifications
Ports & interfaces
- Host interface: PCIe
- Output interface: Serial
- Expansion card standard: PCIe 1.1
- Serial ports quantity: 1
- Serial interface type: RS-232
- Peripheral (Molex) power connectors (4-pin): 1
Design
- Internal: Yes
- Product colour: Green
- Mean time between failures (MTBF): 277385 h
Features
- Chipset: Asix AX99100
- Baud rate: 921.4 Kbit/s
- FIFO (First In, First Out): 256 B
- Data bits: 5, 6, 7, 8, 9
- Stop bits: 1, 1.5, 2
- Flow control support: Yes
- Parity bit: Even, Mark, No, Odd, Space
- Flow Control type: No, RTS/CTS, XON/XOFF
Operational conditions
- Operating temperature (T-T): 0 - 70 °C
- Storage temperature (T-T): -20 - 80 °C
- Operating relative humidity (H-H): 20 - 80%
System requirements
- Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, W
- Linux operating systems supported: Yes
- Server operating systems supported: Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016
Technical details
- Sustainability compliance: Yes
- Compliance certificates: CE, RoHS
Weight & dimensions
- Width: 67 mm
- Depth: 98 mm
- Height: 150 mm
- Weight: 44 g
Packaging data
- Package depth: 170 mm
- Package height: 30 mm
- Package weight: 112 g
- Quantity: 1
- Mounting brackets included: Yes
- Manual: Yes
- Package width: 142 mm
Logistics data
- Harmonized System (HS) code: 84733020
- Products per master (outer) case: 75 pc(s)
- Master (outer) case width: 360 mm
- Master (outer) case length: 685 mm
- Master (outer) case height: 315 mm
