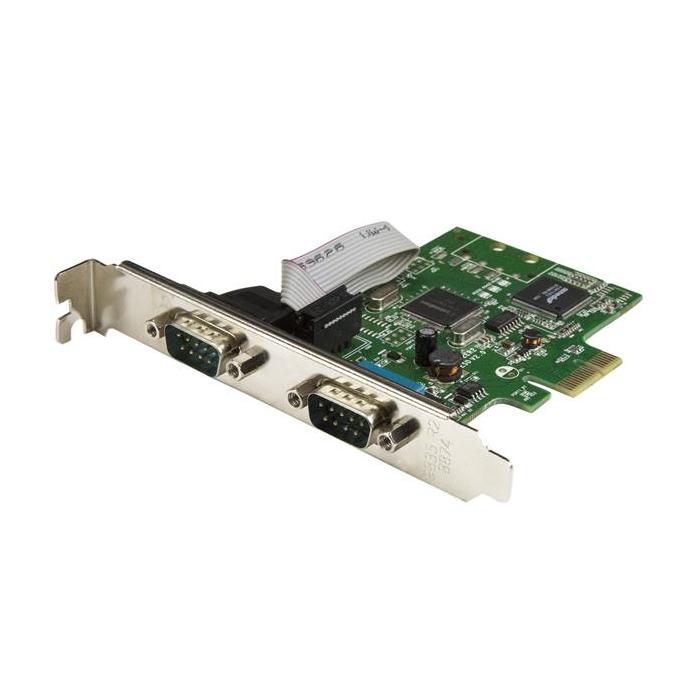

StarTech.com 2-Port PCI Express Serial Card with 16C1050 UART - RS232

$54.27
$54.27 without VAT

StarTech.com 2-Port PCI Express Serial Card with 16C1050 UART - RS232.   More info

Brand: STARTECH.COM
SKU: 78495 PRC: 150718 EAN: 65030868297 PN: PEX2S1050

Description

Specifications

Ports & interfaces

  • Host interface: PCIe
  • Output interface: Serial
  • Expansion card form factor: Full-height / Low-profile
  • Serial ports quantity: 2
  • Serial interface type: RS-232

Design

  • Internal: Yes
  • Certification: CE, FCC, Microsoft WHQL

Features

  • Chipset: SystemBase - SB16C1052PCI
  • Baud rate: 460.8 Kbit/s
  • FIFO (First In, First Out): 256 B
  • Data bits: 5, 6, 7, 8
  • Full duplex: Yes
  • Flow control support: Yes

Operational conditions

  • Operating temperature (T-T): -10 - 80 °C
  • Storage temperature (T-T): -20 - 100 °C
  • Operating relative humidity (H-H): 5 - 85%

System requirements

  • Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, W
  • Server operating systems supported: Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019

Technical details

  • Compliance certificates: RoHS

Weight & dimensions

  • Width: 120 mm
  • Depth: 103 mm
  • Height: 20 mm
  • Weight: 61 g

Packaging data

  • Mounting brackets included: Yes
  • Drivers included: Yes
  • Quick installation guide: Yes
  • Package width: 143 mm
  • Package depth: 174 mm
  • Package height: 32 mm
  • Package weight: 149 g

Logistics data

  • Harmonized System (HS) code: 84733020
  • Products per master (outer) case: 75 pc(s)
  • Master (outer) case width: 356 mm
  • Master (outer) case length: 691 mm
  • Master (outer) case height: 319 mm
