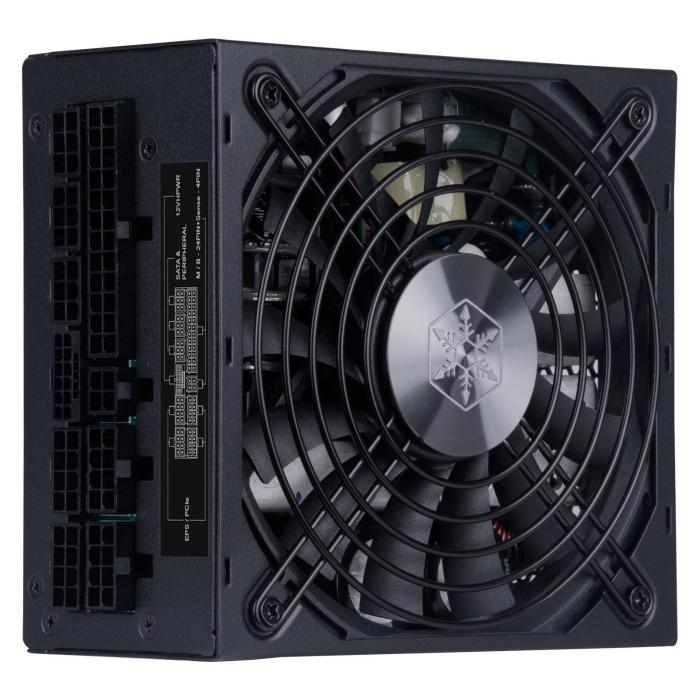

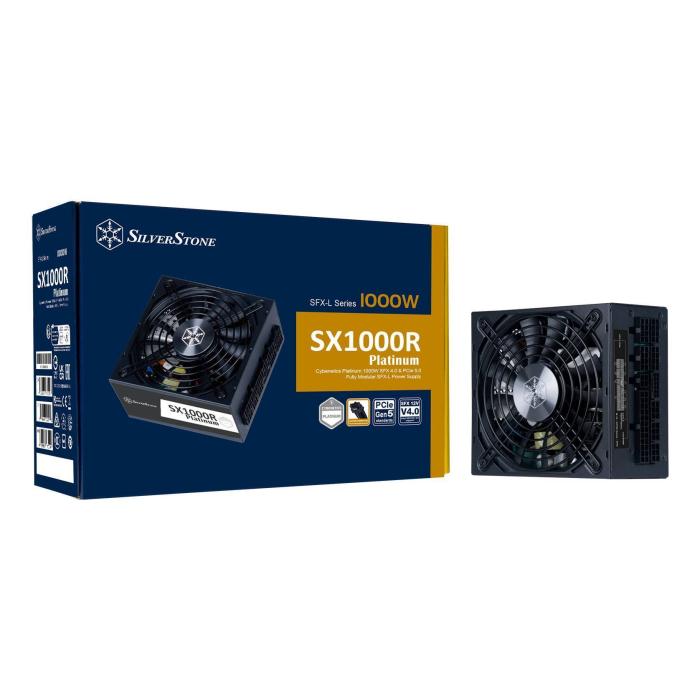

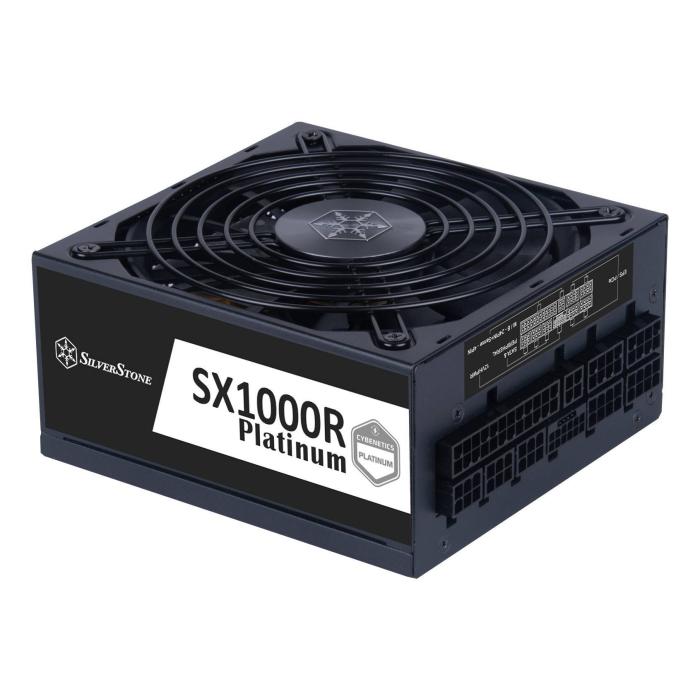

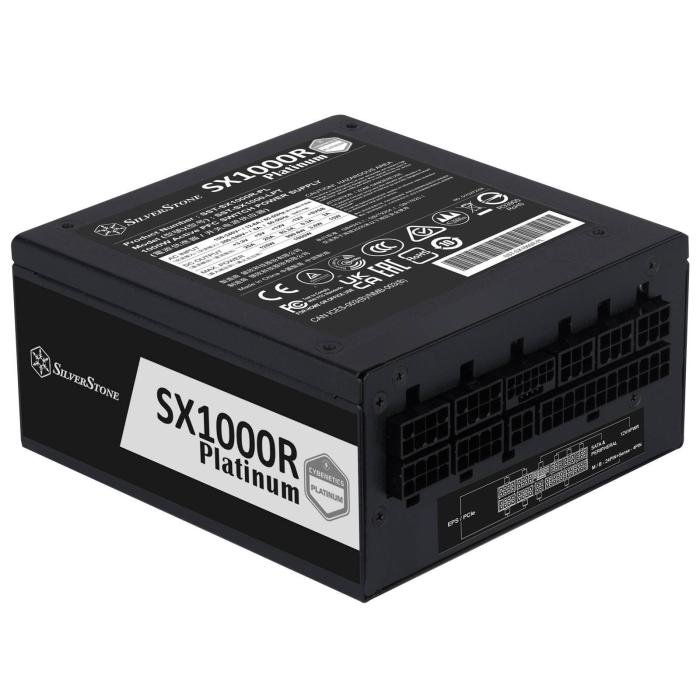

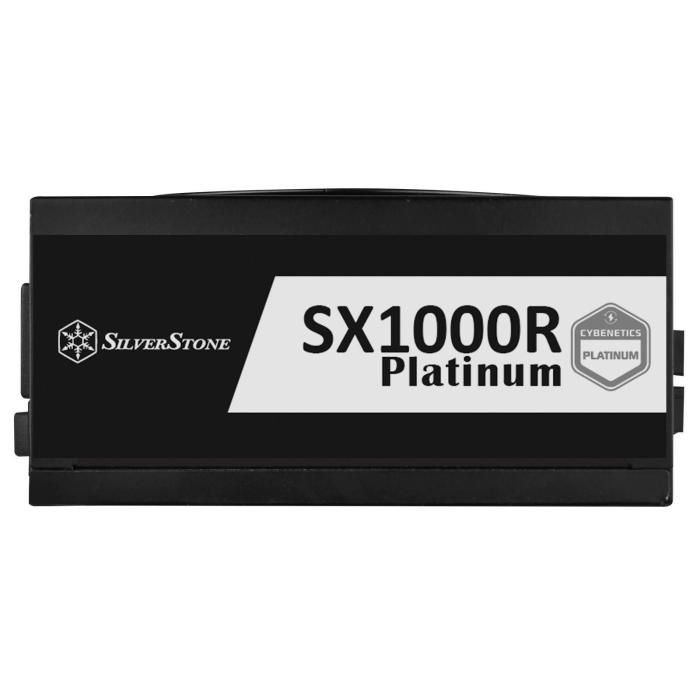

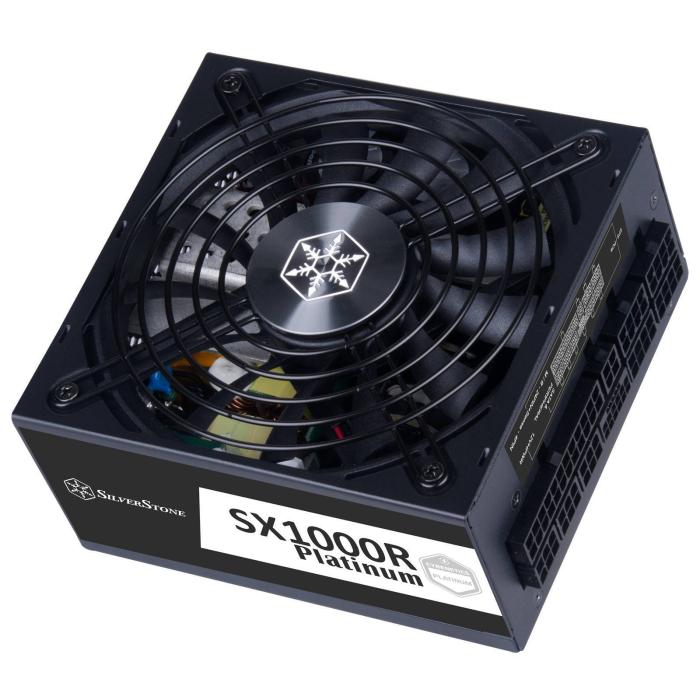

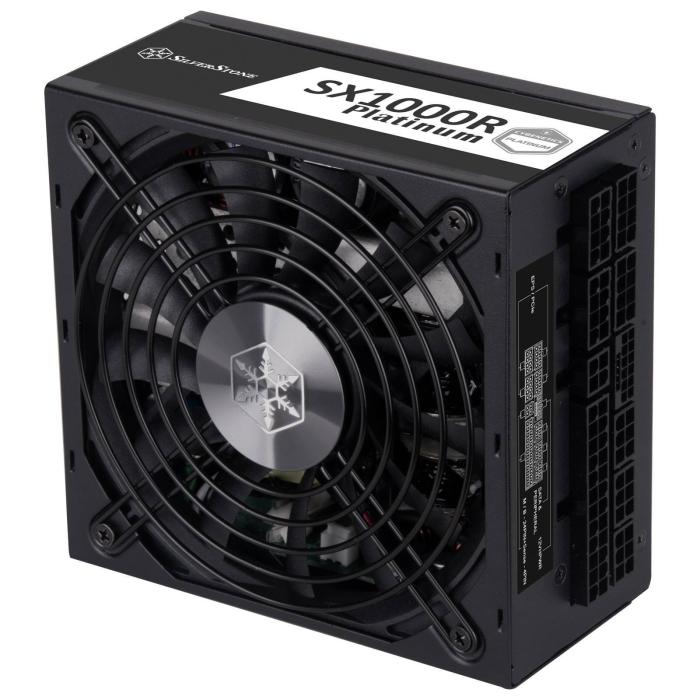

Silverstone SX1000R Platinum power supply unit 1000 W 24-pin ATX SFX-L Black
More info
Brand: SILVERSTONE
303,00 €Stock available: 0 units.
Unavailable
SKU:
109194
PRC:
579831
EAN:
4710679816173
PN:
SST-SX1000R-PL
Description
Silverstone SX1000R Platinum power supply, SFX-L form factor and black finish, ready for installation in compact systems without compromising a total power output of 1000 W. Its fully modular cabling and 24-pin ATX main connector ensure a clean installation, with eight SATA connectors and three Molex connectors for peripherals. Its protection features include overcurrent, overvoltage, overvoltage and short circuit protection, with active power factor correction and a wide input voltage range of 90 to 264 V. It provides a maximum current of 83.3 A on the +12 V line, with a combined power output of 999.6 W on that rail, making it suitable for demanding configurations within a compact case.

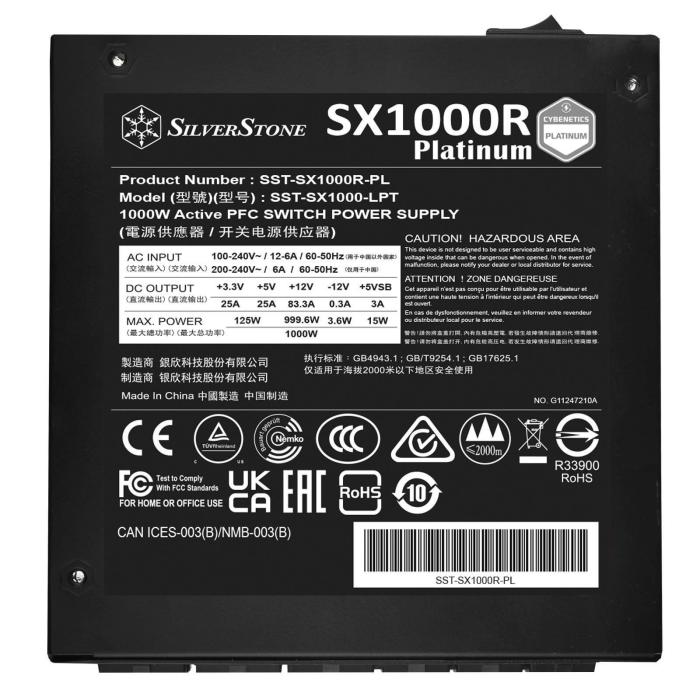

Specifications
Power
- Total power: 1000 W

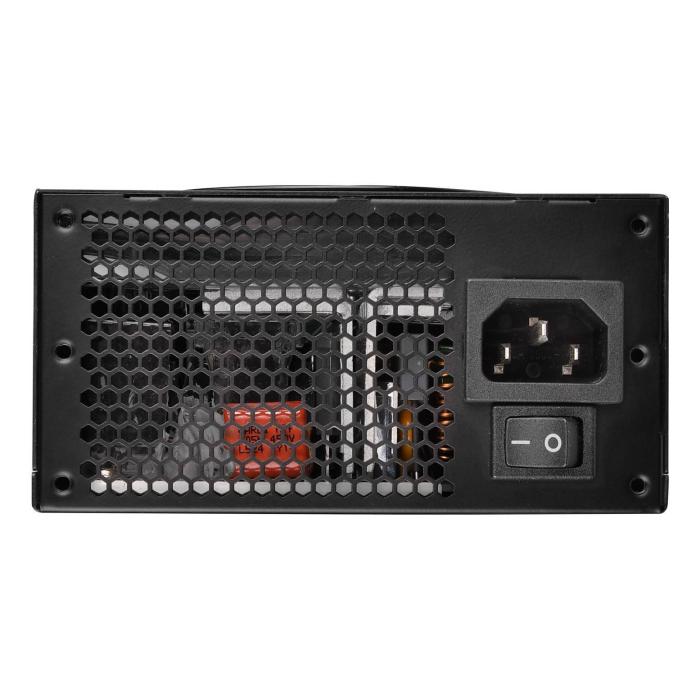

- AC input voltage: 90 - 264 V
- AC input frequency: 47 - 63 Hz
- Power Factor Correction (PFC) type: Active
- Combined power (+3.3V): 125 W
- Combined power (+12V): 999.6 W
- Combined power (+5V): 125 W
- Max output current (+3.3V): 25 A
- Max output current (+12V): 83.3 A
- Max output current (+5V): 25 A
- Max output current (-12V): 0.3 A
- Max output current (+5Vsb): 3 A
- Power protection features: Over current, Over power, Over voltage, Short circuit

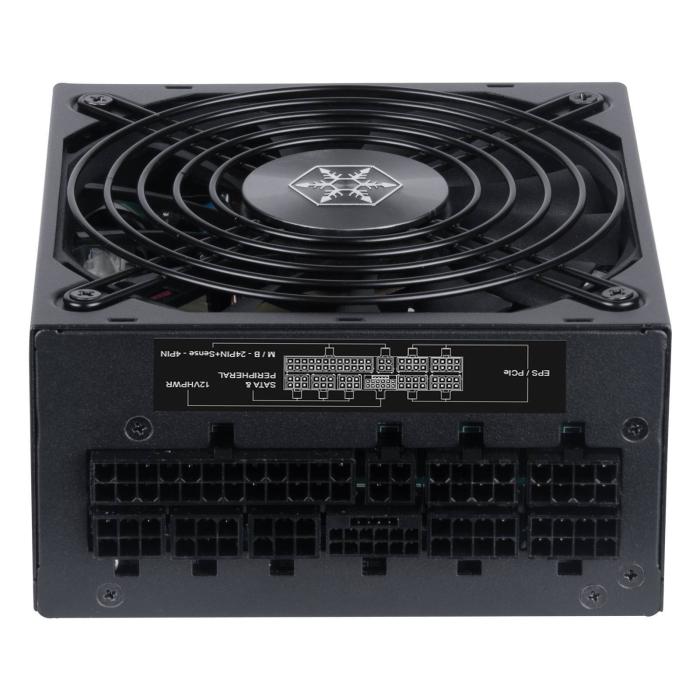

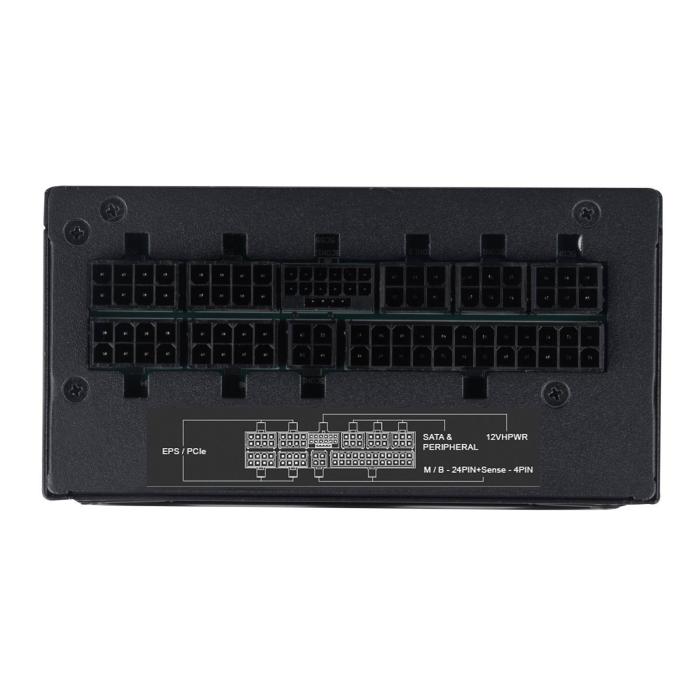

Ports & interfaces
- Motherboard power connector: 24-pin ATX
- Number of SATA power connectors: 8
- Peripheral (Molex) power connectors (4-pin): 3
- ATX Power connector (24-pin): Yes
- Cabling type: Fully-Modular
Performance
- 80 PLUS certification: 80 PLUS Platinum
- Purpose: PC
- Power supply unit (PSU) form factor: SFX-L
Design
- Product colour: Black
- Cooling type: Active

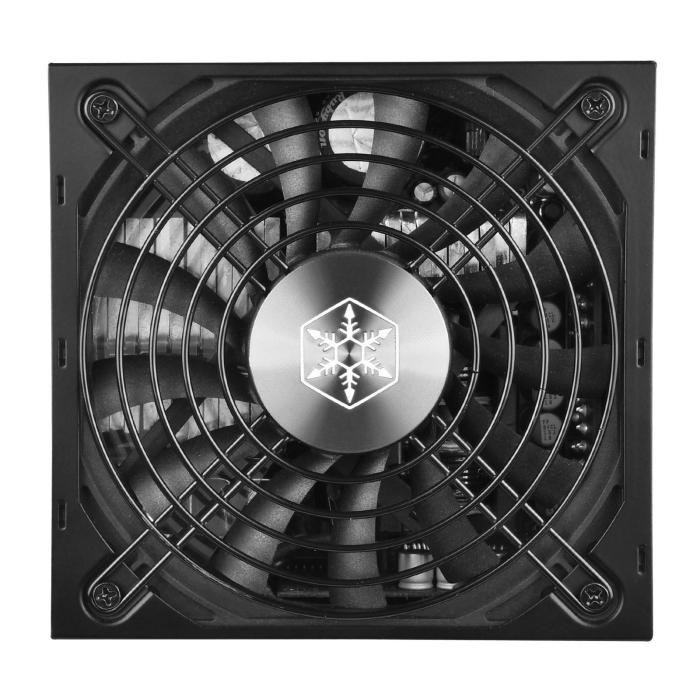

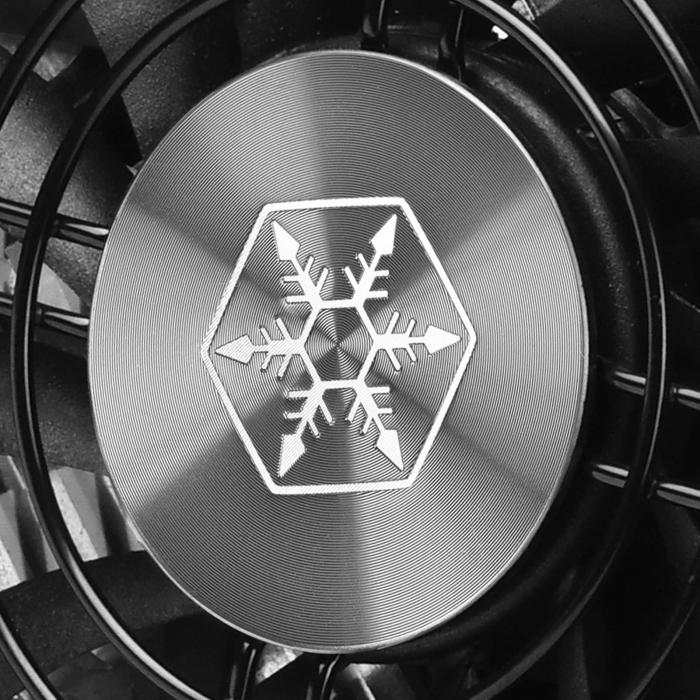

- Fan diameter: 12 cm
- Number of fans: 1 fan(s)
Operational conditions
- Operating temperature (T-T): 0 - 50 °C
Weight & dimensions
- Width: 125 mm
- Depth: 130 mm
- Height: 63.5 mm
- Weight: 1.39 kg
Packaging data
- Package type: Box
