Description

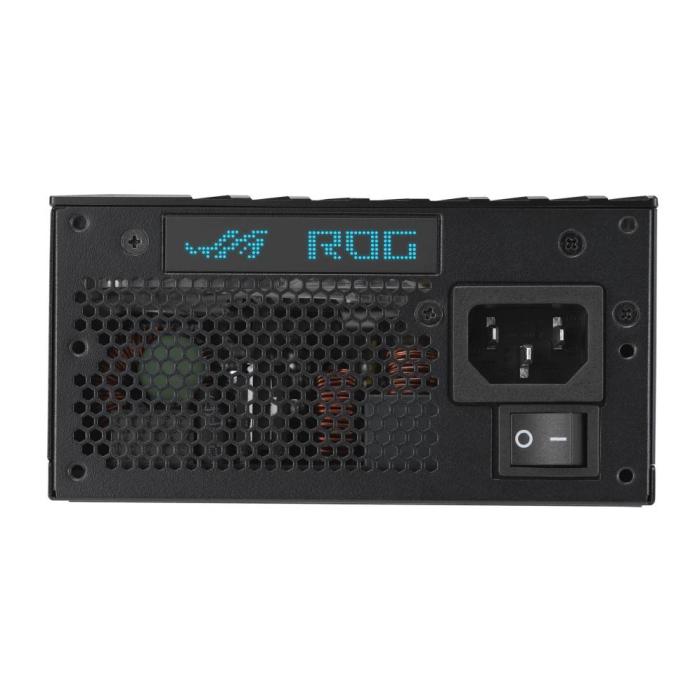

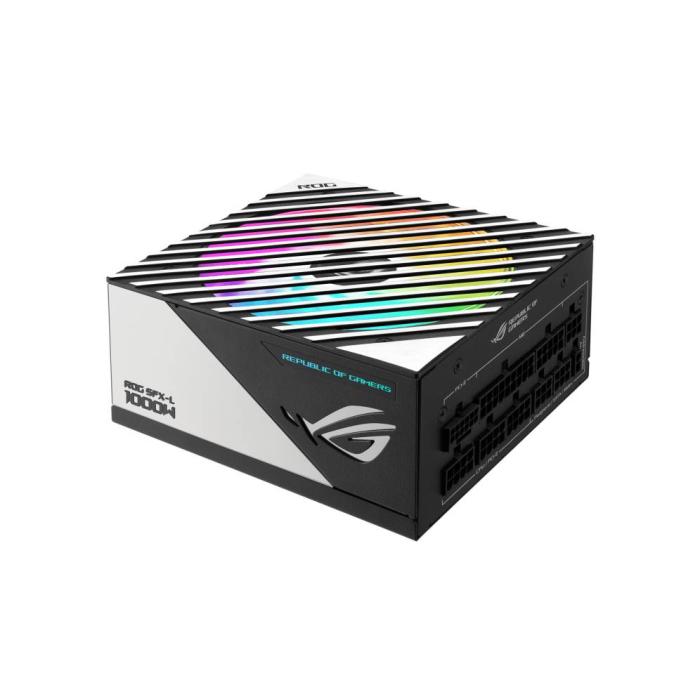

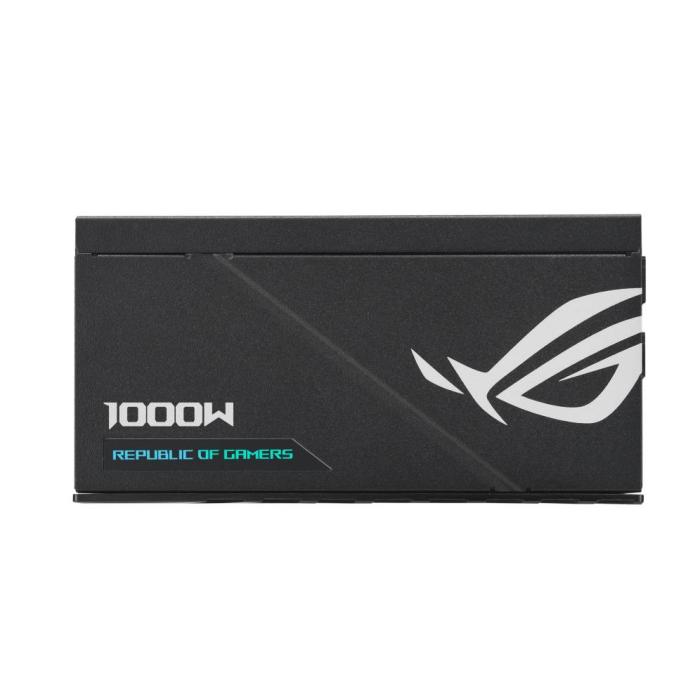

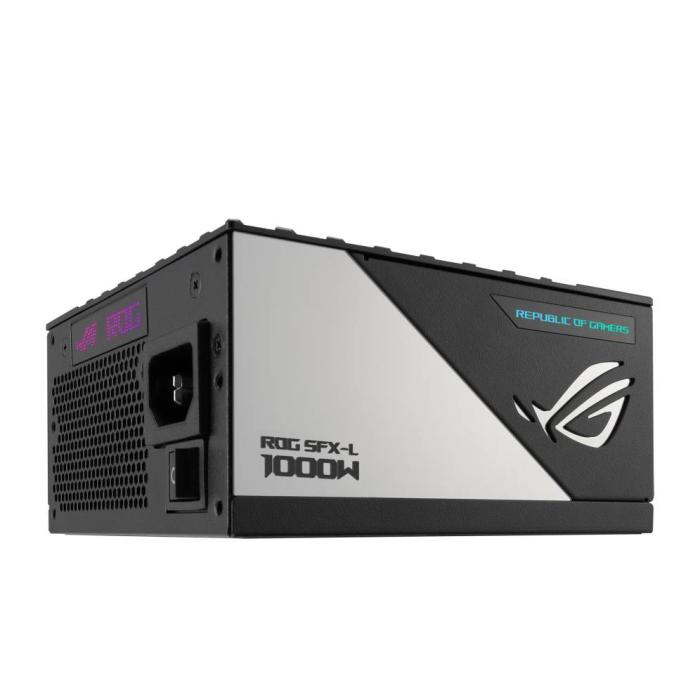

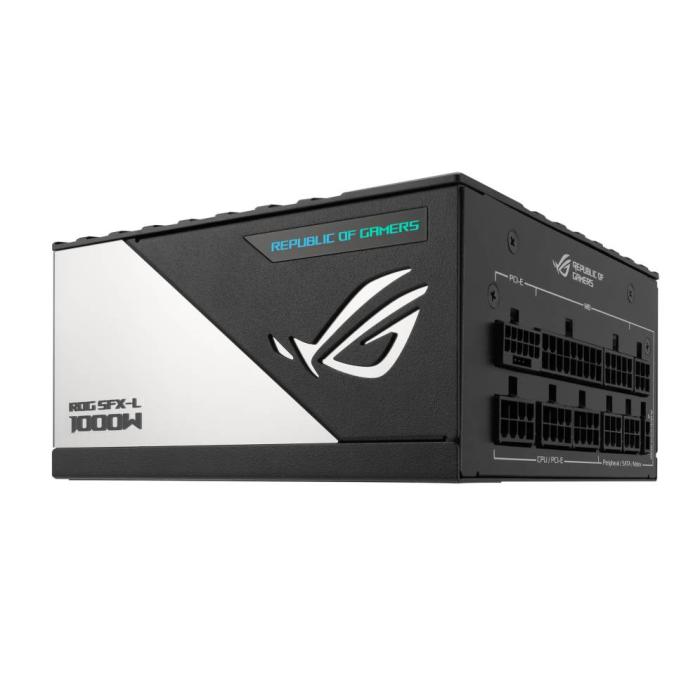

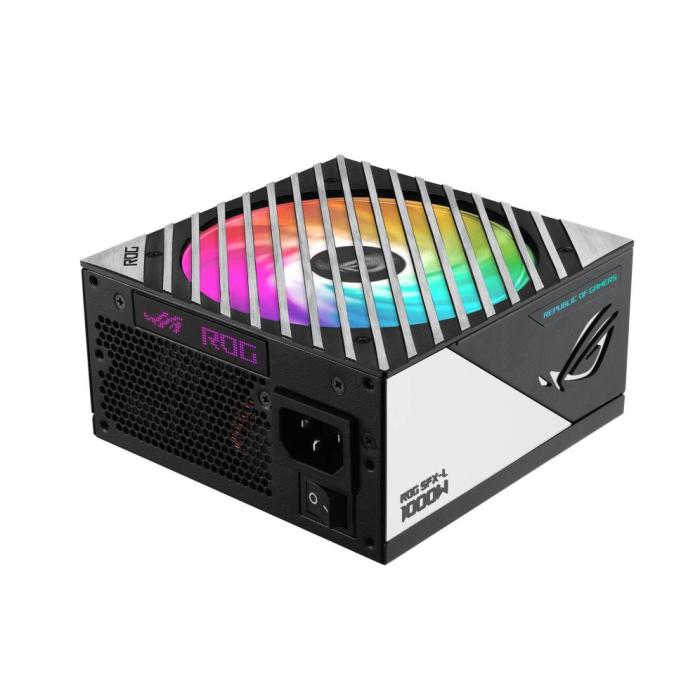

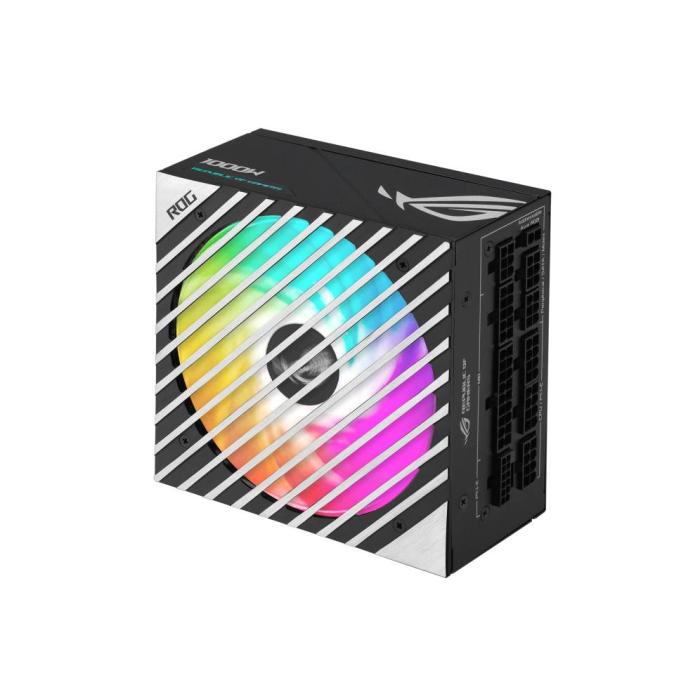

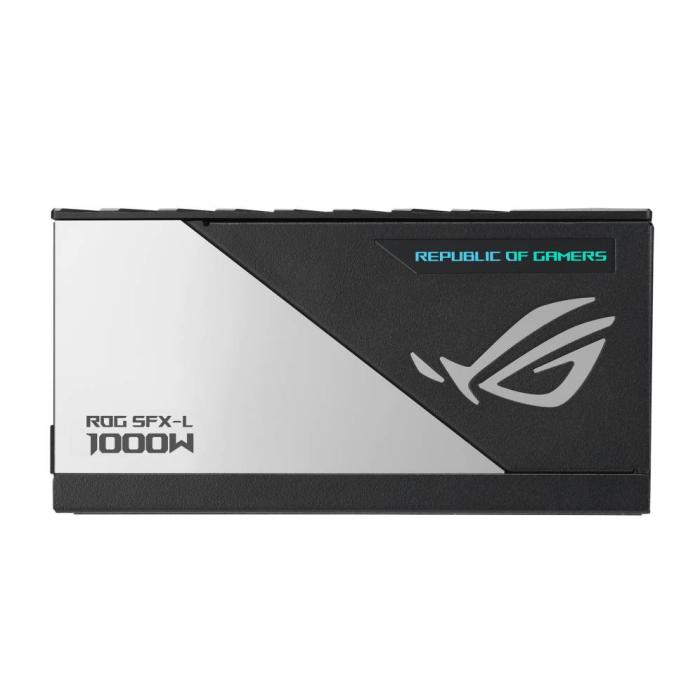

The ASUS ROG Loki SFX-L is a 1000 W total power power supply unit in a compact form factor, measuring 125 x 63.5 x 125 mm (width x height x depth) and weighing 1.83 kg. Its black and silver design suits low-profile builds, and it supports an AC input voltage of 100 - 240 V. On the +12 V output it delivers up to 83.3 A, while the +5 V and 3.3 V rails offer 20 A each. The cabling is fully modular and includes a 24-pin ATX motherboard power connector, three 8-pin PCI Express connectors and a 4 +4 pin CPU connector. It also features six SATA power connectors and four 4-pin Molex peripheral connectors. With all this you can power demanding configurations while keeping the inside of the case tidy.
Specifications
Power
- Total power: 1000 W
- AC input voltage: 100 - 240 V
- Combined power (+3.3V): 110 W
- Combined power (+12V): 1000 W
- Combined power (+5V): 110 W
- Combined power (-12V): 9.6 W
- Combined power (+5Vsb): 12.5 W
- Max output current (+3.3V): 20 A
- Max output current (+12V): 83.3 A
- Max output current (+5V): 20 A
- Max output current (-12V): 0.8 A
- Max output current (+5Vsb): 2.5 A

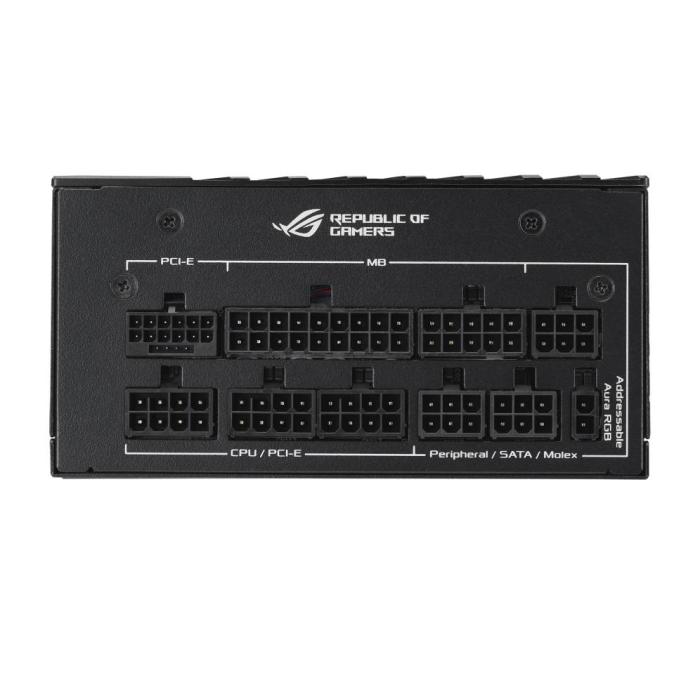

Ports & interfaces
- Motherboard power connector: 24-pin ATX
- Number of SATA power connectors: 6
- Peripheral (Molex) power connectors (4-pin): 4
- PCI Express power connectors (8-pin): 3
- PCI Express power connectors (16-pin): 1
- CPU power connector (4+4 pin): Yes
- Cabling type: Fully-Modular
Performance
- 80 PLUS certification: 80 PLUS Platinum
- Supported motherboard form factors: ATX
- Purpose: PC
- Power supply unit (PSU) form factor: SFX
- Silent mode: Yes
Design
- Product colour: Black, Silver

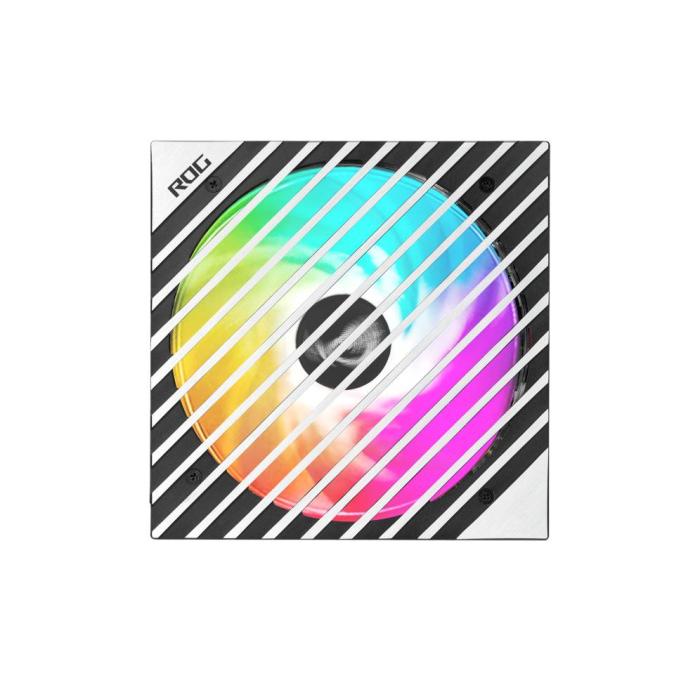

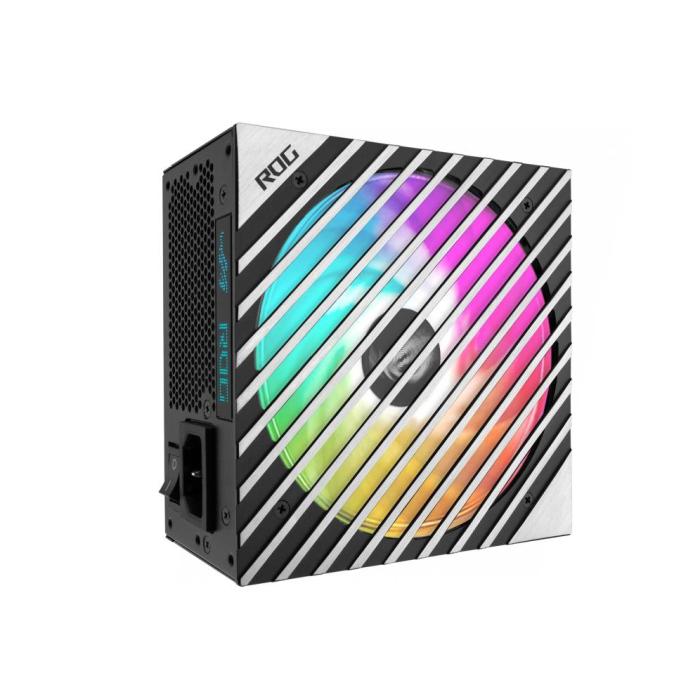

- Fan diameter: 12 cm
- Number of fans: 1 fan(s)
- Illumination: Yes
Certificates
- Compliance certificates: RoHS
- Certification: OPP/OVP/UVP/SCP/OCP/OTP
Weight & dimensions
- Width: 125 mm
- Depth: 125 mm
- Height: 63.5 mm
- Weight: 1.83 kg

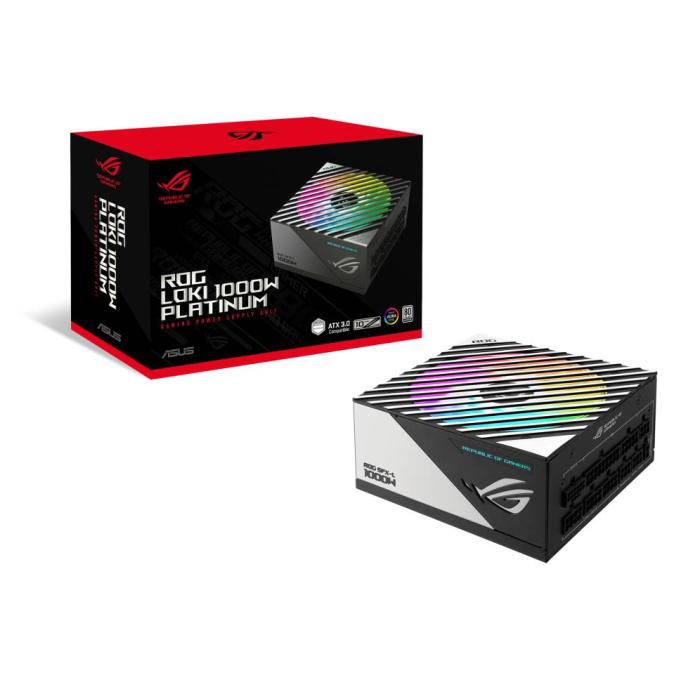

Packaging data
- Package width: 285 mm
- Package depth: 190 mm
- Package height: 100 mm
- Package weight: 2.52 kg
- Package type: Box
