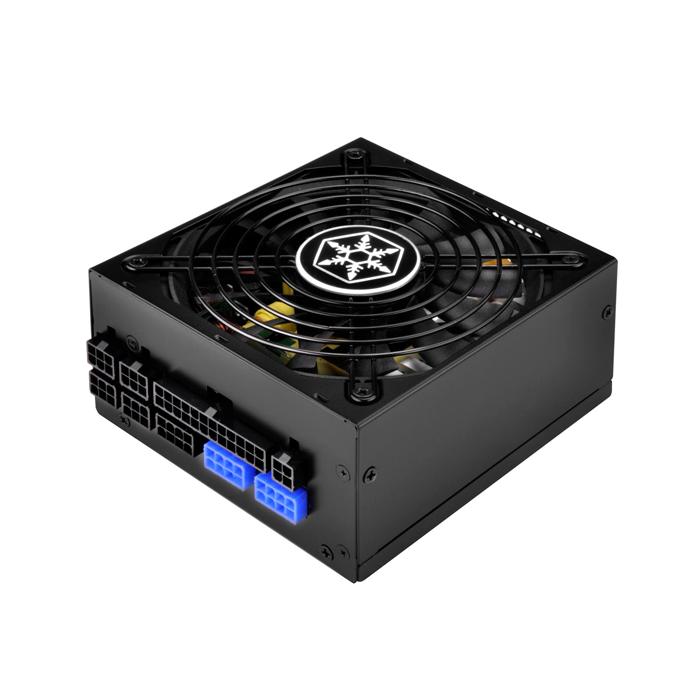

Silverstone SX800-LTI power supply unit 800 W 24-pin ATX SFX Black

Few units

Product 1 image

Silverstone SX800-LTI power supply unit 800 W 24-pin ATX SFX Black

215.00 €

177.69 € without VAT

Amount

Brand: SILVERSTONE

SKU: 78324 PRC: 148975 EAN: 4710007224397 PN: SST-SX800-LTI

Description

Specifications

Power

Total power: 800 W
Peak power: 850 W
AC input voltage: 90 - 264 V
AC input frequency: 47 - 63 Hz
Power factor: 0.9
Power Factor Correction (PFC) type: Active
Combined power (+3.3V): 80 W
Combined power (+12V): 792 W
Combined power (+5V): 80 W
Max output current (+3.3V): 16 A
Max output current (+12V1): 66 A
Max output current (+5V): 15 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 2.5 A
Efficiency: 94%
Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage

Ports & interfaces

Motherboard power connector: 24-pin ATX
Motherboard power cable length: 30 cm
Number of SATA power connectors: 12
SATA power cable length: 100, 300 mm
Peripheral (Molex) power connectors (4-pin): 3
Peripheral (Molex) power cable length: 200, 300 mm
EPS power connector (8-pin): Yes
PCI Express power connectors (6-pin): 2
PCI Express power connectors (8-pin): 2
ATX Power connector (24-pin): Yes
ATX Power connector (20-pin): Yes
Cabling type: Fully-Modular

Performance

80 PLUS certification: 80 PLUS Titanium
Purpose: PC
Power supply unit (PSU) form factor: SFX
ATX version: 2.4
Noise level: 36 dB
Mean time between failures (MTBF): 100000 h

Design

Product colour: Black
Cooling type: Active
Fan diameter: 12 cm
Number of fans: 1 fan(s)
On/off switch: Yes

Operational conditions

Operating temperature (T-T): 0 - 40 °C

Weight & dimensions

Width: 125 mm
Depth: 130 mm
Height: 63.5 mm
Weight: 1.7 kg
