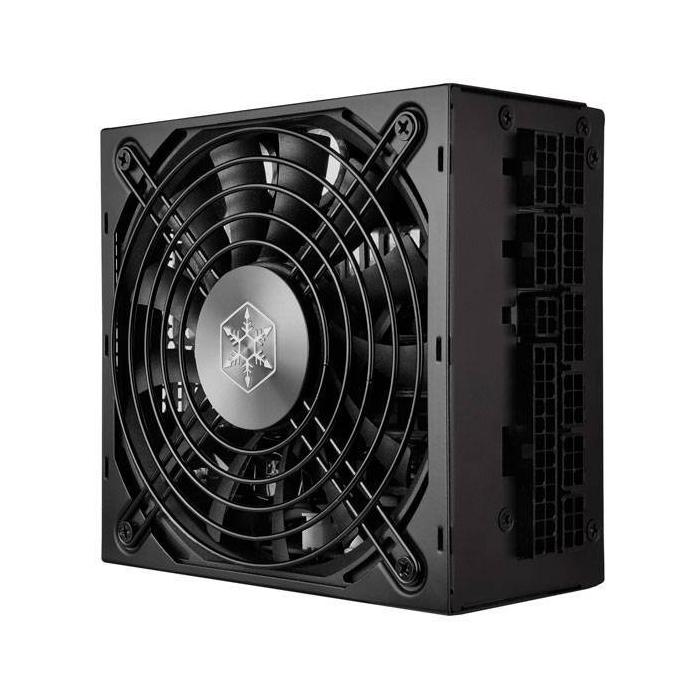

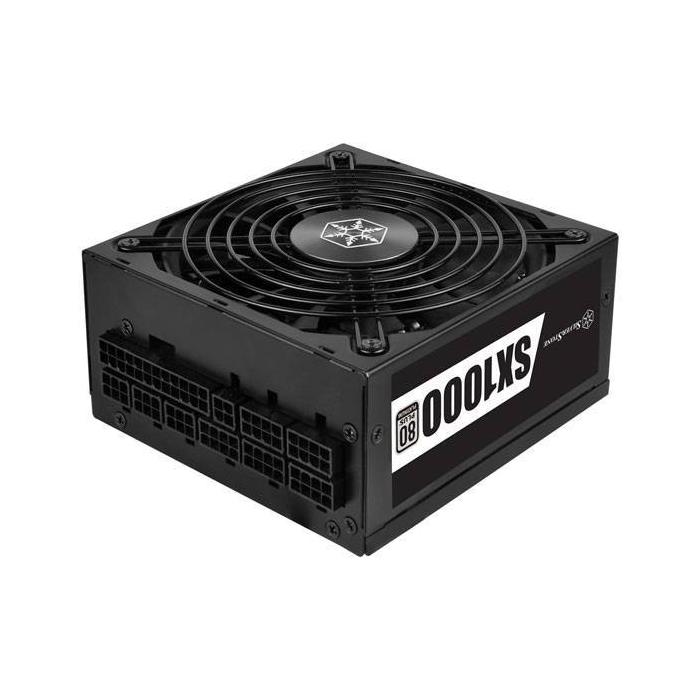

Silverstone SX1000 power supply unit 1000 W 24-pin ATX SFX-L Black
More info
Brand: SILVERSTONE
242.06 €
200.05 €
without VAT
Stock available: 1 ud.
Get it
tomorrow
/
August 28
SKU:
92753
PRC:
366530
EAN:
4710679810218
PN:
sst-sx1000-lpt
Description
The Silverstone SX1000 SFX-L power supply unit in black offers 1000 W total power with a 24-pin ATX connector and a 30 cm motherboard cable. It accepts an AC input voltage of 90 to 264 V with a frequency of 47 to 63 Hz, and includes active power factor correction for efficient use. Its protections cover overcurrent, overvoltage, overvoltage and short circuit, while the +12 V rail reaches 83.3 A with a combined power of 999.6 W. It includes an 8-pin EPS connector and SATA cables of 100, 200 and 300 mm, as well as Molex peripheral cables of 200 and 300 mm.
Specifications

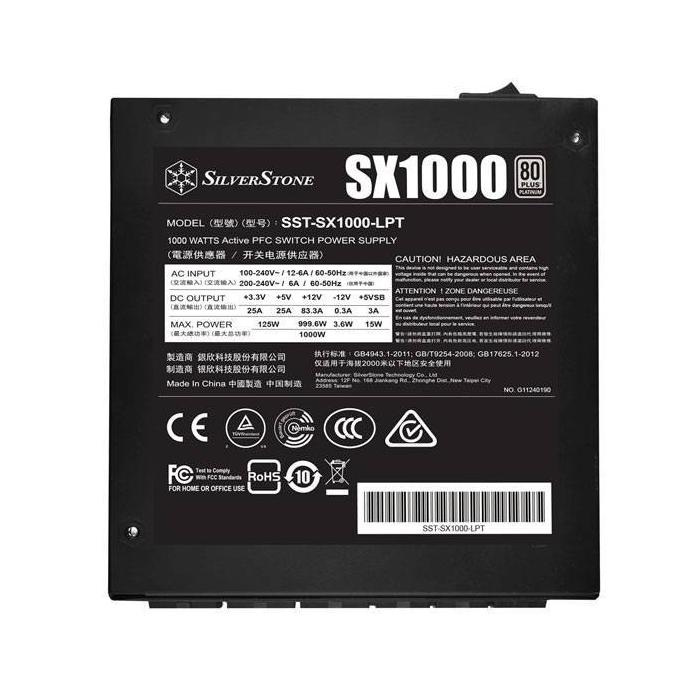

Power
- Total power: 1000 W

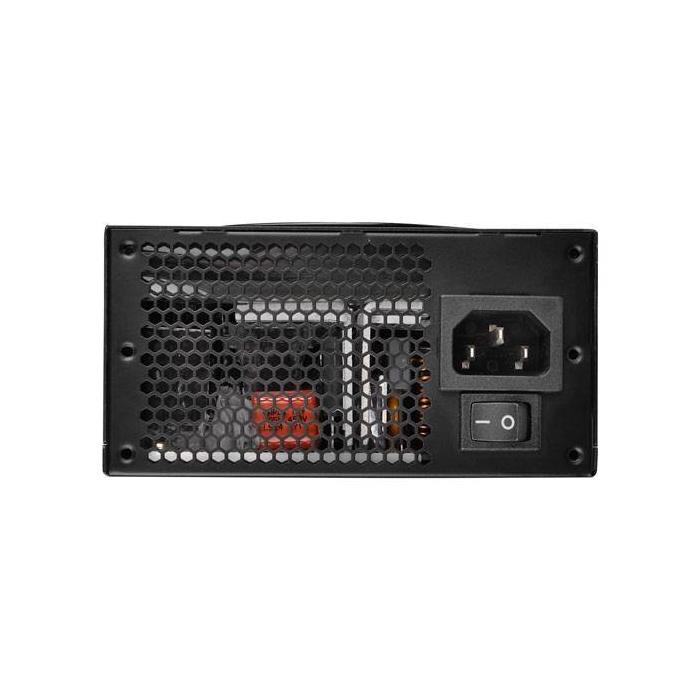

- AC input voltage: 90 - 264 V
- AC input frequency: 47 - 63 Hz
- Power Factor Correction (PFC) type: Active
- Combined power (+3.3V): 125 W
- Combined power (+12V): 999.6 W
- Combined power (+5V): 125 W
- Max output current (+3.3V): 25 A
- Max output current (+12V): 83.3 A
- Max output current (+5V): 25 A
- Max output current (-12V): 0.3 A
- Max output current (+5Vsb): 3 A
- Power protection features: Over current, Over power, Over voltage, Short circuit
Ports & interfaces
- Motherboard power connector: 24-pin ATX
- Motherboard power cable length: 30 cm
- Number of SATA power connectors: 8
- SATA power cable length: 100, 200, 300 mm
- Peripheral (Molex) power connectors (4-pin): 3
- Peripheral (Molex) power cable length: 200, 300 mm
- EPS power connector (8-pin): Yes
- PCI Express power connectors (8-pin): 6
- ATX Power connector (24-pin): Yes
- Cabling type: Fully-Modular
Performance
- 80 PLUS certification: 80 PLUS Platinum
- Purpose: PC
- Power supply unit (PSU) form factor: SFX-L
Design
- Product colour: Black
- Cooling type: Active

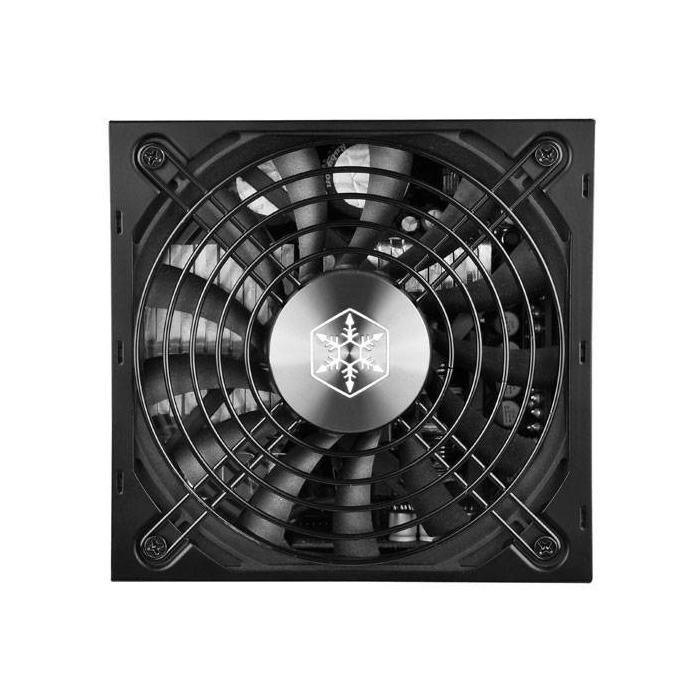

- Fan diameter: 12 cm
- Number of fans: 1 fan(s)
Operational conditions
- Operating temperature (T-T): 0 - 50 °C
Weight & dimensions
- Width: 125 mm
- Depth: 130 mm
- Height: 63.5 mm
- Weight: 1.68 kg
Logistics data
- Harmonized System (HS) code: 84733020
