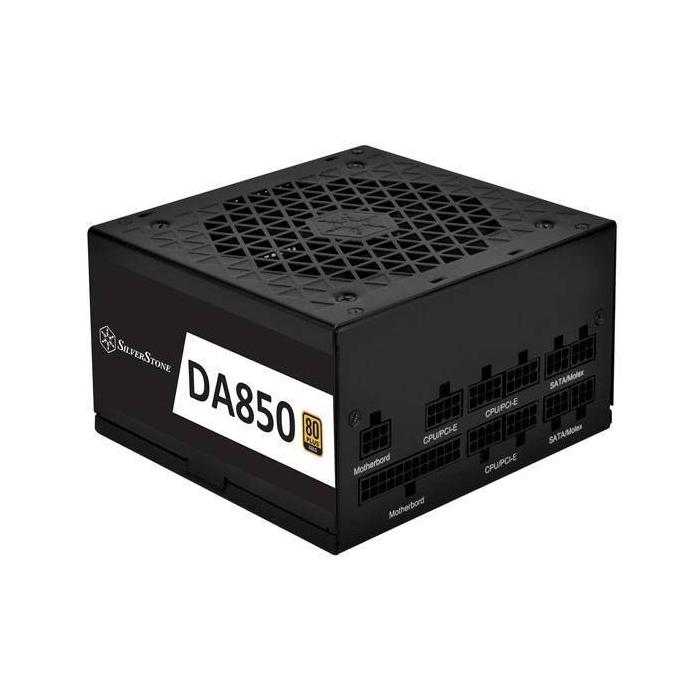

Silverstone SST-DA850R-GMA power supply unit 850 W 20-pin ATX ATX Black

133.00 €
109.92 € without VAT

More info

Brand: SILVERSTONE
SKU: 114343 PRC: 543016 EAN: 4710679816845 PN: SST-DA850R-GMA

Description

Specifications

Power

  • Total power: 850 W
  • AC input voltage: 90 - 264 V
  • AC input frequency: 47 - 63 Hz
  • Power factor: 0.9
  • Power Factor Correction (PFC) type: Active
  • Combined power (+3.3V): 110 W
  • Combined power (+12V): 846 W
  • Combined power (+5V): 110 W
  • Max output current (+3.3V): 20 A
  • Max output current (+12V): 70.5 A
  • Max output current (+5V): 20 A
  • Max output current (-12V): 0.3 A
  • Max output current (+5Vsb): 2.5 A
  • Efficiency: 89%
  • Power protection features: Over current

Ports & interfaces

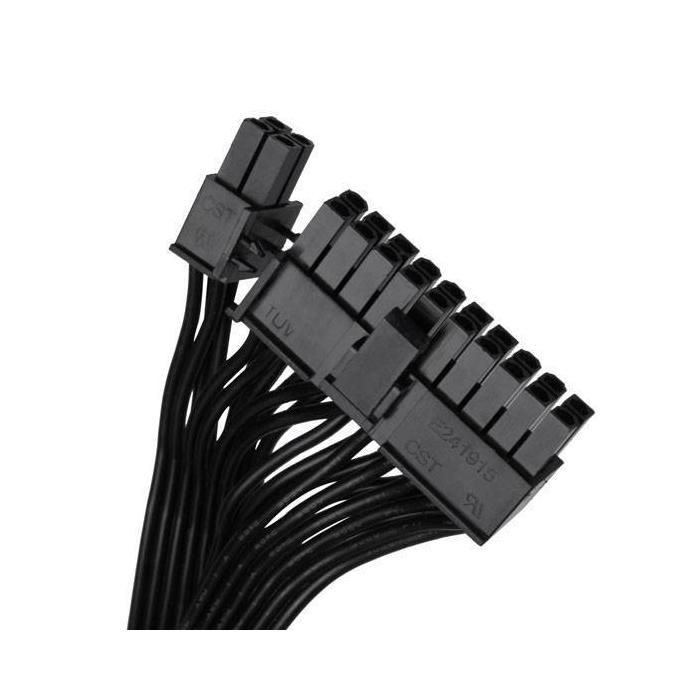

  • Motherboard power connector: 20-pin ATX

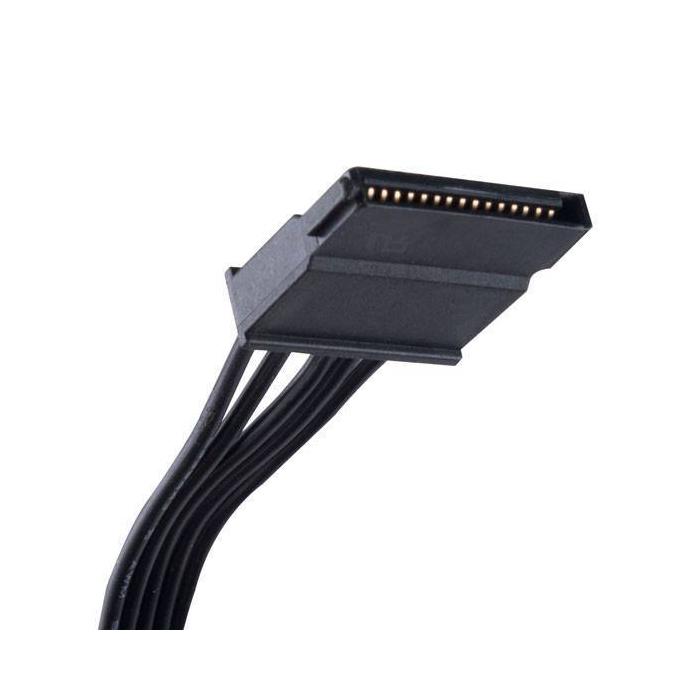

  • Number of SATA power connectors: 8

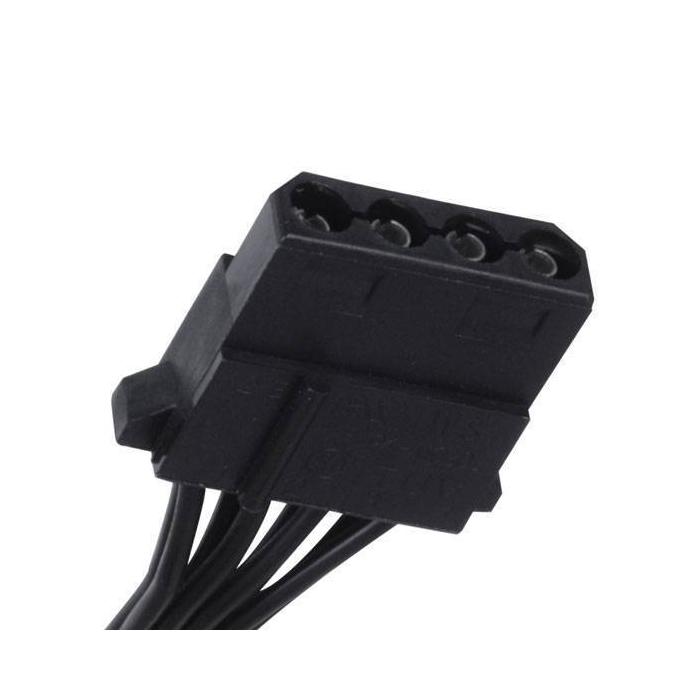

  • Peripheral (Molex) power connectors (4-pin): 4

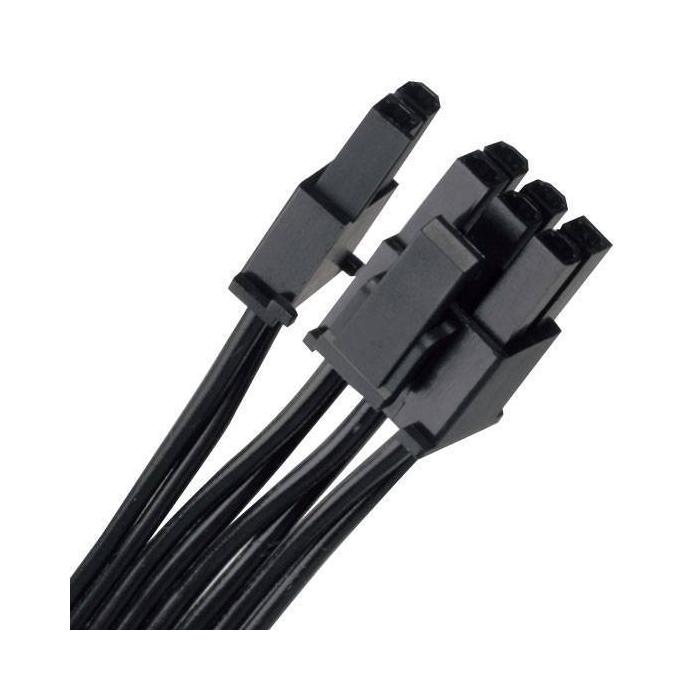

  • EPS power connector (8-pin): Yes
  • PCI Express power connectors (6-pin): 4

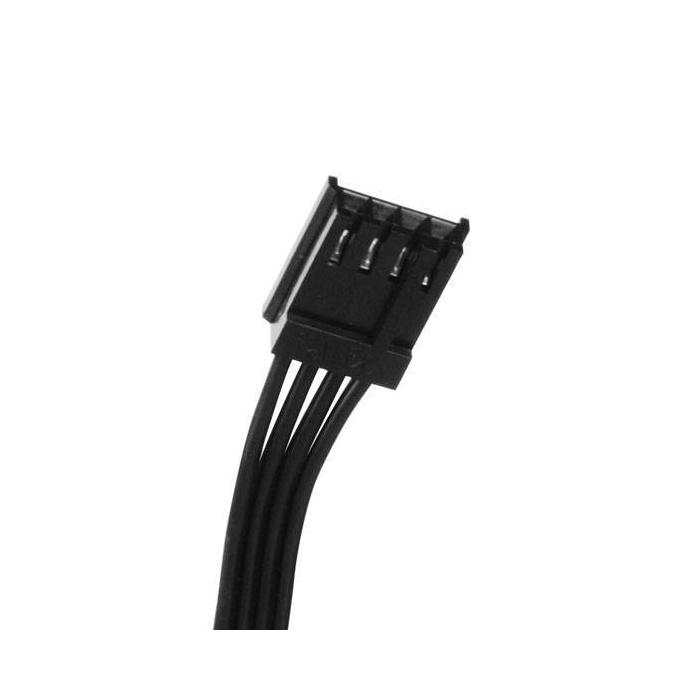

  • Floppy disk drive connector: Yes
  • Cabling type: Fully-Modular

Performance

  • 80 PLUS certification: 80 PLUS Gold
  • Purpose: PC/Server
  • Power supply unit (PSU) form factor: ATX
  • Bearing technology: FDB
  • Mean time between failures (MTBF): 100000 h

Design

  • Product colour: Black

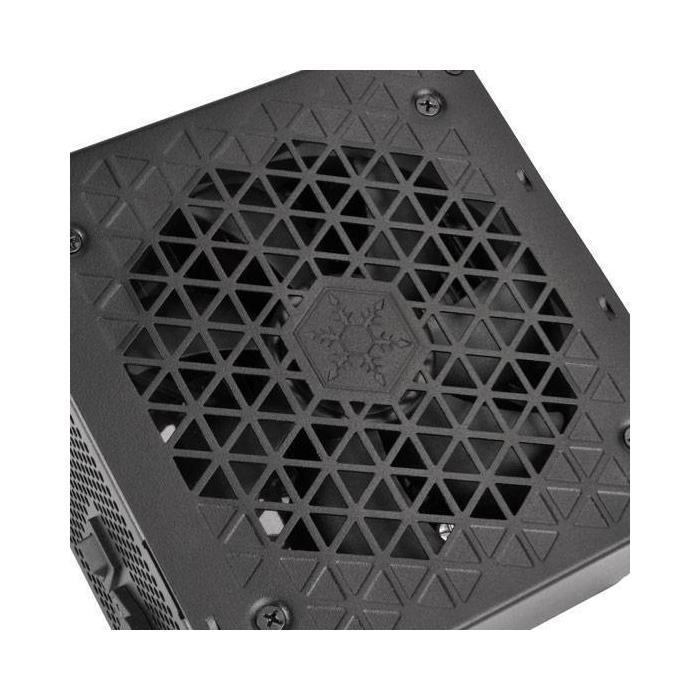

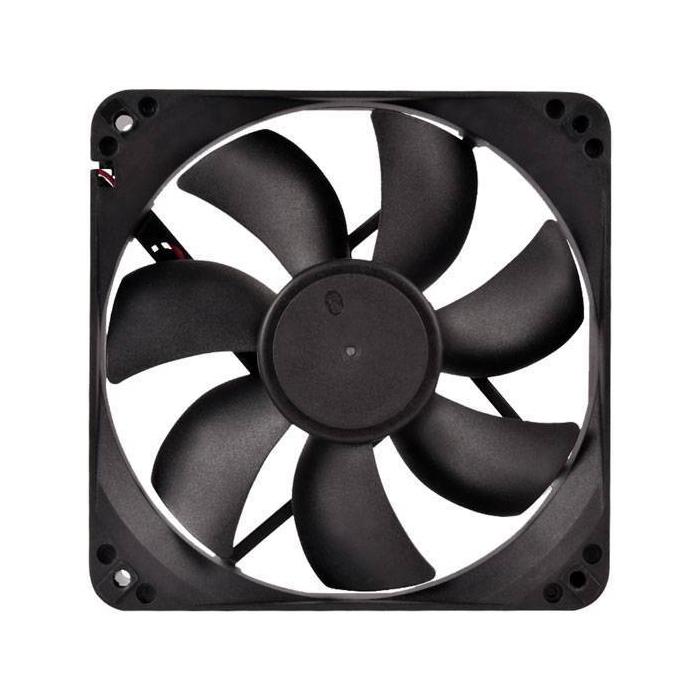

  • Fan diameter: 12 cm

Operational conditions

  • Operating temperature (T-T): 0 - 50 °C

Weight & dimensions

  • Width: 150 mm
  • Depth: 140 mm
  • Height: 86 mm
  • Weight: 2.13 kg

Packaging data

  • Package type: Box
