Description

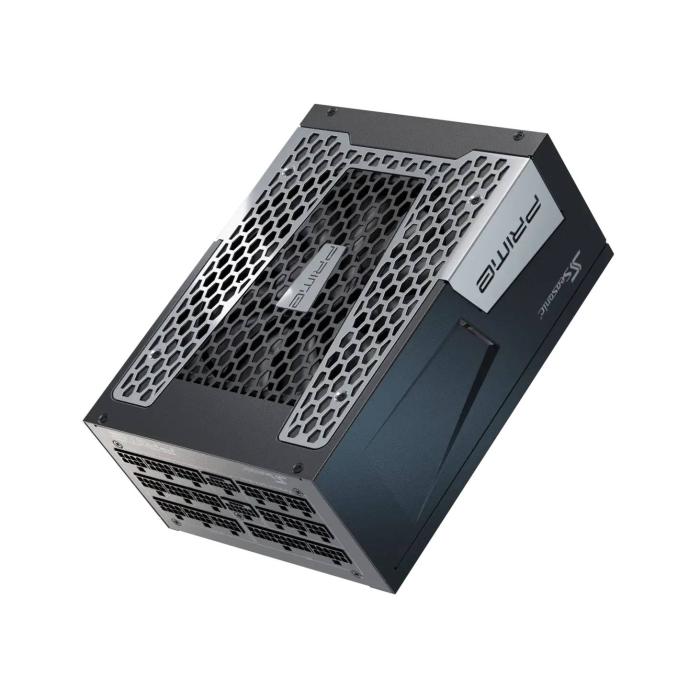

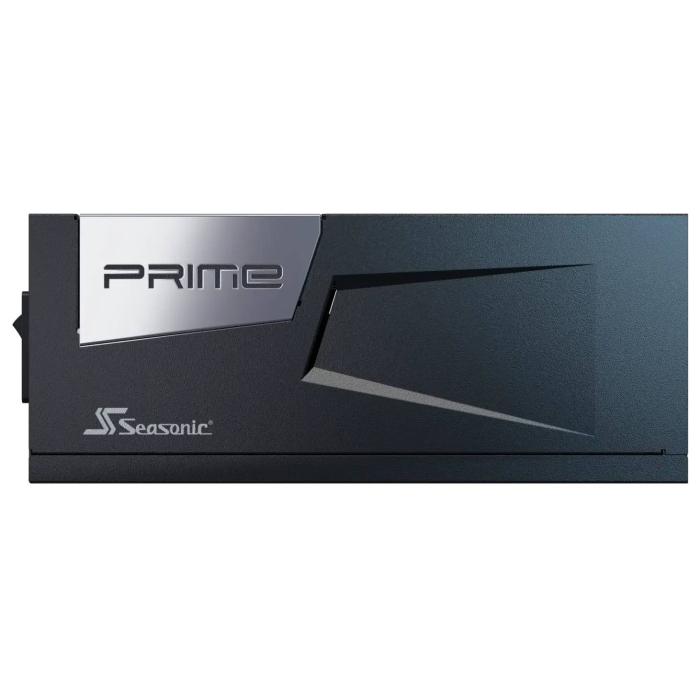

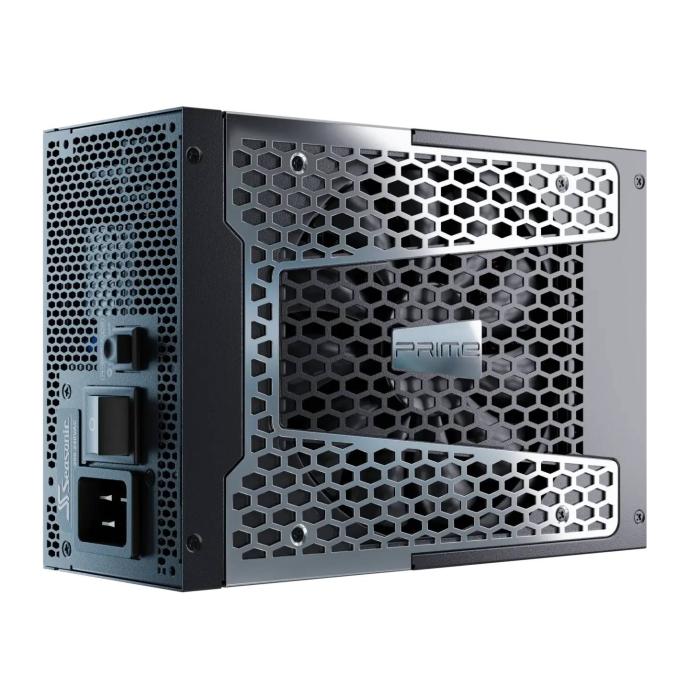

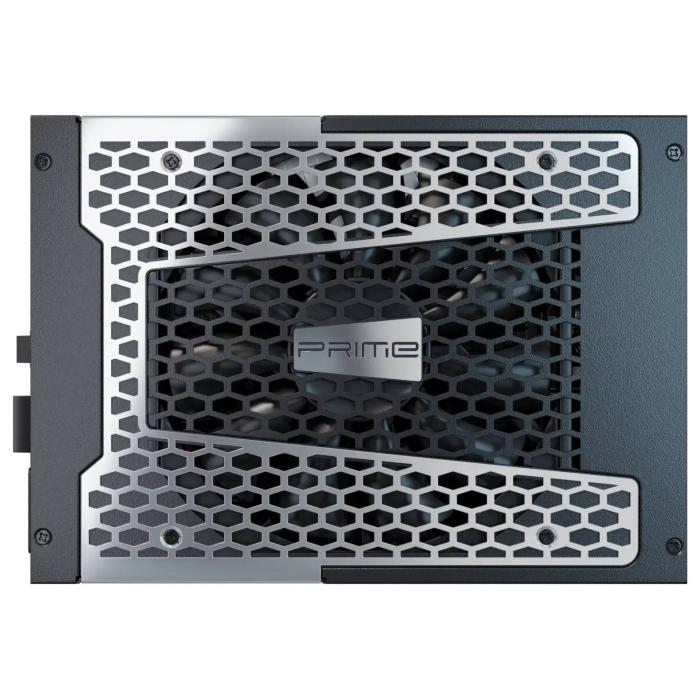

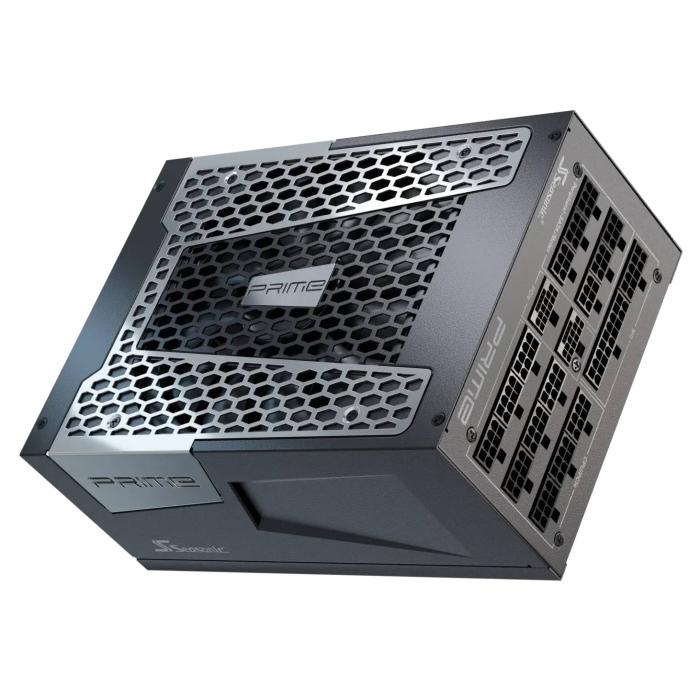

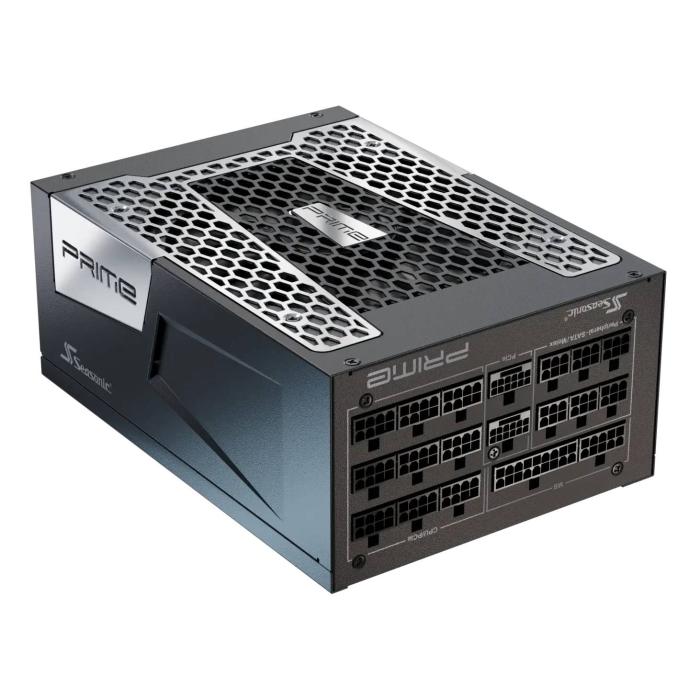

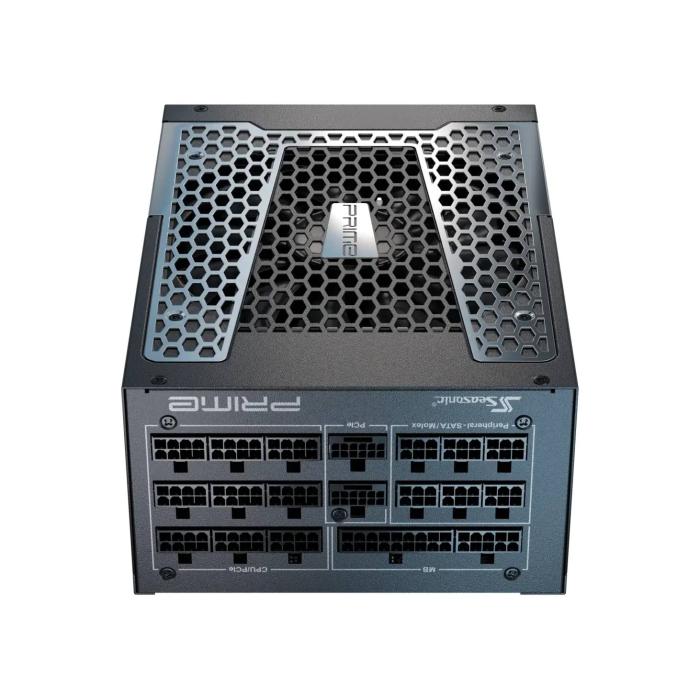

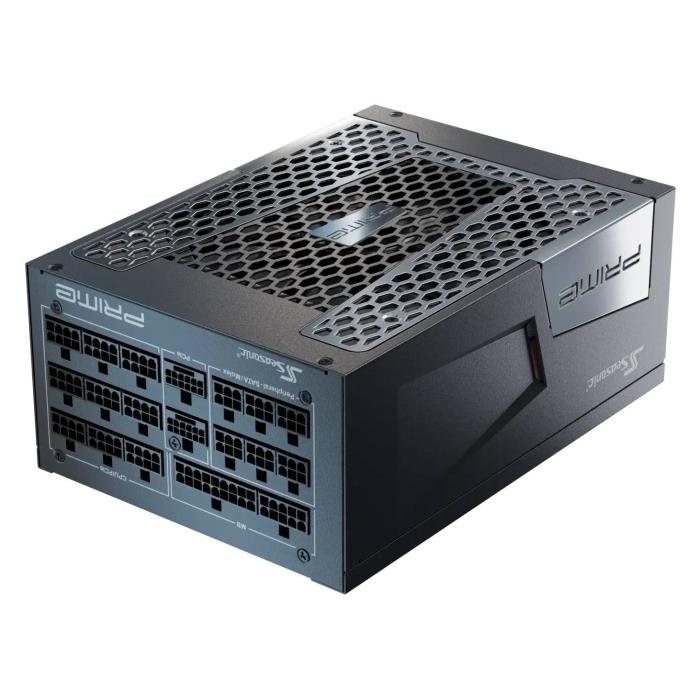

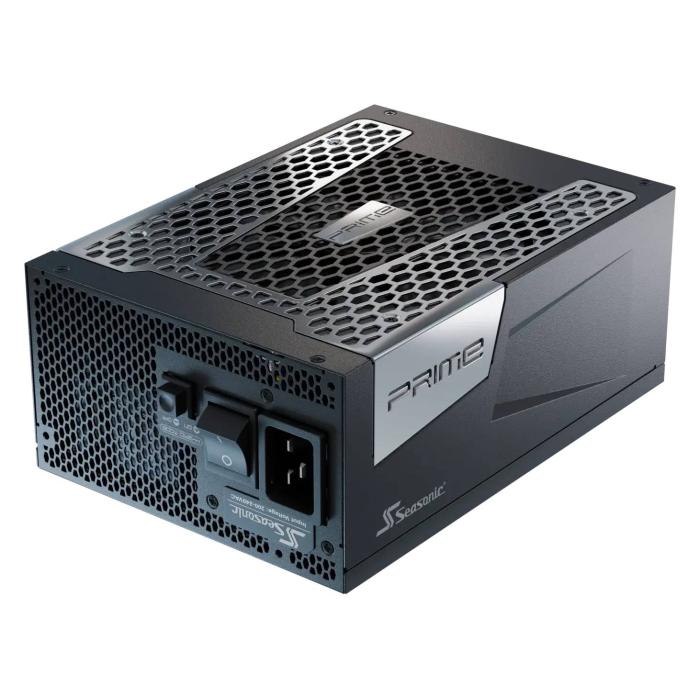

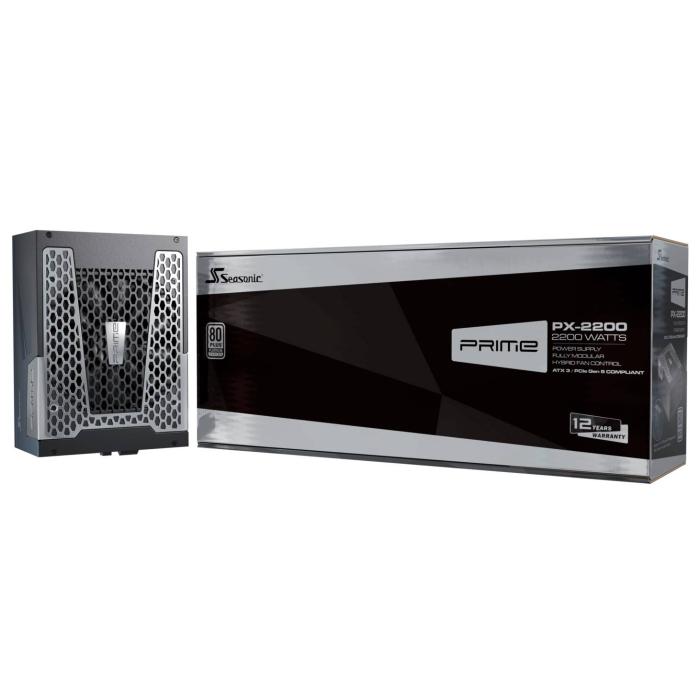

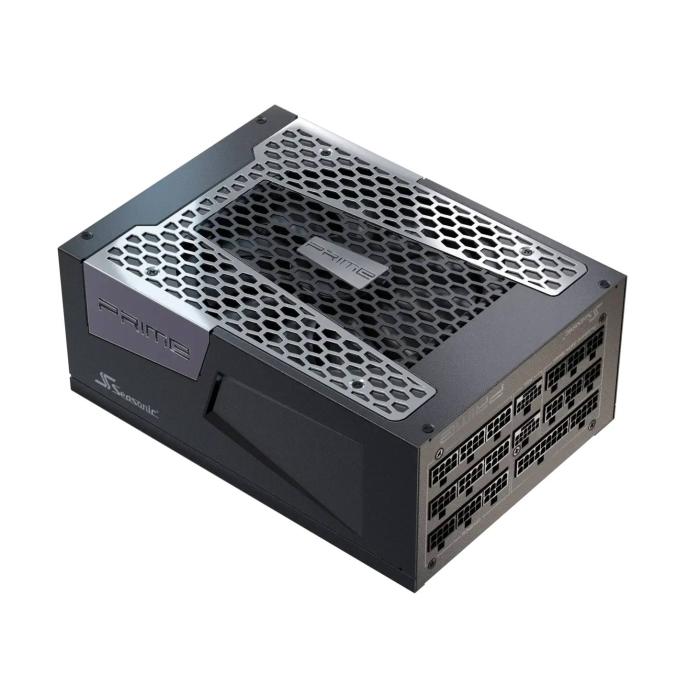

The Seasonic Prime PX 2200 W power supply in black features an ATX form factor with a 24-pin main connector and fully modular cabling, designed for installations demanding high power delivery. With a total power of 2200 W and a maximum output current of 183.3 A on the +12 V rail, it supports demanding loads while maintaining an AC input voltage of 115 to 240 V and an input current of 15 A. Its combined outputs include 125 W on +5 V and +3.3 V, 15 W on +5 VSB, and 6 W on -12 V, with maximum currents of 25 A for the +5 V and +3.3 V rails, 3 A on +5 VSB, and 0.5 A on -12 V.
Specifications
Power
- Total power: 2200 W
- AC input voltage: 115 - 240 V
- Input current: 15 A
- Combined power (+3.3V): 125 W
- Combined power (+12V): 2200 W
- Combined power (+5V): 125 W
- Combined power (-12V): 6 W
- Combined power (+5Vsb): 15 W
- Max output current (+3.3V): 25 A
- Max output current (+12V): 183.3 A
- Max output current (+5V): 25 A
- Max output current (-12V): 0.5 A
- Max output current (+5Vsb): 3 A
Ports & interfaces
- Motherboard power connector: 24-pin ATX
- Motherboard power cable length: 61 cm
- Number of SATA power connectors: 10
- SATA power cable length: 450, 470, 550, 570, 760, 860, 950 mm
- Peripheral (Molex) power connectors (4-pin): 3
- Peripheral (Molex) power cable length: 470, 690 mm
- EPS power connector (8-pin): Yes
- CPU power cable length: 70 cm

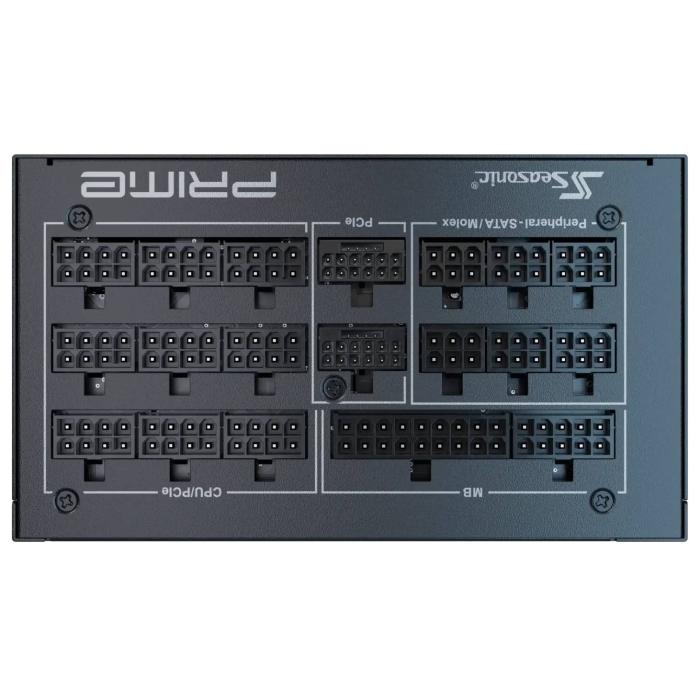

- Cabling type: Fully-Modular
Performance
- 80 PLUS certification: 80 PLUS Platinum
- Purpose: PC
- Power supply unit (PSU) form factor: ATX
- ATX version: 3.0
- Bearing technology: FDB
- Mean time between failures (MTBF): 150000 h
Design
- Product colour: Black
- Cooling type: Active
- Fan diameter: 13.5 cm
- Number of fans: 1 fan(s)
- On/off switch: Yes
Operational conditions
- Operating temperature (T-T): 0 - 50 °C
Packaging content
- Cables included: AC, CPU, PCIe, Peripheral (Molex), SATA
- Cable tie(s) included: Yes
Certificates
- Compliance certificates: CCC, CE, REACH, RoHS, WEEE
Weight & dimensions
- Width: 150 mm
- Depth: 210 mm
- Height: 86 mm
Packaging data
- Package type: Box
