Description

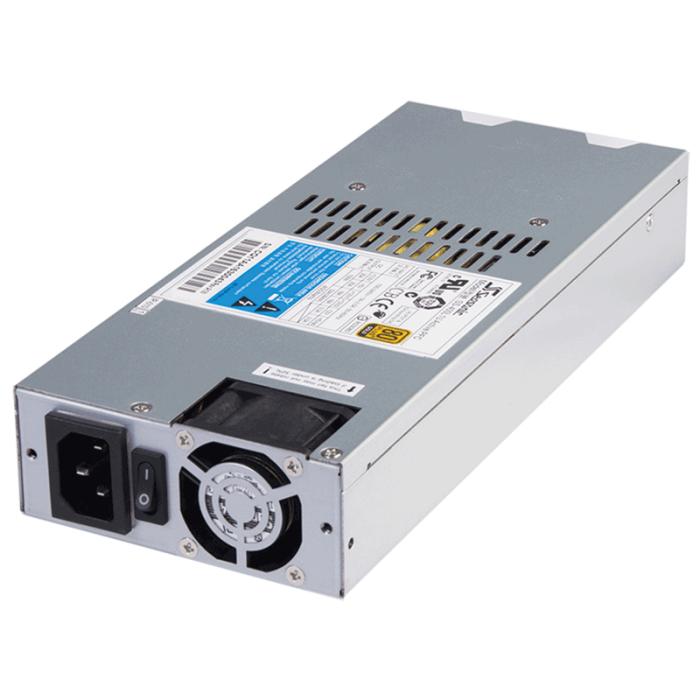

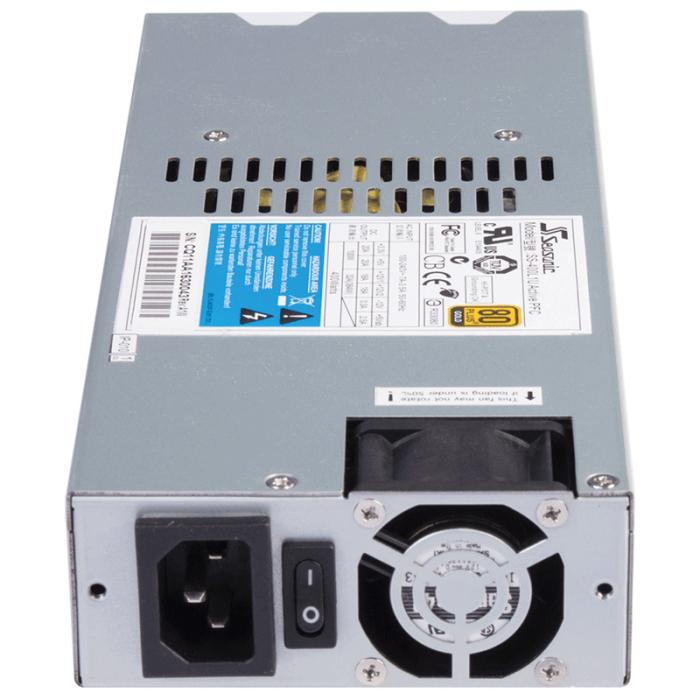

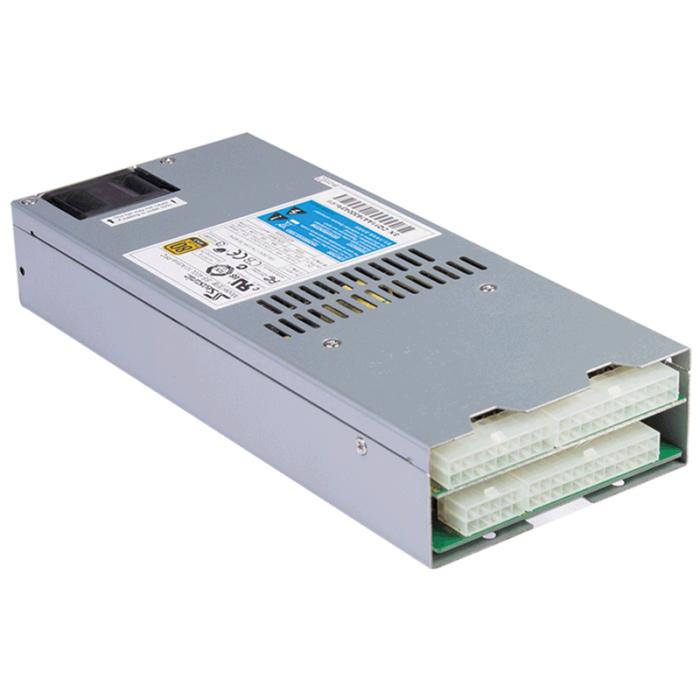

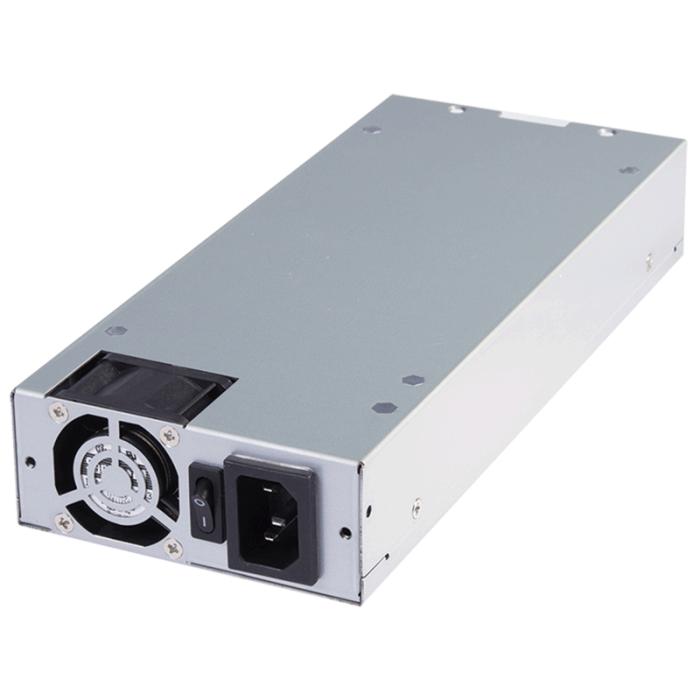

The Seasonic SS-500 L1U 500 W power supply unit in 1U format and grey colour offers a combined power of 480 W on the +12 V rail with a maximum output current of 40 A. Its fully modular design facilitates cable management in compact chassis, while its 80 PLUS Gold certified efficiency reaches 87% for stable energy performance. It includes protection against overvoltage, overcurrent and short circuit, with alternating current input from 100 to 240 V and frequency of 50 to 60 Hz. The combined power for +5 V, +3.3 V and +5 VSB is 100 W, 100 W and 12.5 W respectively, with maximum currents of 20 A, 20 A and 2.5 A, in addition to -12 V at 3.6 W and 0.3 A.
Specifications
Power
- Total power: 500 W
- AC input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
- Power Factor Correction (PFC) type: Active
- Combined power (+3.3V): 100 W
- Combined power (+12V): 480 W
- Combined power (+5V): 100 W
- Combined power (-12V): 3.6 W
- Combined power (+5Vsb): 12.5 W
- Max output current (+3.3V): 20 A
- Max output current (+12V): 40 A
- Max output current (+5V): 20 A
- Max output current (-12V): 0.3 A
- Max output current (+5Vsb): 2.5 A
- Efficiency: 87%
- Power protection features: Over power, Over voltage, Short circuit
Ports & interfaces
- Cabling type: Fully-Modular
Performance
- 80 PLUS certification: 80 PLUS Gold
- Purpose: PC
- Power supply unit (PSU) form factor: 1U
- Bearing technology: Ball bearing
- Mean time between failures (MTBF): 100000 h
Design
- Product colour: Grey
- Fan diameter: 4 cm
- On/off switch: Yes
Safety regulation & standards
- Safety: CB, cUL, TUV
Weight & dimensions
- Width: 100 mm
- Depth: 235 mm
- Height: 40 mm
