Description
Specifications
Power
- Total power: 750 W
- AC input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
- Input current: 10 - 5 A
- Combined power (+3.3V): 130 W
- Combined power (+12V): 744 W
- Combined power (+5V): 130 W
- Combined power (-12V): 3.6 W
- Combined power (+5Vsb): 15 W
- Max output current (+3.3V): 20 A
- Max output current (+12V): 62 A
- Max output current (+5V): 20 A
- Max output current (-12V): 0.3 A
- Max output current (+5Vsb): 3 A
- Power protection features: Over current, Over voltage, Short circuit

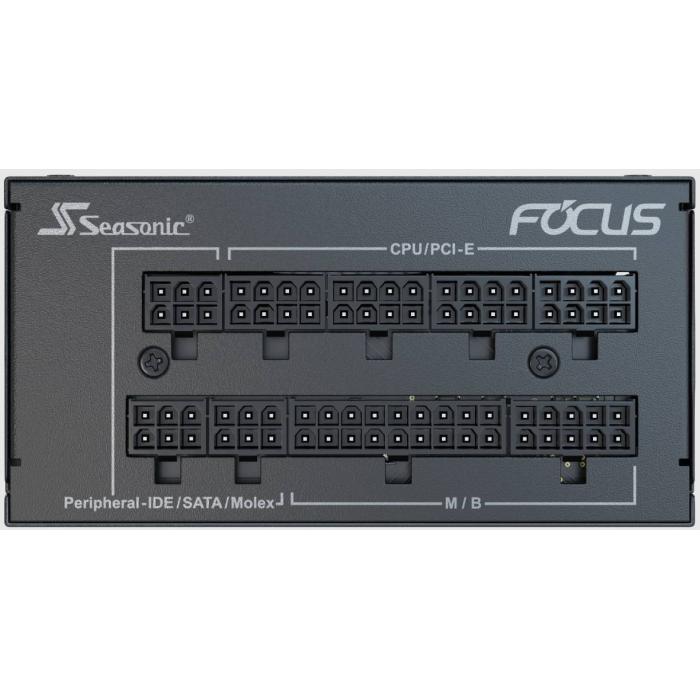

Ports & interfaces
- Motherboard power connector: 20+4 pin ATX
- Motherboard power cable length: 35 cm
- Number of SATA power connectors: 6
- Peripheral (Molex) power connectors (4-pin): 3
- PCI Express power connectors (8-pin): 4
- Cabling type: Fully-Modular
Performance
- 80 PLUS certification: 80 PLUS Platinum
- Purpose: PC
- Power supply unit (PSU) form factor: CFX
- Bearing technology: FDB
- Mean time between failures (MTBF): 100000 h
Design
- Product colour: Black
- Cooling type: Active
- Fan diameter: 9.2 cm
- Number of fans: 1 fan(s)
- On/off switch: Yes
Operational conditions
- Operating temperature (T-T): 0 - 50 °C
Packaging content
- Cables included: AC, PCIe, Peripheral (Molex), Peripheral (Molex) to SATA 3.3, SATA
- Cable tie(s) included: Yes
Certificates
- Certification: cTUVus, TUV, CB, CCC, BSMI, EAC, CE, Energy Star, RoHS, WEEE, ErP Lot 6, REACH
Weight & dimensions
- Width: 125 mm
- Depth: 100 mm
- Height: 63.5 mm
Packaging data
- Package type: Box
