Description
The Seasonic G12 GM power supply unit in its black 650 W version delivers a combined power of 648 W on the +12 V rail, with a maximum current of 45 A, and manages the other rails with outputs of up to 20 A on +5 V and +3.3 V, plus 2.5 A on +5Vsb and 3.6 A on -12V. Its semi-modular cabling includes a main 20+4 pin ATX connector with a length of 55 cm, facilitating internal case organisation. With an alternating current input of 100-240 V at 50/60 Hz and an input current of 10 A, it incorporates protections against overcurrent, overvoltage and short circuit. This Seasonic model, categorised within ATX power supplies, is designed to power desktop systems with requirements of up to 650 watts stably.
Specifications
Power
- Combined power (+3.3V): 100 W
- Total power: 650 W
- AC input voltage: 100 - 240 V
- AC input frequency: 50/60 Hz
- Input current: 10 A
- Combined power (+12V): 648 W
- Combined power (+5V): 100 W
- Combined power (-12V): 3.6 W
- Combined power (+5Vsb): 12.5 W
- Max output current (+3.3V): 20 A
- Max output current (+12V): 45 A
- Max output current (+5V): 20 A
- Max output current (-12V): 3.6 A
- Max output current (+5Vsb): 2.5 A
- Power protection features: Over current, Over voltage, Short circuit
Ports & interfaces
- Peripheral (Molex) power cable length: 690 mm
- PCI Express power cable length: 70 cm
- Motherboard power connector: 20+4 pin ATX
- Motherboard power cable length: 55 cm
- Number of SATA power connectors: 6
- Peripheral (Molex) power connectors (4-pin): 3
- PCI Express power connectors (6+2 pin): 2
- Cabling type: Semi-Modular
Performance
- 80 PLUS certification: 80 PLUS Gold
- Purpose: PC
- Power supply unit (PSU) form factor: ATX
- Bearing technology: Sleeve
- Mean time between failures (MTBF): 100000 h
Design
- Product colour: Black
- Cooling type: Active
- Fan diameter: 12 cm
- Number of fans: 1 fan(s)
- On/off switch: Yes
Operational conditions
- Operating temperature (T-T): 0 - 50 °C

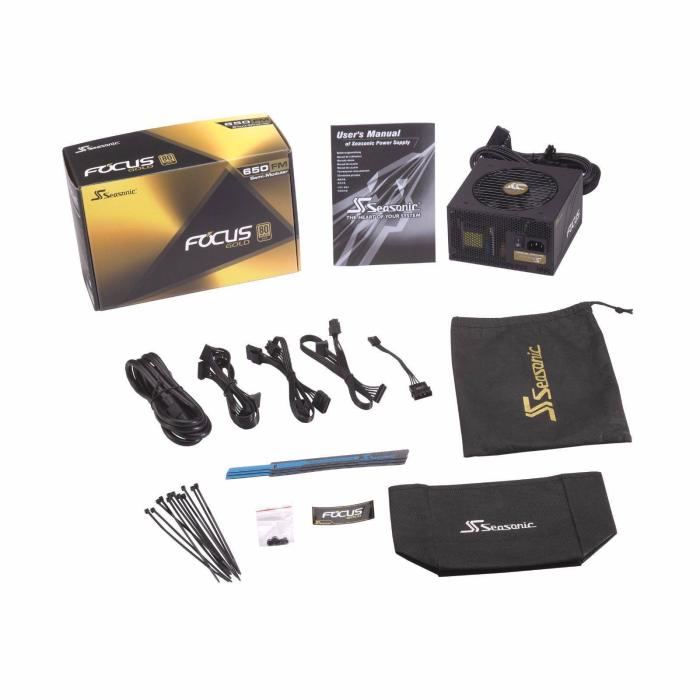

Packaging content
- Cable tie(s) included: Yes
- Cables included: AC, PCIe, Peripheral (Molex), SATA
Certificates
- Compliance certificates: CE, RoHS
Weight & dimensions
- Width: 150 mm
- Depth: 140 mm
- Height: 86 mm
Packaging data
- Package type: Box
Logistics data
- Warranty period: 5 year(s)
