Seasonic SSP-250SUB power supply unit 250 W Flex ATX Silver

Product 1 image

Product 2 image

Product 3 image

Product 4 image

Product 5 image

Product 6 image

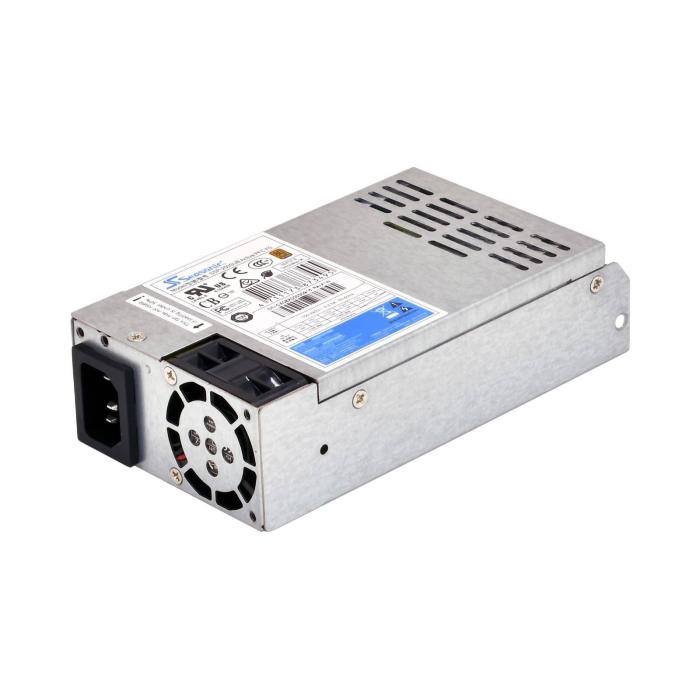

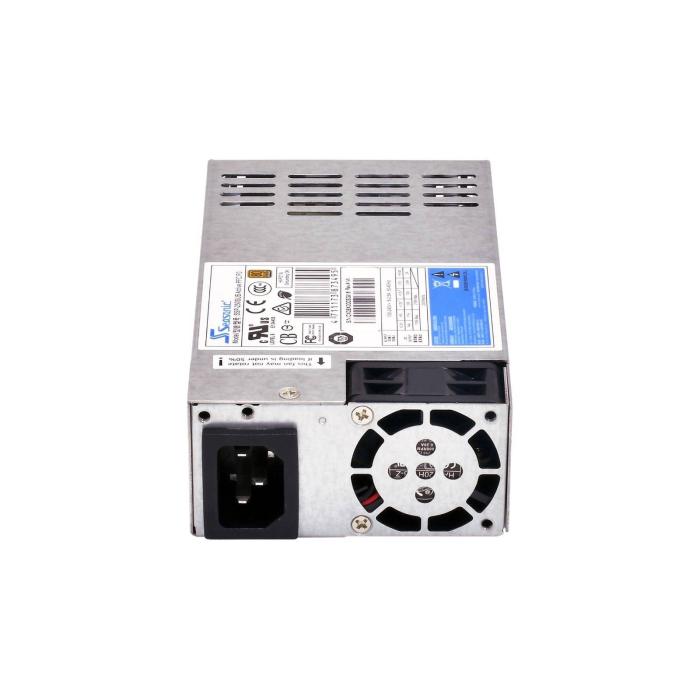

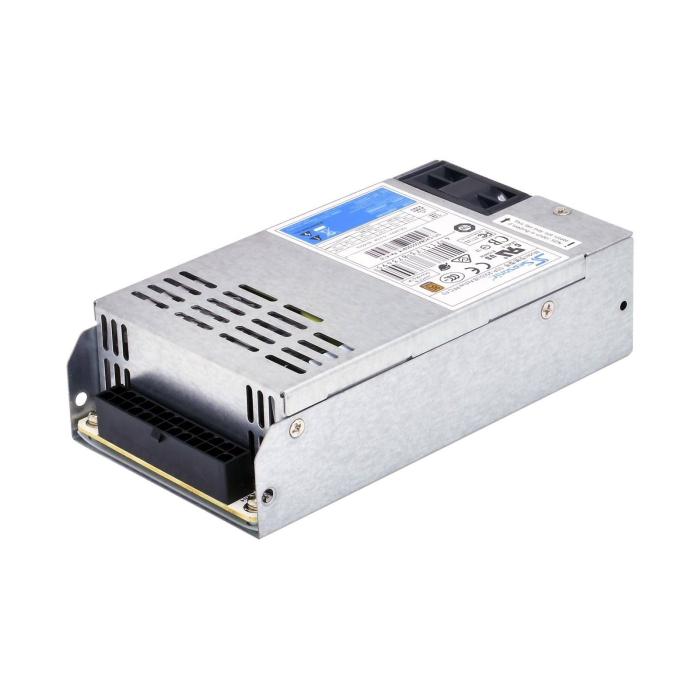

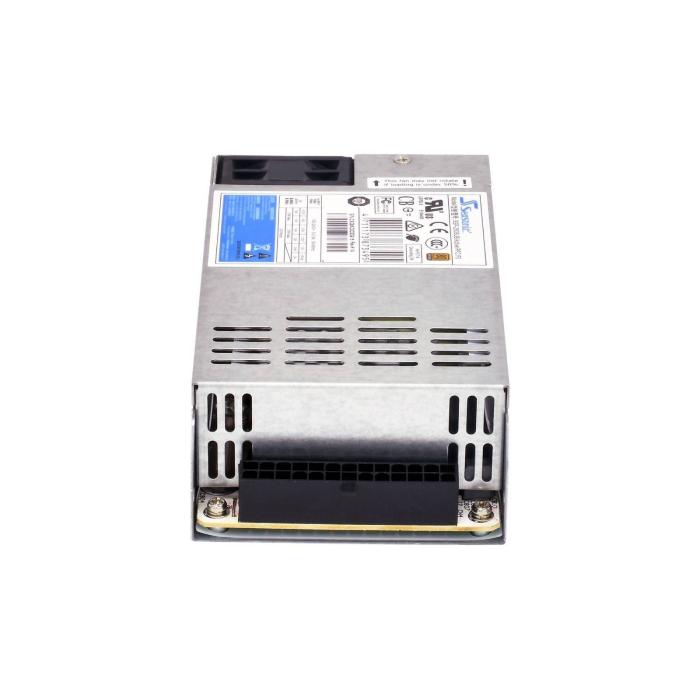

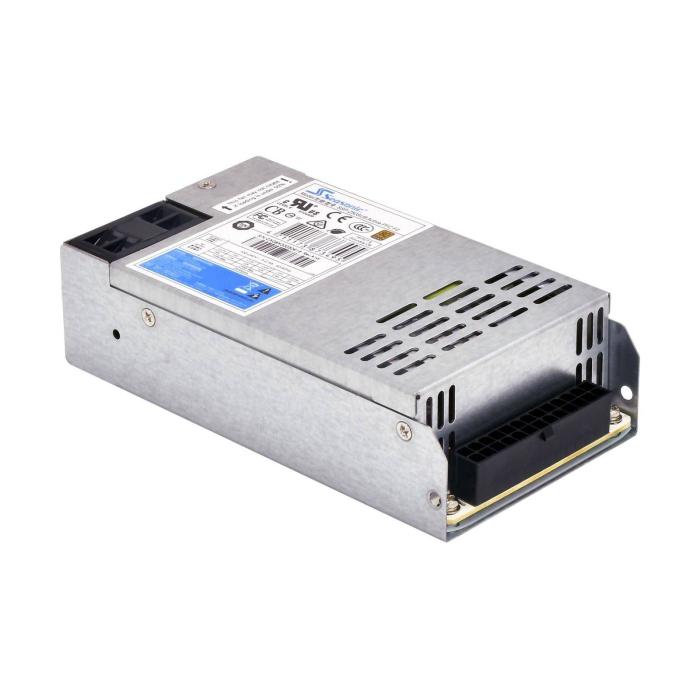

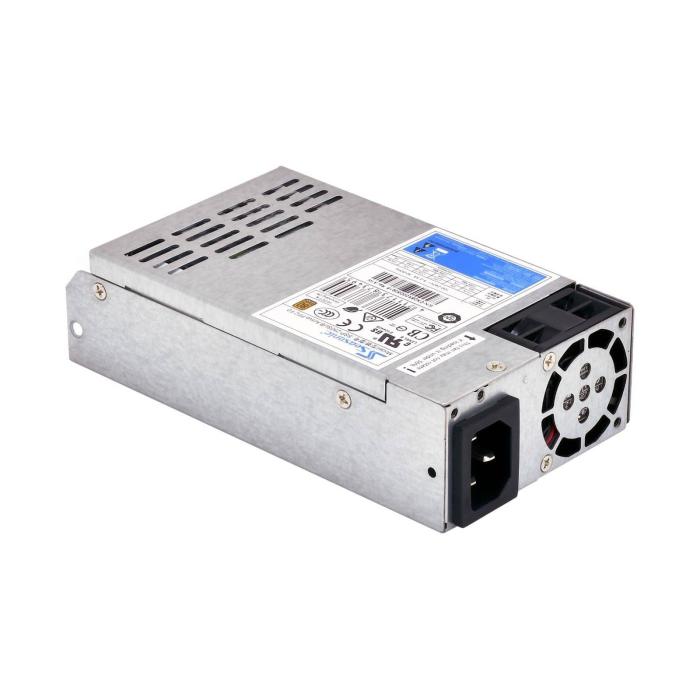

Seasonic SSP-250SUB power supply unit 250 W Flex ATX Silver

Not avaliable

Amount

Brand: SEASONIC

SKU: 113969 PRC: 355823 EAN: 4711173873495 PN: SSP-250SUB

Description

Specifications

Power

Total power: 250 W
AC input voltage: 100 - 240 V
AC input frequency: 47 - 63 Hz
Power factor: 0.95
Power Factor Correction (PFC) type: Active
Combined power (+3.3V): 110 W
Combined power (+12V): 216 W
Combined power (+5V): 110 W
Combined power (-12V): 9.6 W
Combined power (+5Vsb): 10 W
Max output current (+3.3V): 14 A
Max output current (+12V1): 12 A
Max output current (+12V2): 12 A
Max output current (+5V): 7 A
Max output current (-12V): 0.8 A
Max output current (+5Vsb): 2 A
Power protection features: Over power, Over voltage, Short circuit

Ports & interfaces

Cabling type: Fully-Modular

Performance

80 PLUS certification: 80 PLUS Bronze
Purpose: Server
Power supply unit (PSU) form factor: Flex ATX
ATX version: 2.31
Bearing technology: Ball bearing
Mean time between failures (MTBF): 100000 h

Design

Product colour: Silver
Fan diameter: 4 cm
Number of fans: 1 fan(s)

Safety regulation & standards

Safety: CB, cUL, TUV, CCC, BSMI

Weight & dimensions

Width: 81.5 mm
Depth: 150 mm
Height: 40.5 mm
