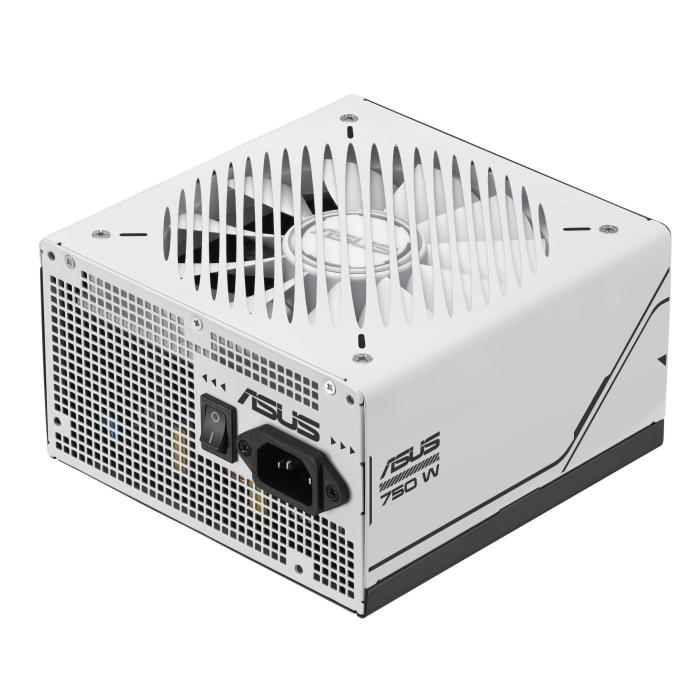

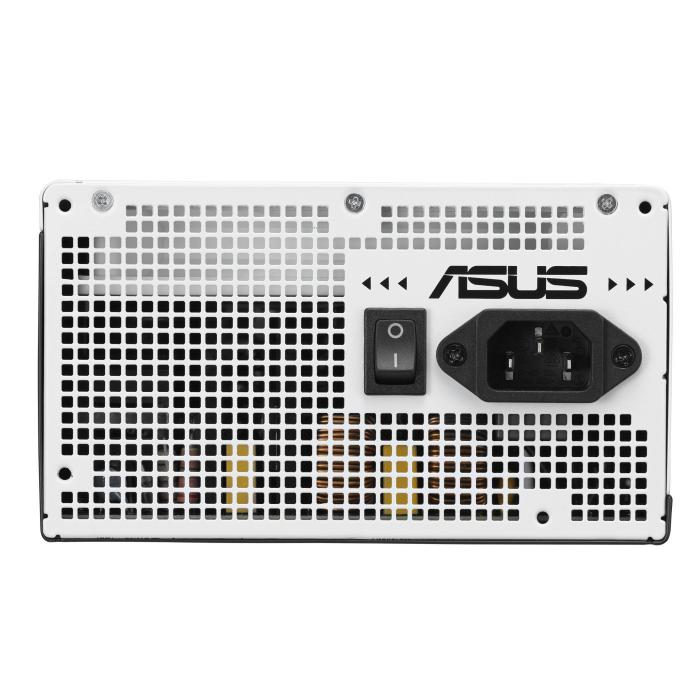

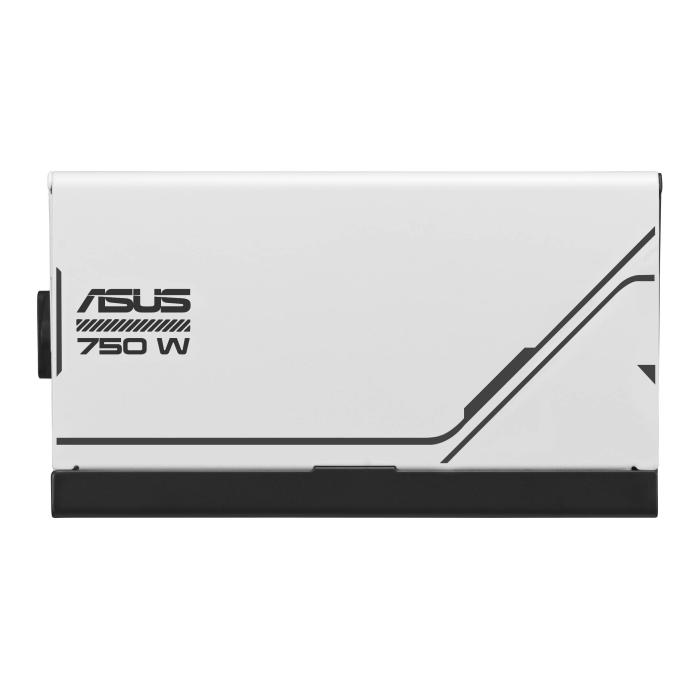

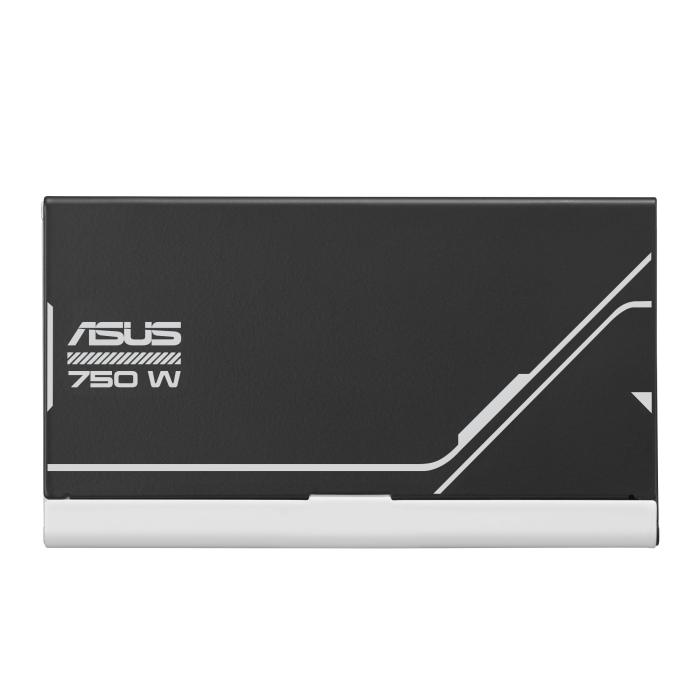

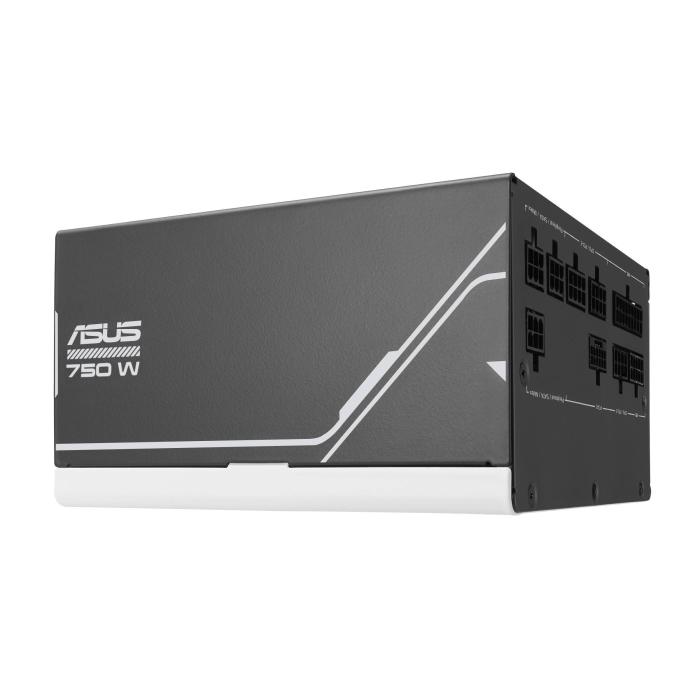

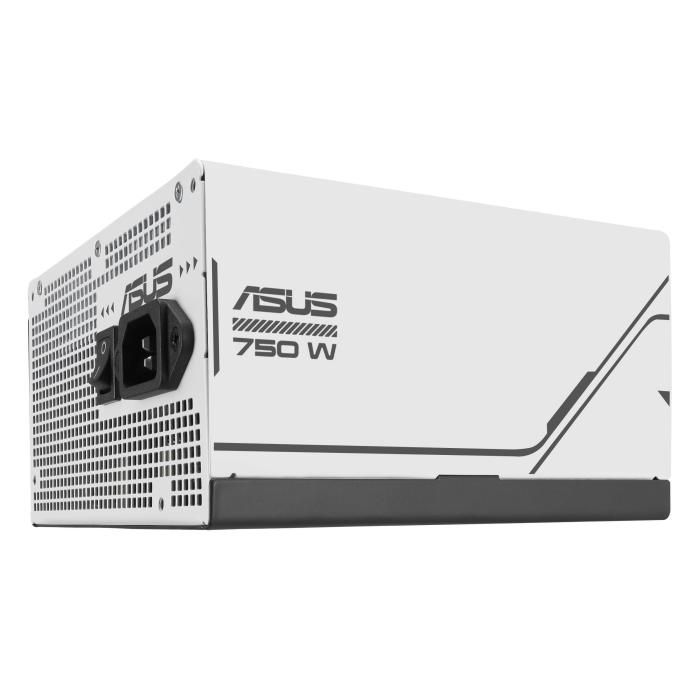

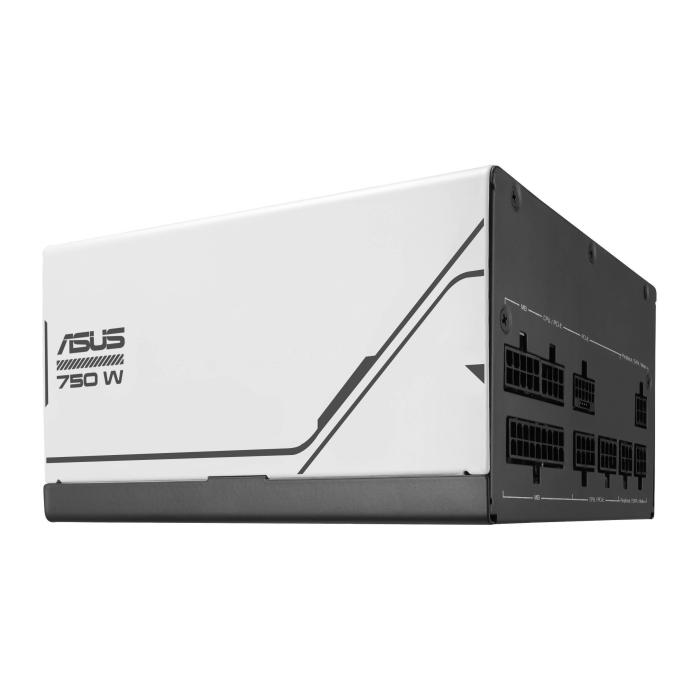

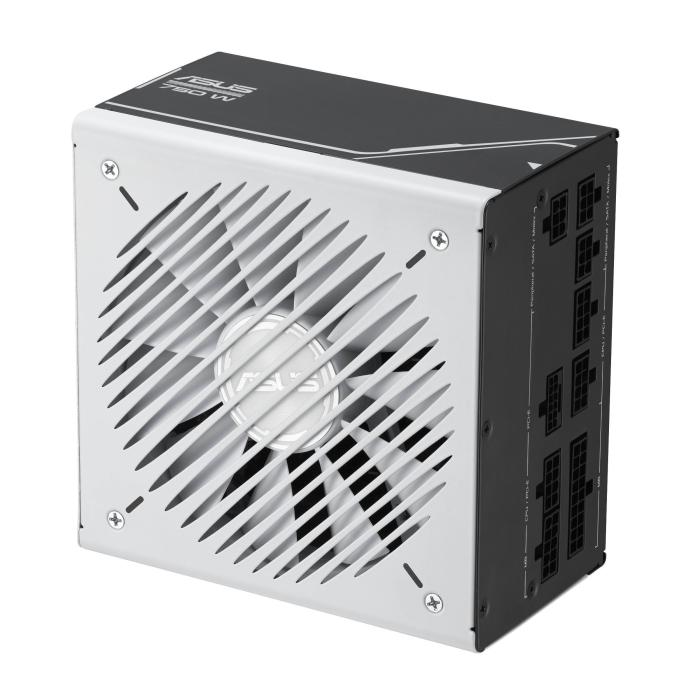

ASUS Prime AP-750G power supply unit 750 W 20+4 pin ATX ATX Black, White

$117.12

$117.12 without VAT

Amount

Brand: ASUS

SKU: 109079 PRC: 577791 EAN: 4711387192962 PN: AP-750G

Description

ASUS Prime AP-750G, 750 W, 100 - 240 V, Active, 110 W, 744 W, 110 W

Specifications

Power

Total power: 750 W
AC input voltage: 100 - 240 V
Power Factor Correction (PFC) type: Active
Combined power (+3.3V): 110 W
Combined power (+12V): 744 W
Combined power (+5V): 110 W
Combined power (-12V): 3.6 W
Combined power (+5Vsb): 12.5 W
Max output current (+3.3V): 20 A
Max output current (+12V): 62 A
Max output current (+5V): 20 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 2.5 A
Efficiency: 92%
Power protection features: Over power, Over voltage, Overcharge, Overheating, Short circuit, Under voltage

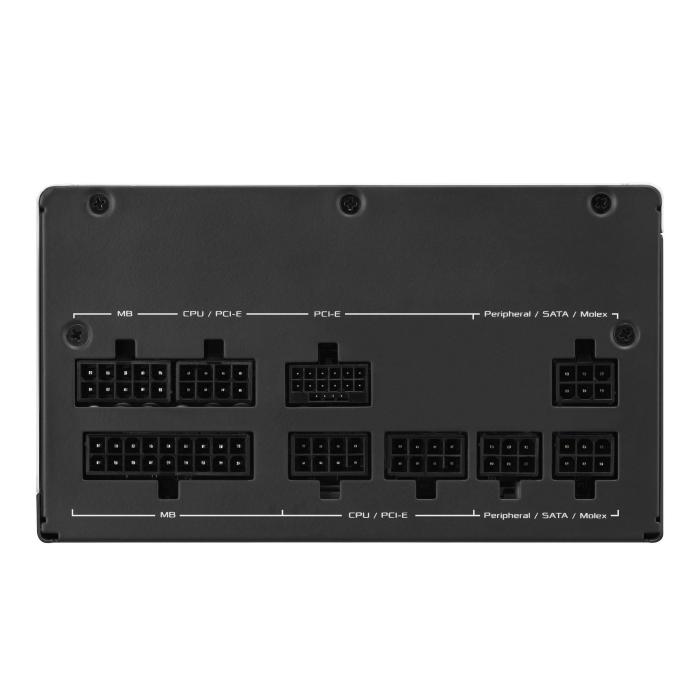

Ports & interfaces

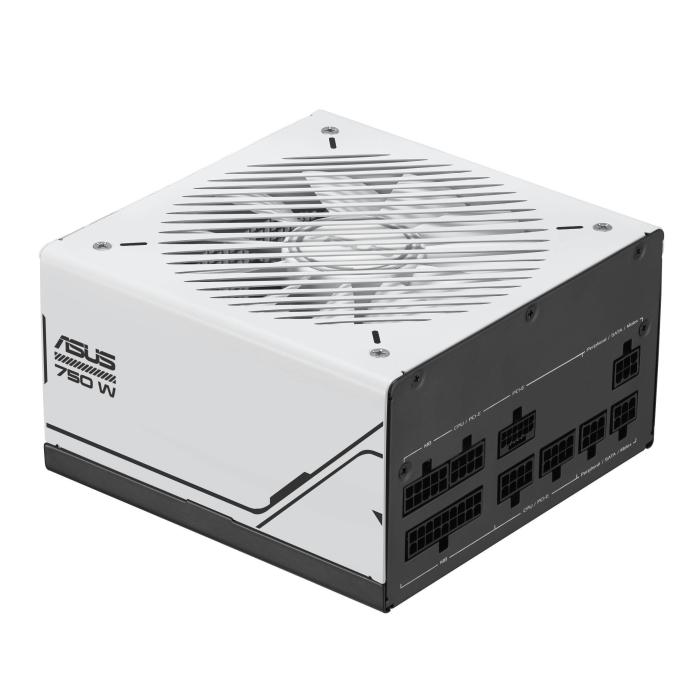

Motherboard power connector: 20+4 pin ATX
Motherboard power cable length: 61 cm
Number of SATA power connectors: 5
SATA power cable length: 120, 400 mm
Peripheral (Molex) power connectors (4-pin): 3
Peripheral (Molex) power cable length: 150, 400 mm
PCI Express power connectors (8-pin): 3
PCI Express power connectors (16-pin): 1
CPU P4 connector (4-pin): 2
CPU power connector (4+4 pin): Yes
CPU power cable length: 65 cm
ATX power connector (20+4 pin): Yes
Cabling type: Fully-Modular

Performance

80 PLUS certification: 80 PLUS Gold
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 3.0
Bearing technology: Ball bearing
Mean time between failures (MTBF): 120000 h

Design

Product colour: Black, White
Cooling type: Active
On/off switch: Yes

Packaging content

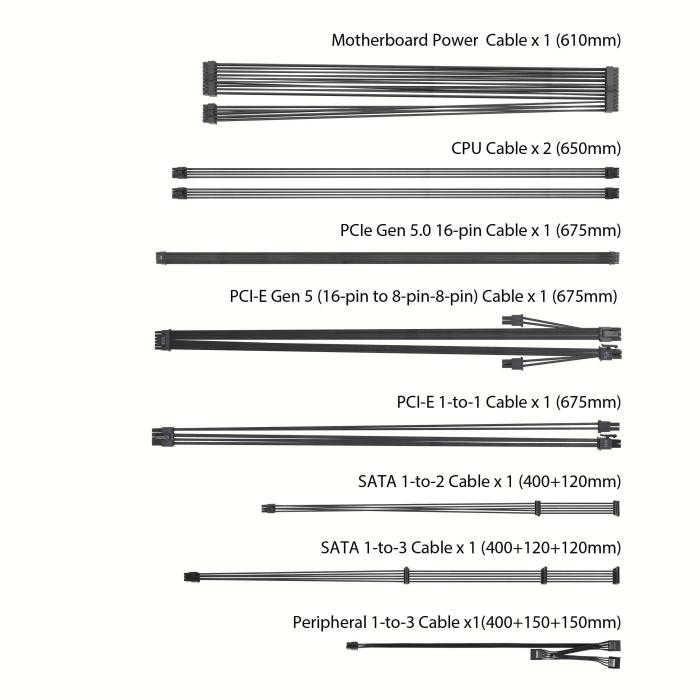

Cables included: AC, CPU, PCIe, Peripheral (Molex), SATA

Weight & dimensions

Width: 150 mm
Depth: 150 mm
Height: 86 mm
Weight: 1.47 kg

Packaging data

Package width: 346 mm
Package depth: 208 mm
Package height: 144 mm
Package weight: 2.88 kg
Package type: Box
