Mars Gaming MPZE750SIM power supply unit 750 W 24-pin ATX ATX White

Name: Mars Gaming MPZE750SIM power supply unit 750 W 24-pin ATX ATX White
Brand: MARS GAMING
SKU: 607321
Price: 56.84 EUR
Availability: InStock

More info

Brand: MARS GAMING

56.84 €

46.98 € without VAT

Stock available: 10 units.

Get it tomorrow / September 24

SKU: 117089 PRC: 607321 EAN: 8435693110798 PN: MPZE750SIM

Description

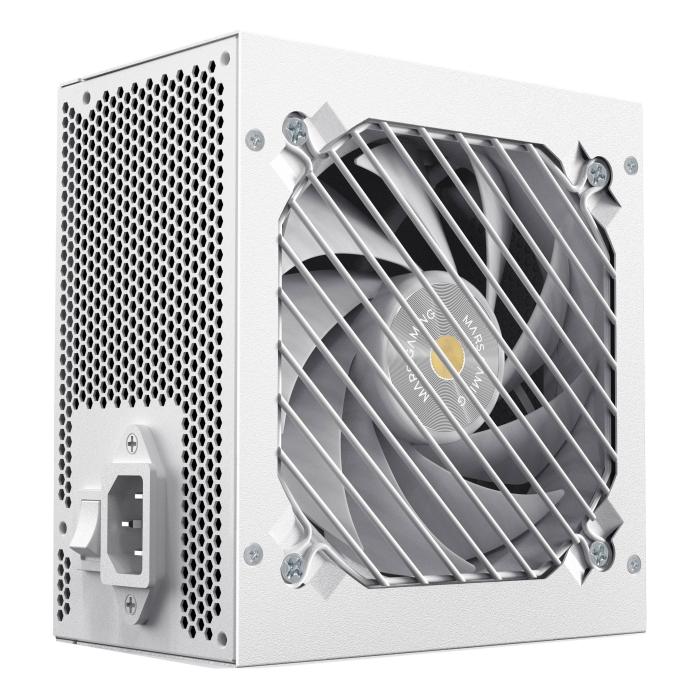

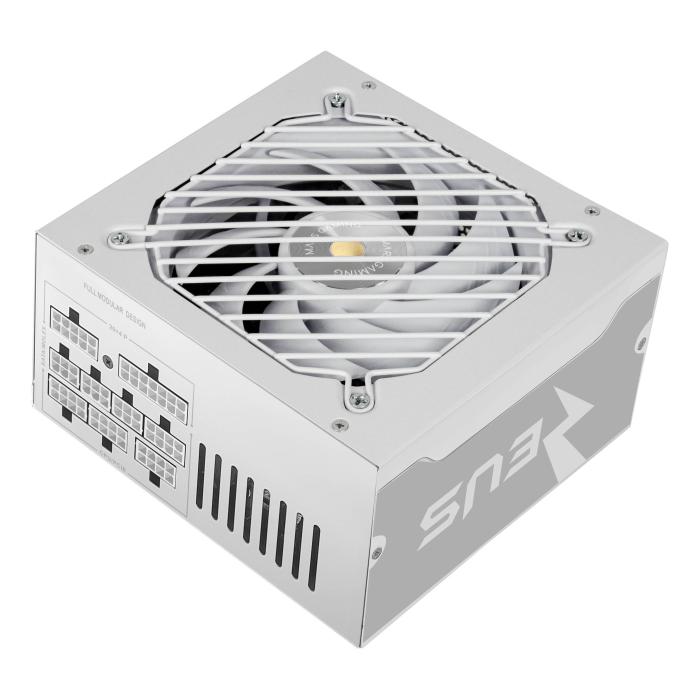

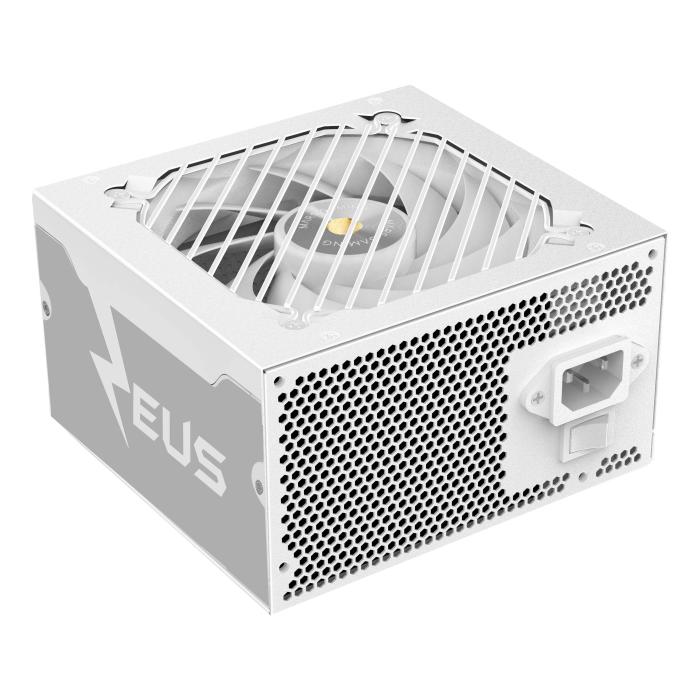

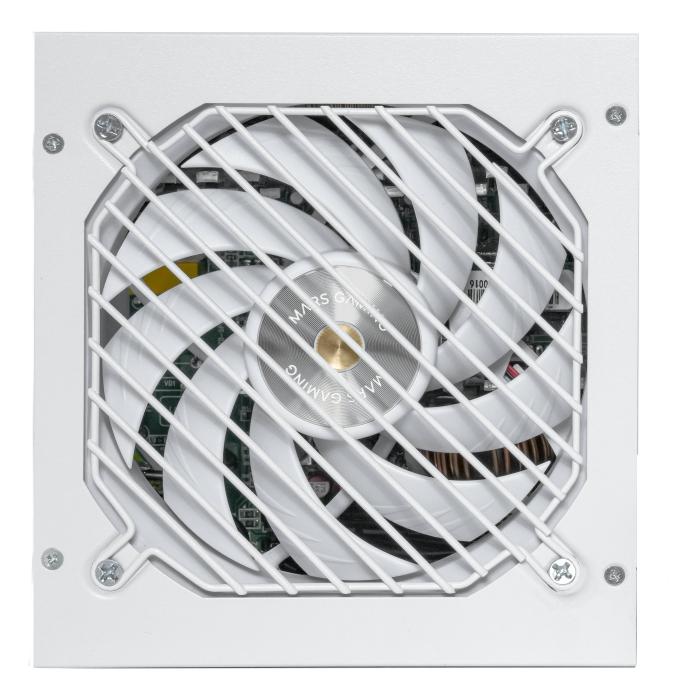

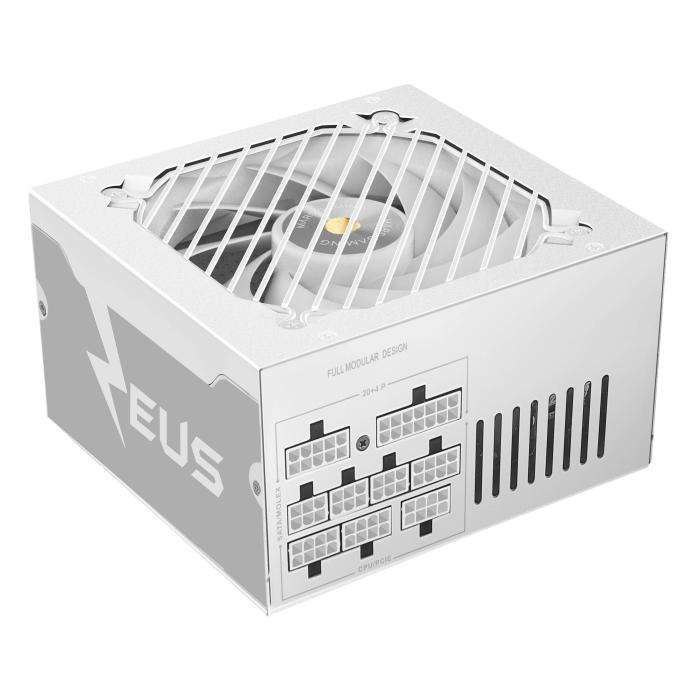

The Mars Gaming MPZE750SIM power supply unit is a 750 W model with 87% efficiency certification, designed to power systems with high-consumption components. It features a 24-pin ATX motherboard power connector and delivers a maximum output current of 62 A on the +12V rail, with a combined power of 744 W on that same rail. On the +3.3 V and +5 V lines it delivers up to 20 A per rail, with 110 W of combined power on each, while the +5Vsb rail reaches 3 A with 15 W. The power supply operates with an input voltage of 200 to 240 V and a frequency of 47 to 63 Hz, and includes active power factor correction. It includes protections against overcurrent, overvoltage, overload, short circuit, undervoltage and no-load operation. It has a form factor of 150 x 85 x 160 mm (width x height x depth), a weight of 1.55 kg and a white colour.

Specifications

Power

Total power: 750 W
AC input voltage: 200 - 240 V
AC input frequency: 47 - 63 Hz
Input current: 6.5 A
Power Factor Correction (PFC) type: Active
Combined power (+3.3V): 110 W
Combined power (+12V): 744 W
Combined power (+5V): 110 W
Combined power (-12V): 6 W
Combined power (+5Vsb): 15 W
Max output current (+3.3V): 20 A
Max output current (+12V): 62 A
Max output current (+5V): 20 A
Max output current (-12V): 0.5 A
Max output current (+5Vsb): 3 A
Efficiency: 87%
Power protection features: No load operation, Over current, Over power, Over voltage, Overload, Short circuit, Under voltage
