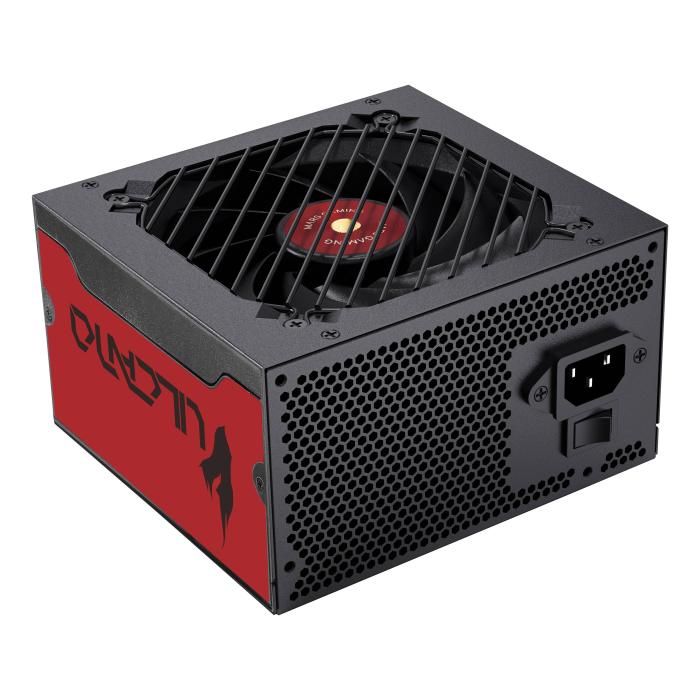

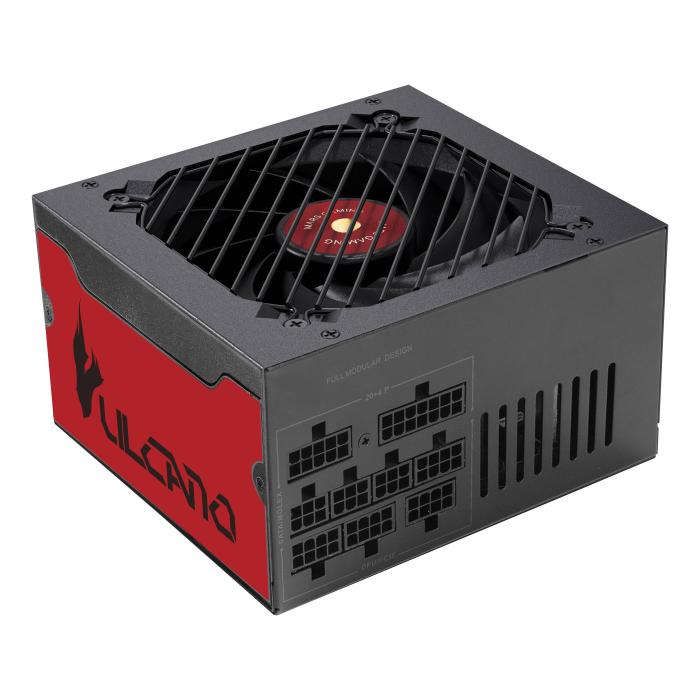

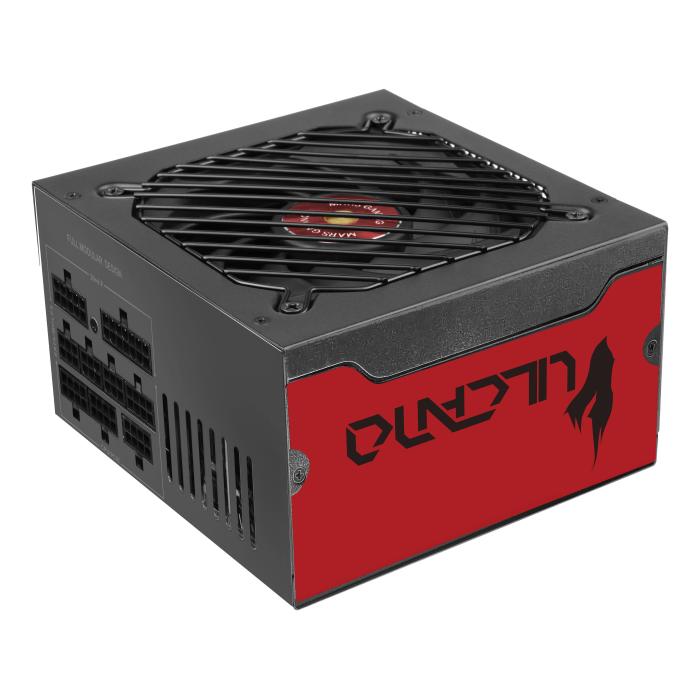

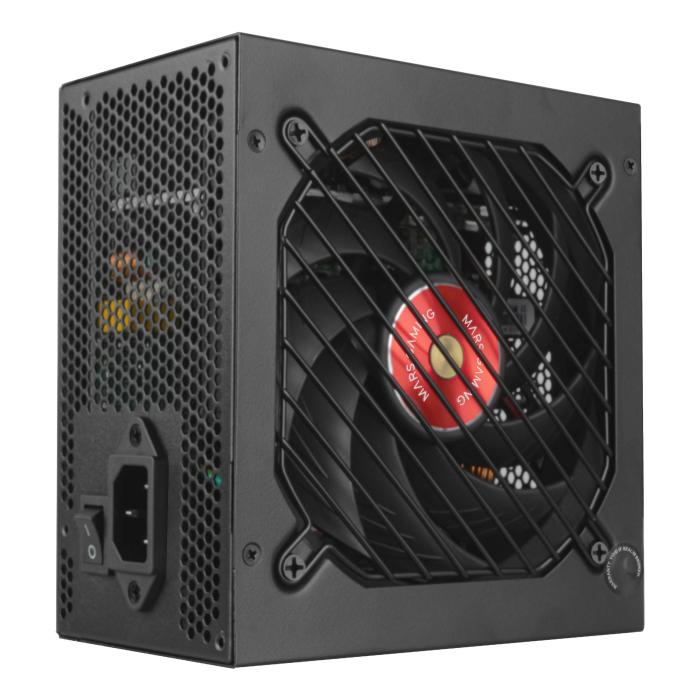

Mars Gaming MPVU750SIM power supply unit 750 W 24-pin ATX ATX Black, Red
More info
Brand: MARS GAMING
56.84 €
46.98 €
without VAT
Stock available: 16 units.
Get it
on the
September 22
/
September 23
SKU:
117083
PRC:
607322
EAN:
8435693110897
PN:
MPVU750SIM
Description
The Mars Gaming MPVU750SIM is a 750 W ATX power supply unit in black and red, designed to power desktop systems with demanding consumption. It offers 87% efficiency and incorporates active power factor correction, with an AC input voltage of 200 to 240 V and an input frequency of 47 to 63 Hz. Its main +12 V rail delivers up to 62 A and a combined power of 744 W, while the +3.3 V and +5 V rails reach 20 A each with 110 W combined. It also has +5 VSB outputs of 3 A, 15 W combined, and -12 V of 0.5 A, with 6 W combined. The protection system covers overcurrent, overvoltage, overpower, overload, short circuit and undervoltage. Its power connector for the motherboard is 24-pin ATX. It measures 150 x 85 x 160 mm (width x height x depth) and weighs 1.55 kg.
Specifications
Power
- Total power: 750 W
- AC input voltage: 200 - 240 V
- AC input frequency: 47 - 63 Hz
- Input current: 6.5 A
- Power Factor Correction (PFC) type: Active
- Combined power (+3.3V): 110 W
- Combined power (+12V): 744 W
- Combined power (+5V): 110 W
- Combined power (-12V): 6 W
- Combined power (+5Vsb): 15 W
- Max output current (+3.3V): 20 A
- Max output current (+12V): 62 A
- Max output current (+5V): 20 A
- Max output current (-12V): 0.5 A
- Max output current (+5Vsb): 3 A
- Efficiency: 87%
- Power protection features: No load operation, Over current, Over power, Over voltage, Overload, Short circuit, Under voltage
Ports & interfaces
- Motherboard power connector: 24-pin ATX
- Number of SATA power connectors: 6
- Peripheral (Molex) power connectors (4-pin): 3
- EPS power connector (4+4 pin): Yes
- PCI Express power connectors (6+2 pin): 4
- Number of EPS connectors: 2

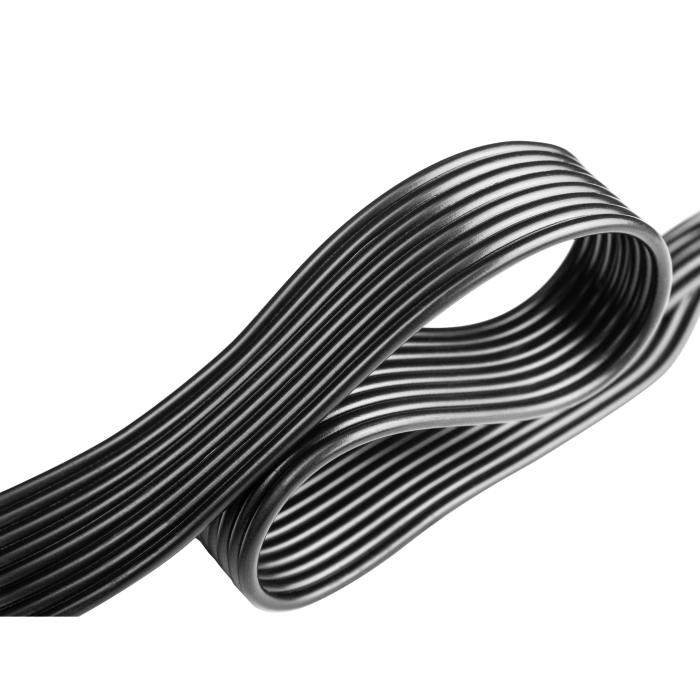

- Cabling type: Fully-Modular
Performance
- 80 PLUS certification: 80 PLUS Silver
- Purpose: PC
- Power supply unit (PSU) form factor: ATX
- Noise level: 14 dB
- Bearing technology: FDB
Design
- Product colour: Black, Red
- Cooling type: Active

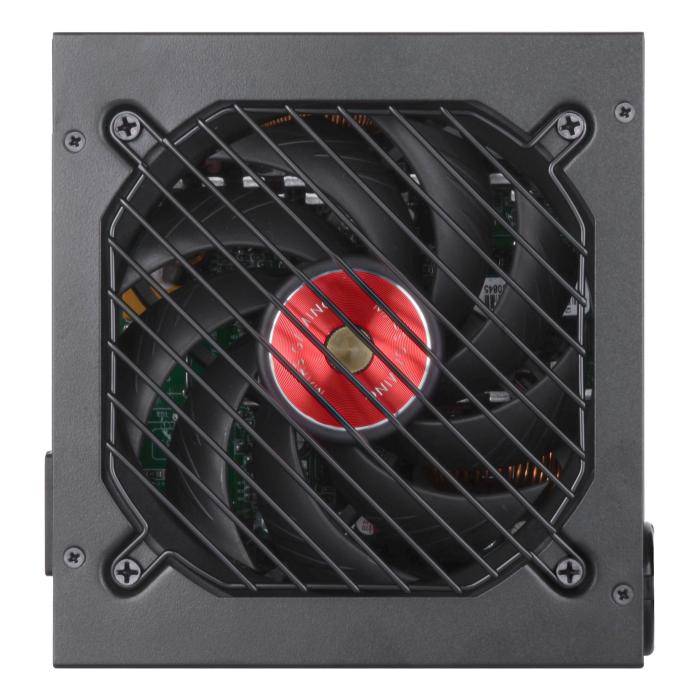

- Fan diameter: 14 cm
- Number of fans: 1 fan(s)
- Fan location: Top
- On/off switch: Yes
Certificates
- Compliance certificates: CE, RoHS, TÜV mark
Weight & dimensions
- Width: 150 mm
- Depth: 160 mm
- Height: 85 mm
- Weight: 1.55 kg
Packaging data
- Package width: 205 mm
- Package depth: 125 mm
- Package height: 238 mm
- Package type: Box
