Description

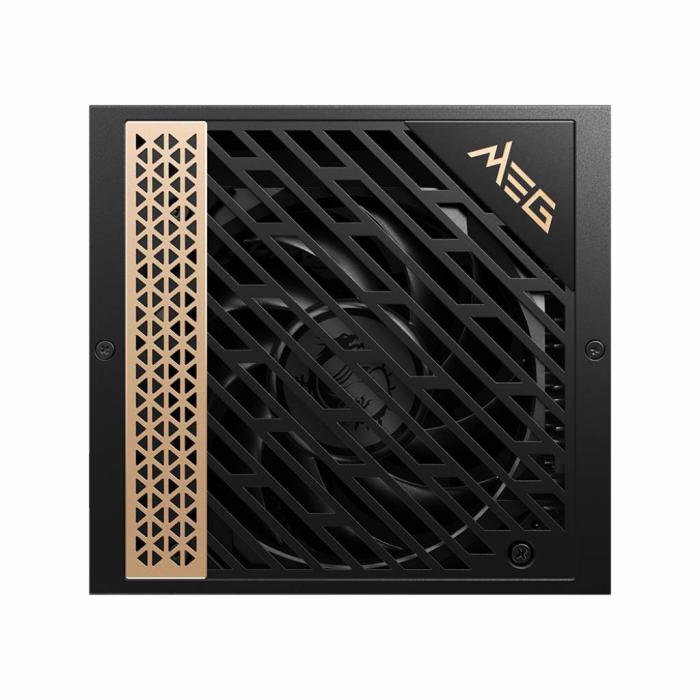

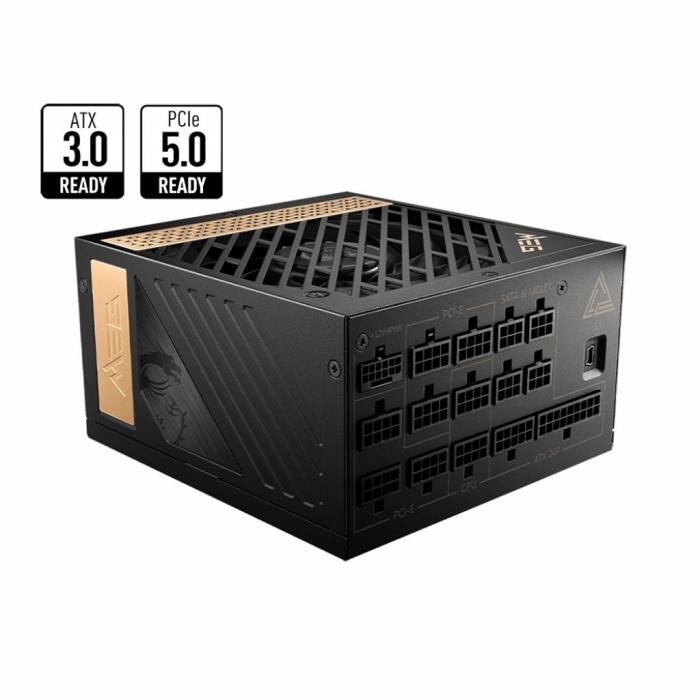

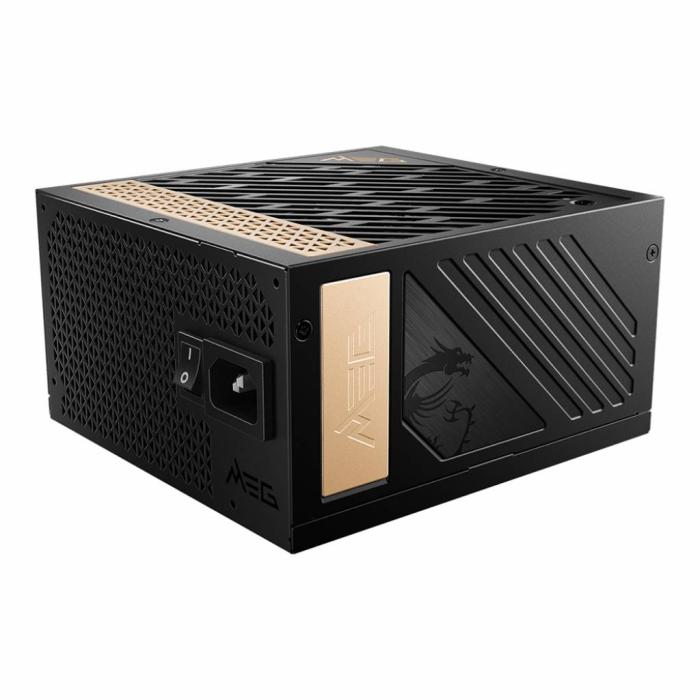

MSI MEG AI1300P PCIE5 power supply unit in black, with a total power of 1300 W and dimensions of 150 x 86 x 16 mm. It achieves an efficiency of 92% and supports an AC input voltage of 100 - 240 V with a frequency of 50 - 60 Hz. It features active power factor correction and offers a combined power of 1300 W on the +12 V rail. Its outputs deliver 25 A on +3.3 V, 25 A on +5 V and 25 A on +12 V, with 0.3 A on -12 V. It has protection against overcurrent, overvoltage, surge, short circuit and undervoltage. The cabling is fully modular and the power connector for the motherboard is 24-pin ATX, and it includes a connector for a floppy disk drive.
Specifications
Power
- Total power: 1300 W
- AC input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
- Maximum input current (@110V): 10 A
- Maximum input current (@220V): 5 A
- Power Factor Correction (PFC) type: Active
- Combined power (+3.3V): 130 W
- Combined power (+12V): 1300 W
- Combined power (+5V): 130 W
- Max output current (+3.3V): 25 A
- Max output current (+12V): 25 A
- Max output current (+5V): 25 A
- Max output current (-12V): 0.3 A
- Efficiency: 92%
- Power protection features: Over current, Over power, Over voltage, Short circuit, Under voltage
Ports & interfaces

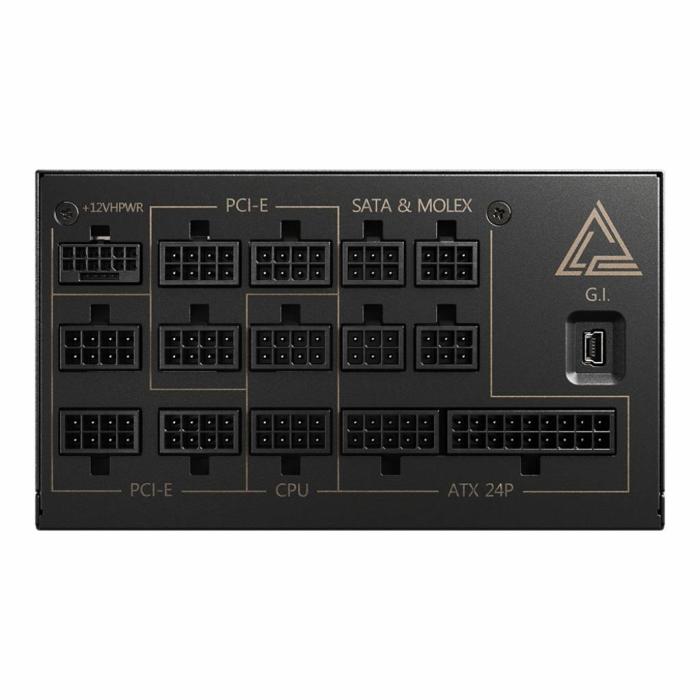

- Motherboard power connector: 24-pin ATX
- Motherboard power cable length: 60 cm
- Number of SATA power connectors: 16
- Peripheral (Molex) power connectors (4-pin): 4
- EPS power connector (8-pin): Yes
- EPS power connector (4+4 pin): Yes
- PCI Express power connectors (6+2 pin): 8
- ATX Power connector (24-pin): Yes
- Floppy disk drive connector: Yes

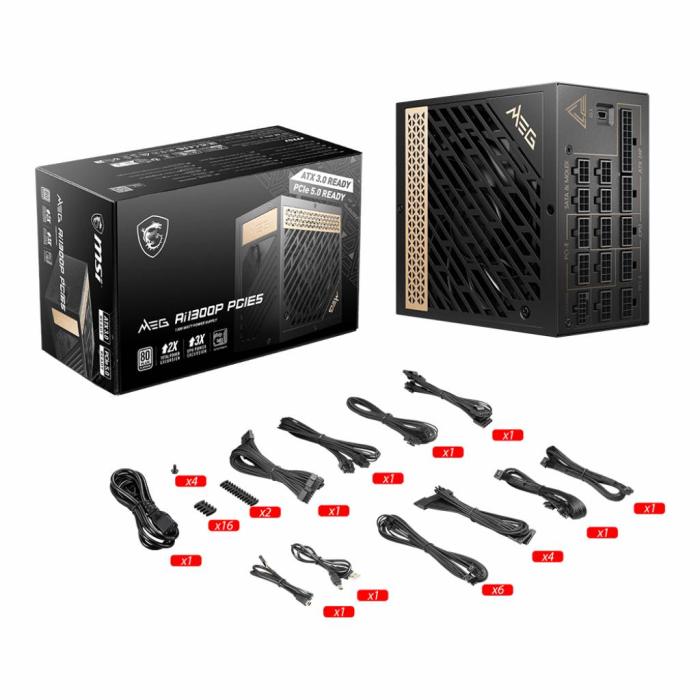

- Cabling type: Fully-Modular
Performance
- 80 PLUS certification: 80 PLUS Gold
- Purpose: PC
- Power supply unit (PSU) form factor: ATX
Design
- Product colour: Black
- Cooling type: Active
- Fan diameter: 12 cm
- Number of fans: 1 fan(s)
- Illumination: No
- On/off switch: Yes
Weight & dimensions
- Width: 150 mm
- Depth: 16 mm
- Height: 86 mm
Logistics data
- Harmonized System (HS) code: 84733020
- Country of origin: China
