Description

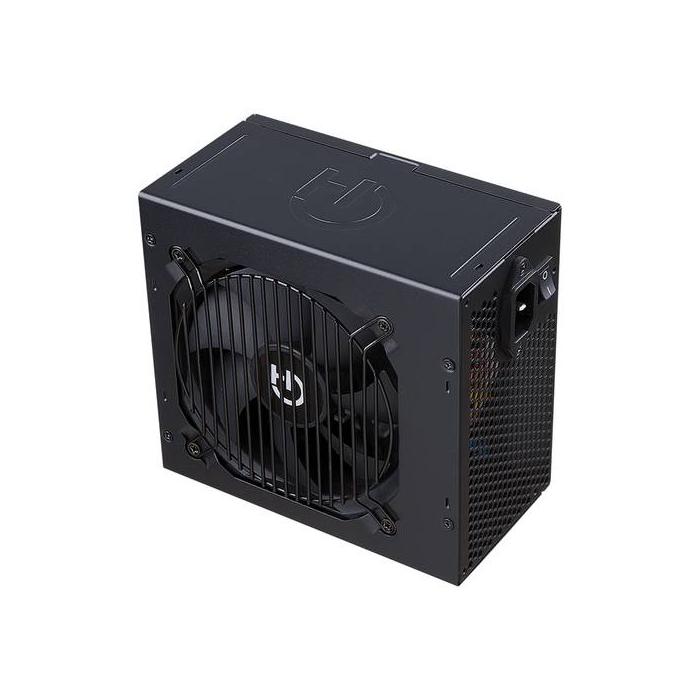

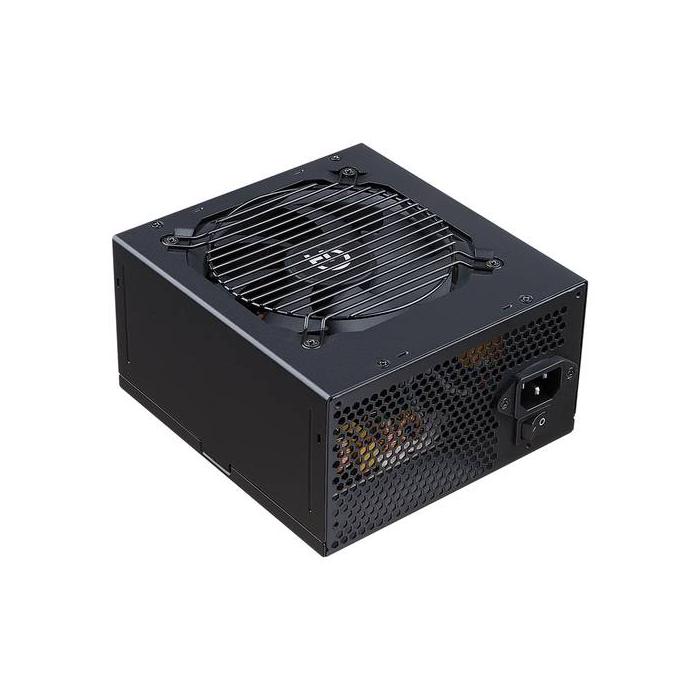

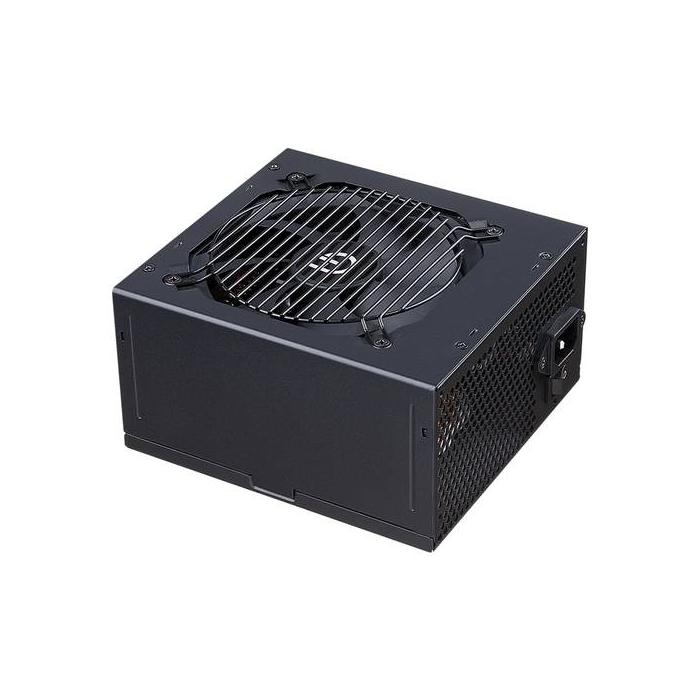

The Hiditec BZ850 power supply unit delivers 850 W of total power with active power factor correction, in black and with a weight of 1.75 kg. Its measurements are 150 x 86 x 160 mm (width x height x depth), a format that fits in most ATX cases. It powers the motherboard via a 20+4 pin ATX connector and supports an AC input voltage of 230 V with a frequency of 50 to 60 Hz. It distributes the load with 70 A on the +12 V rail, 20 A on the +3.3 V rail and 20 A on the +5 V rail, plus 2.5 A on +5Vsb and 0.3 A on -12 V, with an efficiency of 85%. For graphics components it includes two 6+2 pin PCI Express connectors and another two 6 pin ones, along with five SATA connectors whose cable measures 600 mm and two 4 pin Molex. The floppy drive cable reaches 55 cm. It includes protection features against overvoltage, overload and under power.
Specifications
Power
- Total power: 850 W
- AC input voltage: 230 V
- AC input frequency: 50 - 60 Hz
- Power Factor Correction (PFC) type: Active
- Max output current (+3.3V): 20 A
- Max output current (+12V): 70 A
- Max output current (+5V): 20 A
- Max output current (-12V): 0.3 A
- Max output current (+5Vsb): 2.5 A
- Efficiency: 85%
- Power protection features: Over voltage, Overload, Under power

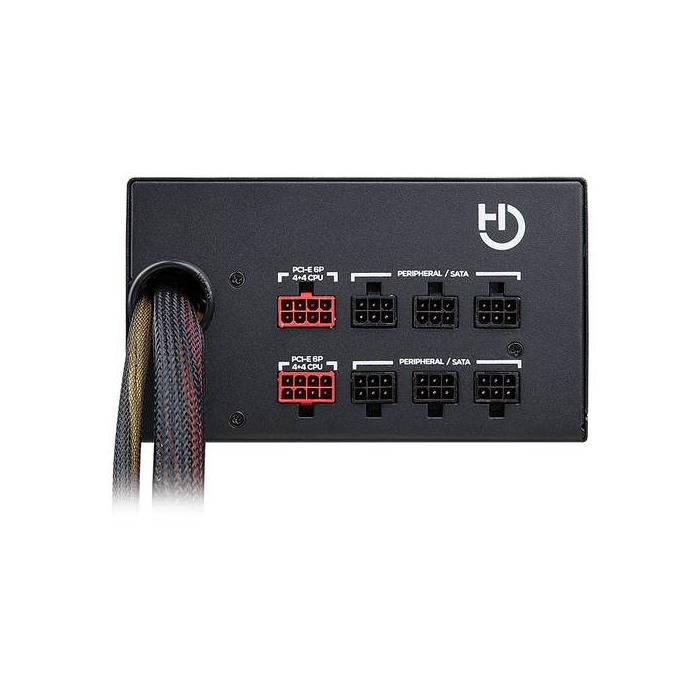

Ports & interfaces
- Motherboard power connector: 20+4 pin ATX
- Motherboard power cable length: 60 cm
- Number of SATA power connectors: 5
- SATA power cable length: 600 mm
- Peripheral (Molex) power connectors (4-pin): 2
- Peripheral (Molex) power cable length: 600 mm
- PCI Express power connectors (6-pin): 2
- PCI Express power connectors (6+2 pin): 2
- Floppy drive power connector: 1
- Floppy disk drive connector: Yes
- Floppy disk drive cable length: 55 cm
- Cabling type: Non-Modular
Performance
- 80 PLUS certification: 80 PLUS Bronze
- Purpose: PC
- Power supply unit (PSU) form factor: ATX
- ATX version: 2.4
- Silent mode: Yes
- Mean time between failures (MTBF): 100000 h
Design
- Product colour: Black
- Cooling type: Active
- Fan diameter: 14 cm
- Number of fans: 1 fan(s)
Certificates
- Certification: CE, RoHs
Weight & dimensions
- Width: 150 mm
- Depth: 160 mm
- Height: 86 mm
- Weight: 1.75 kg
