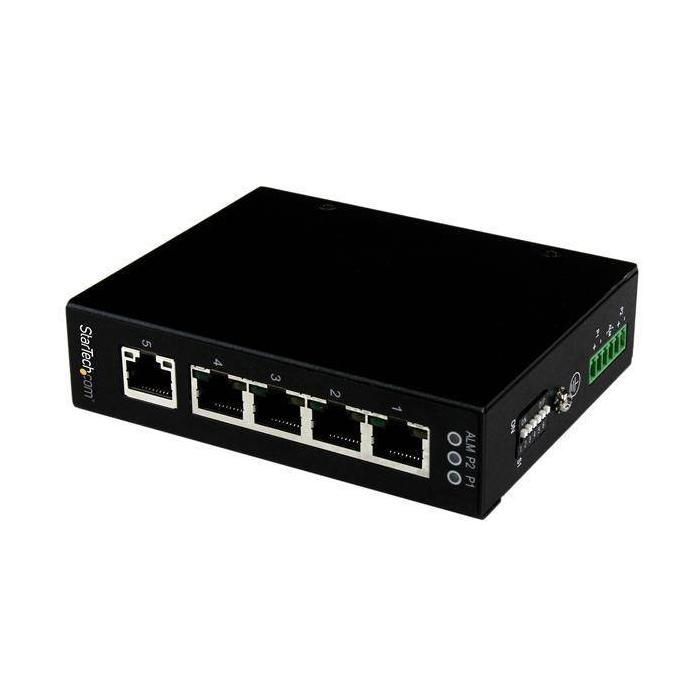

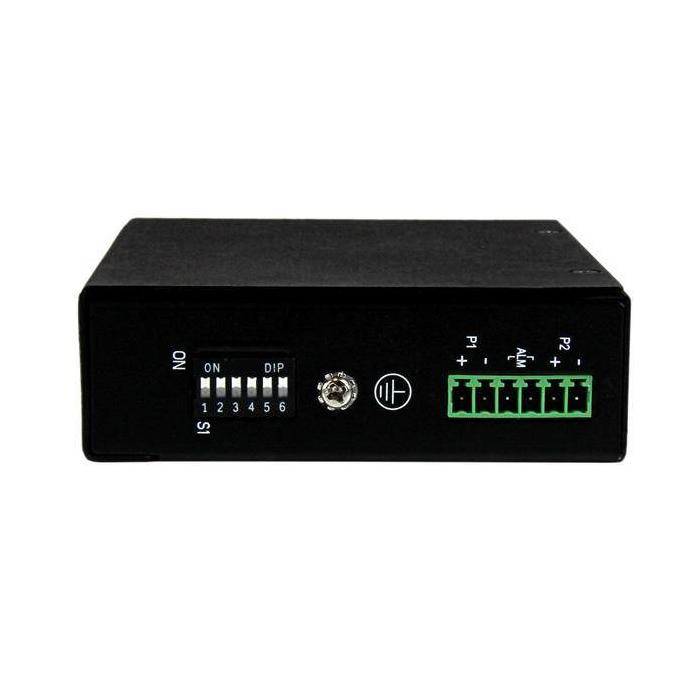

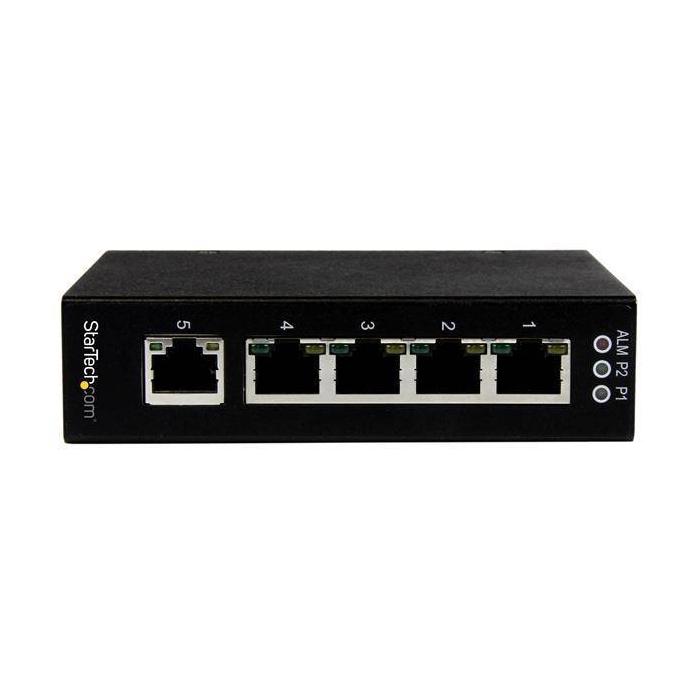

StarTech.com 5 Port Unmanaged Industrial Gigabit Ethernet Switch - DIN Rail / Wall-Mountable

203.00 €
167.77 € without VAT

More info

Brand: STARTECH.COM
SKU: 72574 PRC: 42616 EAN: 65030859318 PN: IES51000

Description

Specifications

Management features

  • Switch type: Unmanaged

Ports & interfaces

  • Basic switching RJ-45 Ethernet ports quantity: 5
  • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
  • Power connector: DC-in jack

Network

  • Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u
  • 10G support: No
  • Full duplex: Yes
  • Link aggregation: Yes
  • Auto MDI/MDI-X: Yes

Data transmission

  • Switching capacity: 2 Gbit/s
  • Store-and-forward: Yes
  • Jumbo frames support: Yes

Design

  • Product colour: Black
  • Housing material: Steel
  • LED indicators: Activity, Link, Power
  • International Protection (IP) code: IP30
  • Wall mountable: Yes

Performance

  • Maximum cable length: 100 m
  • Buffer size: 128 KB

Power

  • Input voltage: 12 - 58 V
  • Power consumption (typical): 3.63 W

Power over Ethernet (PoE)

  • Power over Ethernet (PoE): No

Operational conditions

  • Operating temperature (T-T): -40 - 75 °C
  • Storage temperature (T-T): -40 - 85 °C
  • Operating relative humidity (H-H): 5 - 95%

Weight & dimensions

  • Width: 89 mm
  • Depth: 111 mm
  • Height: 28 mm
  • Weight: 328 g

Packaging content

  • Manual: Yes

Packaging data

  • Wall mounting kit: Yes
  • Terminal block included: Yes
  • Mounting brackets included: Yes
  • Screws included: Yes
  • DIN rail included: Yes
  • Package width: 139 mm
  • Package depth: 176 mm
  • Package height: 83 mm
  • Package weight: 523 g

Certificates

  • Certification: CE, FCC, RoHS, REACH

Logistics data

  • Harmonized System (HS) code: 85176990
