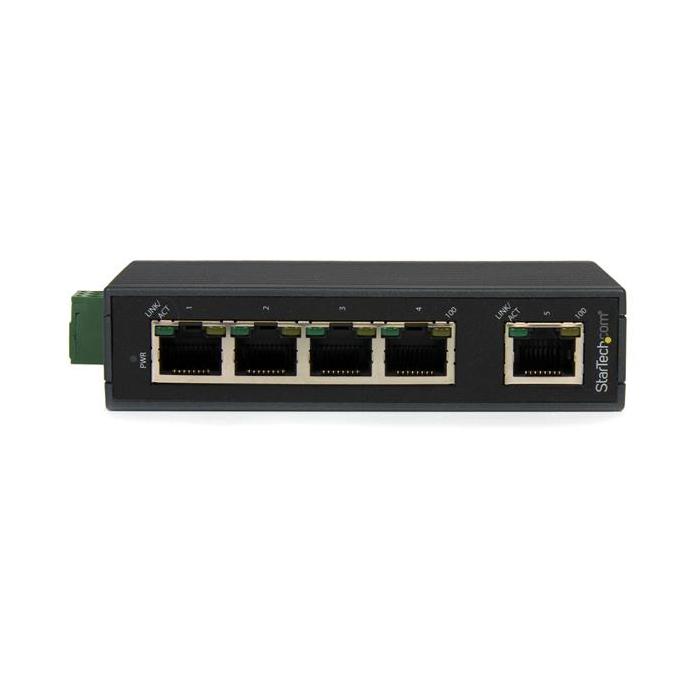

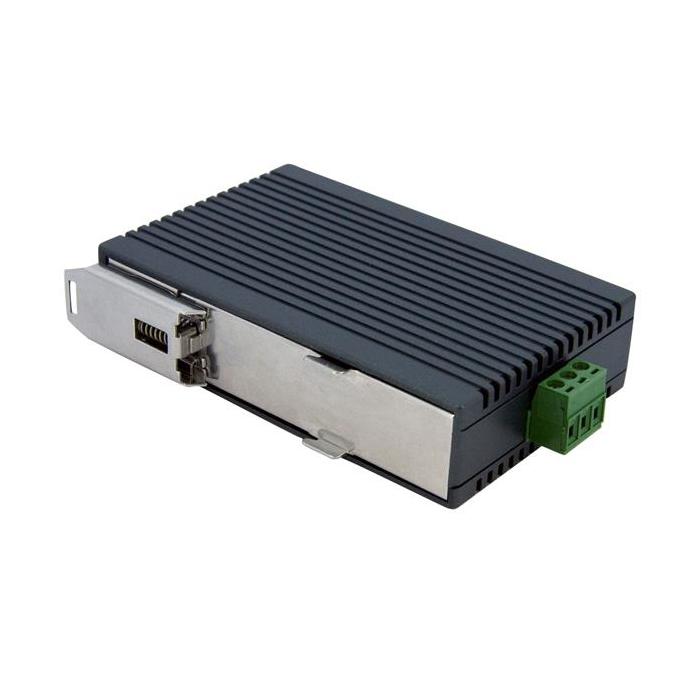

StarTech.com 5-port industrial Ethernet switch - DIN rail mountable

$88.55
$88.55 without VAT

StarTech.com 5-port industrial Ethernet switch - DIN rail mountable.   More info

Brand: STARTECH.COM
SKU: 74962 PRC: 74539 EAN: 65030859745 PN: IES5102

Description

Specifications

Management features

  • Switch type: Unmanaged
  • Quality of Service (QoS) support: Yes

Ports & interfaces

  • Basic switching RJ-45 Ethernet ports quantity: 5
  • Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100)

Network

  • Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3az, IEEE 802.3u
  • 10G support: No
  • Full duplex: Yes
  • Auto MDI/MDI-X: Yes
  • Auto-negotiation: Yes

Data transmission

  • Store-and-forward: Yes
  • Jumbo frames support: No

Design

  • Rack mounting: Yes
  • Product colour: Black
  • Housing material: Plastic
  • LED indicators: Activity, Link, Power
  • International Protection (IP) code: IP30
  • Regulatory Approvals: EN61000-6-2, EN61000-6-4, EN61000-4-3, EN61000-4-4, EN61000-4-6, EN61000-4-8, IEC60068-2-6 Fc, IEC60068-2-27 Ea

Performance

  • Maximum cable length: 100 m
  • Buffer size: 56 KB
  • Maximum data transfer rate: 200 Mbit/s
  • Mean time between failures (MTBF): 1179133 h

Power

  • Input voltage: 12 - 48 V
  • Power consumption (max): 2.12 W

Operational conditions

  • Operating temperature (T-T): -10 - 60 °C
  • Storage temperature (T-T): -25 - 85 °C
  • Operating relative humidity (H-H): 5 - 95%

Weight & dimensions

  • Width: 25 mm
  • Depth: 70 mm
  • Height: 110 mm
  • Weight: 148 g

Packaging content

  • Manual: Yes

Packaging data

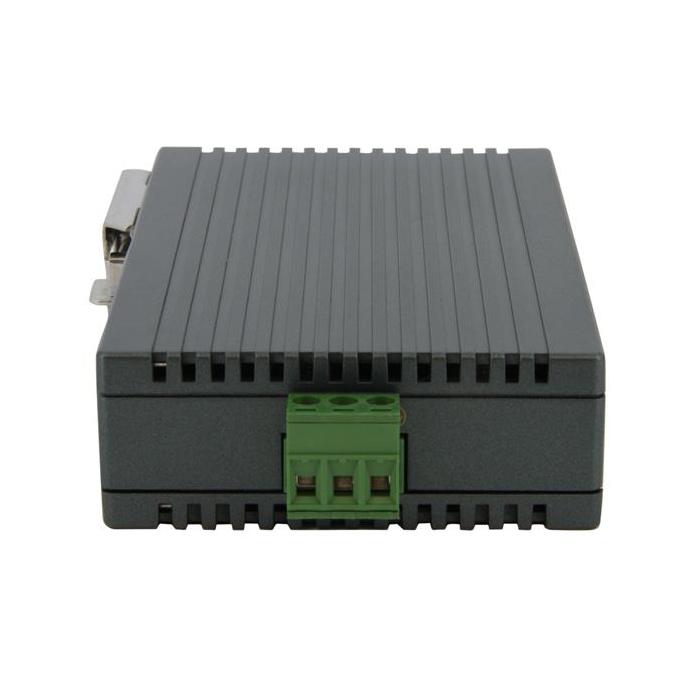

  • Terminal block included: Yes
  • Package width: 178 mm
  • Package depth: 198 mm
  • Package height: 79 mm
  • Package weight: 312 g

Certificates

  • Certification: CE, FCC

Logistics data

  • Harmonized System (HS) code: 85176990
