Description

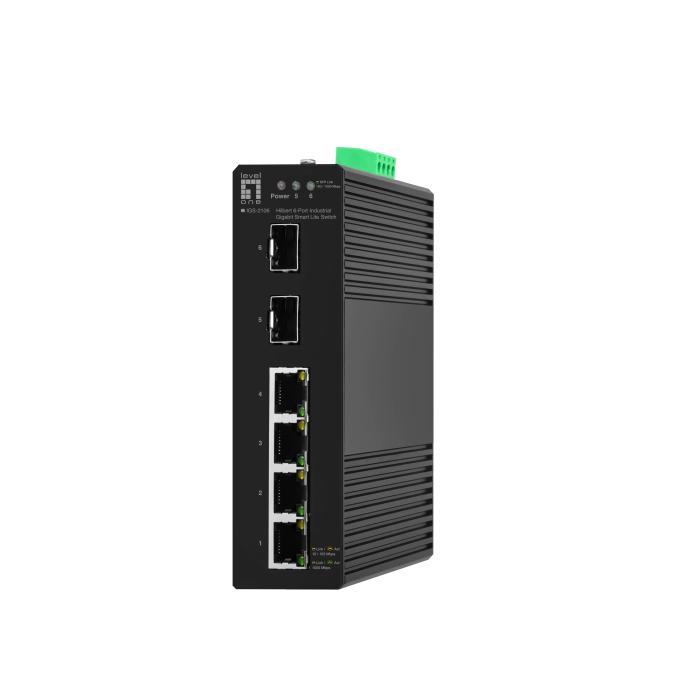

LevelOne Hilbert 6-Port Industrial Gigabit Smart Lite Switch, 4x RJ45, 2x SFP, Managed, L2, Gigabit Ethernet (10/100/1000), Full duplex
Specifications
Management features
- Quality of Service (QoS) support: Yes
- Web-based management: Yes
- Switch type: Managed
- Switch layer: L2
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 4
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- Gigabit Ethernet (copper) ports quantity: 4
- SFP module slots quantity: 2
- Fiber uplink ports quantity: 2
Network
- Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3x, IEEE 802.3z
- 10G support: No
- Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T, 1000BASE-X
- Port mirroring: Yes
- Full duplex: Yes
- Half duplex: Yes
- Flow control support: Yes
- Link aggregation: Yes
- Broadcast storm control: Yes
- Rate limiting: Yes
- Auto MDI/MDI-X: Yes
- Spanning tree protocol: Yes
- Auto-negotiation: Yes
- MAC address auto-learning supported: Yes
- MAC address auto-aging supported: Yes
- VLAN support: Yes
- Virtual LAN features: Port-based VLAN, Tagged VLAN
- Number of VLANs: 32
Data transmission
- Switching capacity: 12 Gbit/s
- Forwarding rate: 8.928 Mpps
- MAC address table: 2000 entries
- Jumbo frames support: Yes
- Jumbo frames: 9000
- Packet buffer memory: 1.5 MB
Security
- IGMP snooping: Yes
- Queue scheduling algorithms: Priority queuing (PQ)
Multicast features
- Multicast support: Yes
Design
- Product colour: Black
- LED indicators: Activity, Link, Power
- International Protection (IP) code: IP30

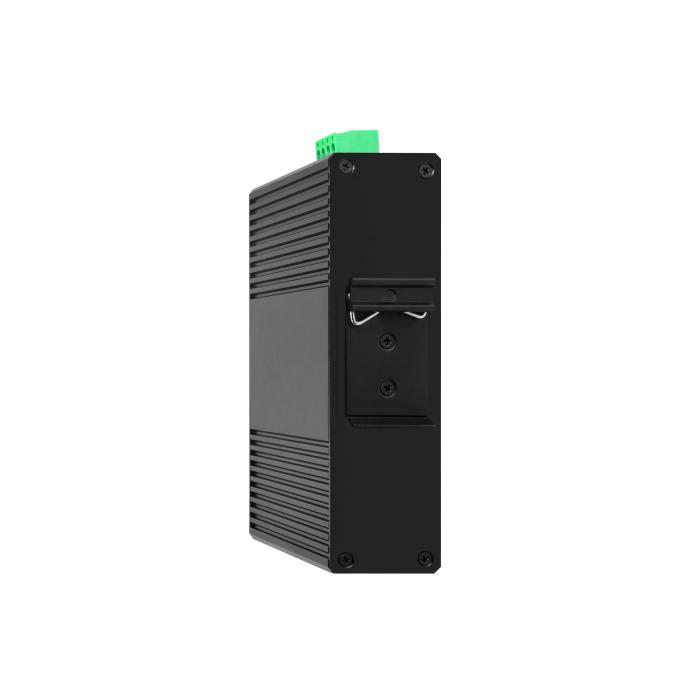

- DIN rail mounting: Yes
Performance
- Flash memory: 2 MB
- Noise level: 0 dB
- Fanless: Yes
- Mean time between failures (MTBF): 43800 h

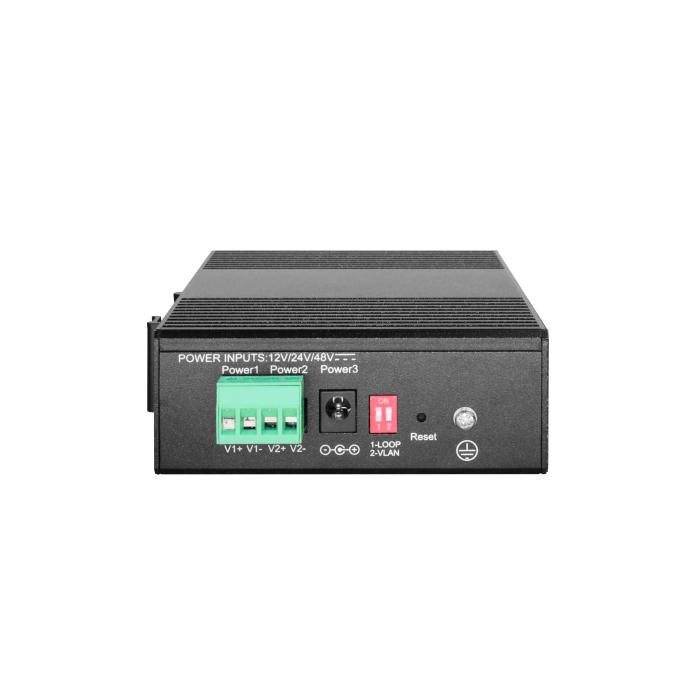

Power
- Power source: DC
- Power supply included: No
- Redundant power supply (RPS) support: Yes
- DC input voltage: 12 - 57 V
- Power consumption (typical): 6 W
- Surge protection: Yes
- Surge protection voltage: 4 kV
Power over Ethernet (PoE)
- Power over Ethernet (PoE): No
Operational conditions
- Operating temperature (T-T): -40 - 75 °C
- Storage temperature (T-T): -40 - 85 °C
- Operating relative humidity (H-H): 10 - 90%
- Storage relative humidity (H-H): 5 - 95%
- Heat dissipation: 20.47 BTU/h
Weight & dimensions
- Width: 136 mm
- Depth: 108 mm
- Height: 38.5 mm
- Weight: 430 g
Packaging content
- Quick start guide: Yes
Packaging data
- Terminal block included: Yes
- Package type: Box
- DIN rail included: Yes
- Package width: 191 mm
- Package depth: 135 mm
- Package height: 60 mm
- Package weight: 680 g
Sustainability
- Sustainability compliance: Yes
Technical details
- Layers per pallet (air): 16 pc(s)
- Pallet gross length: 80 cm
- Pallet gross width: 120 cm
Certificates
- Compliance certificates: CE, Federal Communications Commission (FCC), RoHS, UKCA
Logistics data
- Pallet gross height: 154.4 cm
- Country of origin: China
- Master (outer) case width: 480 mm
- Master (outer) case length: 395 mm
- Master (outer) case height: 350 mm
- Harmonized System (HS) code: 8517620090
- Master (outer) case gross weight: 24 kg
- Products per master (outer) case: 34 pc(s)
