Description

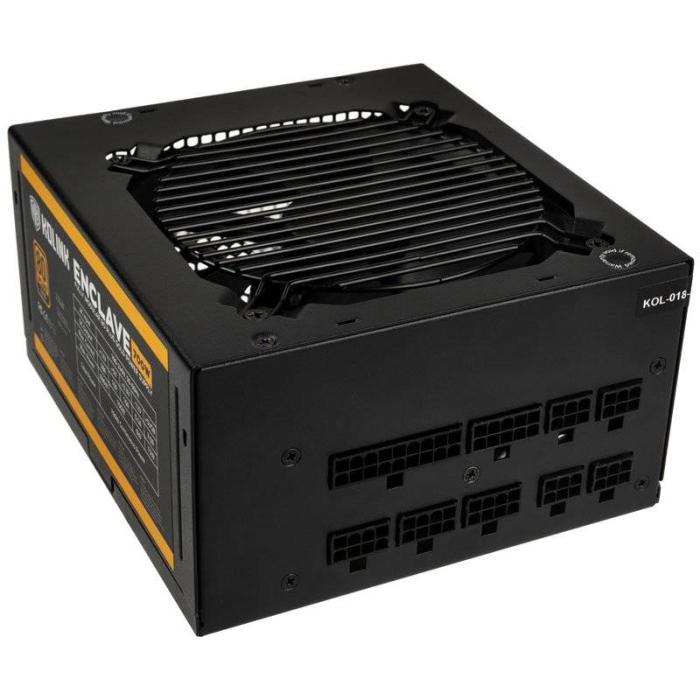

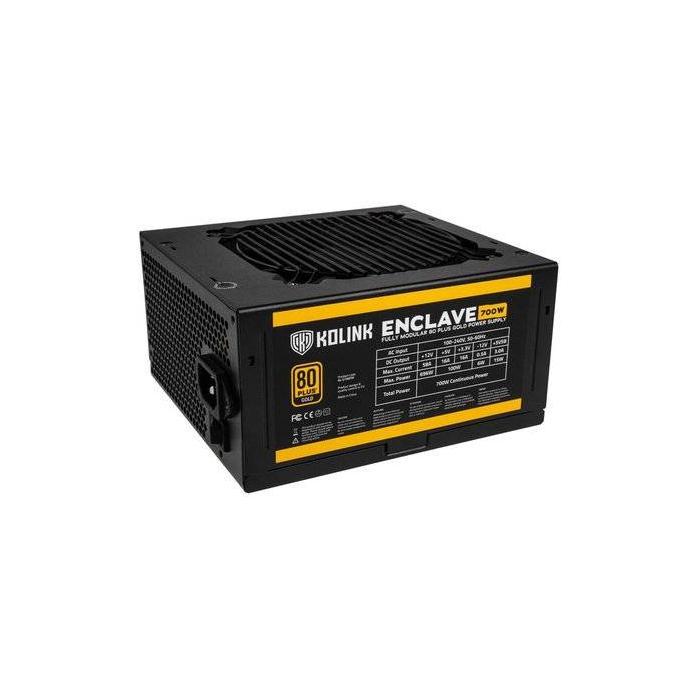

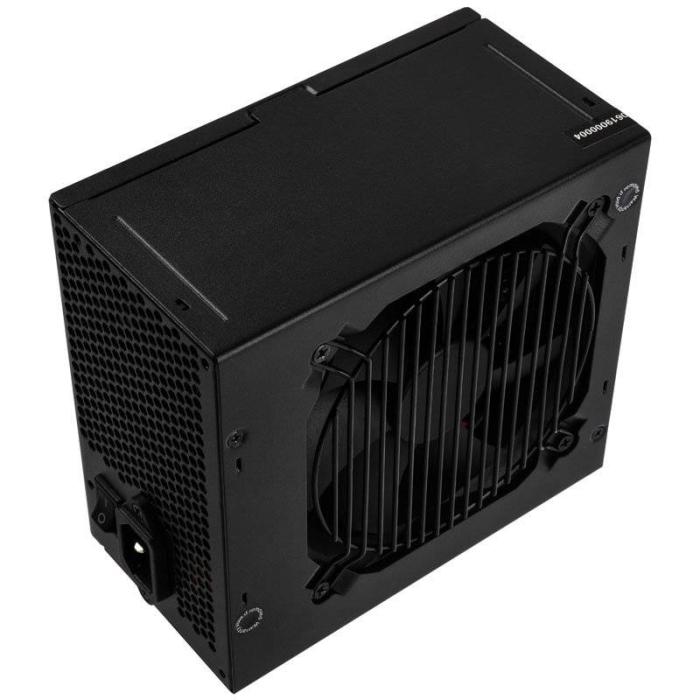

The Kolink Enclave power supply unit, in its 700 W black version, offers a total power output of 700 W with an ATX form factor and a 20+4 pin main connector. It features active power factor correction and 90% efficiency, with protections against overvoltage, overload, short circuit, and undervoltage. Its input accepts between 100 and 240 V with an input current of 6 A and a frequency of 50-60 Hz; the +12 V rail delivers up to 58 A (696 W combined), while the +3.3 V and +5 V lines provide 16 A each (100 W combined), plus 3 A on +5Vsb and 0.5 A on -12V. The CPU power cable measures 65 cm, making connection easier in mid-tower cases.
Specifications
Power
- Total power: 700 W
- AC input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
- Input current: 6 A
- Power Factor Correction (PFC) type: Active
- Combined power (+3.3V): 100 W
- Combined power (+12V): 696 W
- Combined power (+5V): 100 W
- Combined power (-12V): 6 W
- Combined power (+5Vsb): 15 W
- Max output current (+3.3V): 16 A
- Max output current (+12V): 58 A
- Max output current (+5V): 16 A
- Max output current (-12V): 0.5 A
- Max output current (+5Vsb): 3 A
- Efficiency: 90%
- Power protection features: Over voltage, Overload, Short circuit, Under voltage

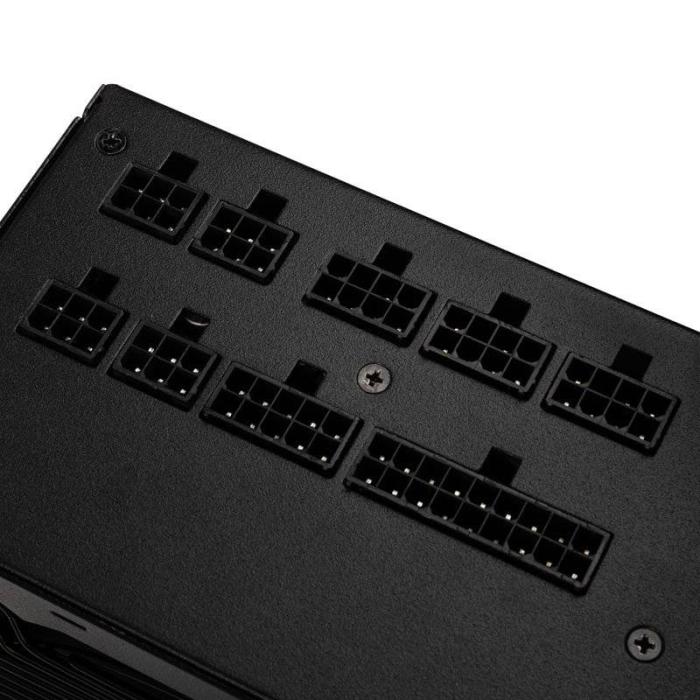

Ports & interfaces
- Motherboard power connector: 20+4 pin ATX
- Motherboard power cable length: 50 cm
- Number of SATA power connectors: 8
- Peripheral (Molex) power connectors (4-pin): 4
- PCI Express power connectors (6+2 pin): 4
- CPU power connector (4+4 pin): Yes
- CPU power cable length: 65 cm
- ATX power connector (20+4 pin): Yes
- Cabling type: Fully-Modular
Performance
- 80 PLUS certification: 80 PLUS Gold
- Purpose: PC/Server
- Power supply unit (PSU) form factor: ATX
- ATX version: 2.31
- Mean time between failures (MTBF): 100000 h
Design
- Product colour: Black

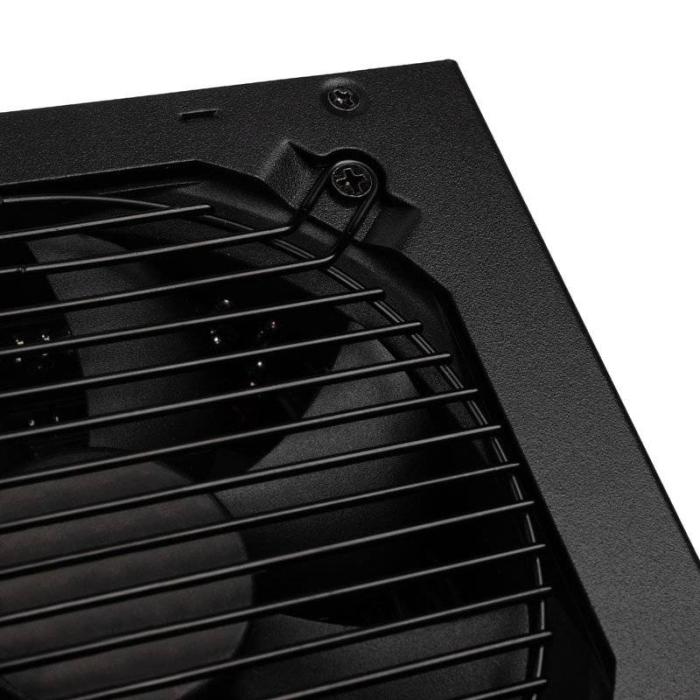

- Fan diameter: 12 cm
- Number of fans: 1 fan(s)
Operational conditions
- Operating temperature (T-T): 0 - 45 °C
Packaging content

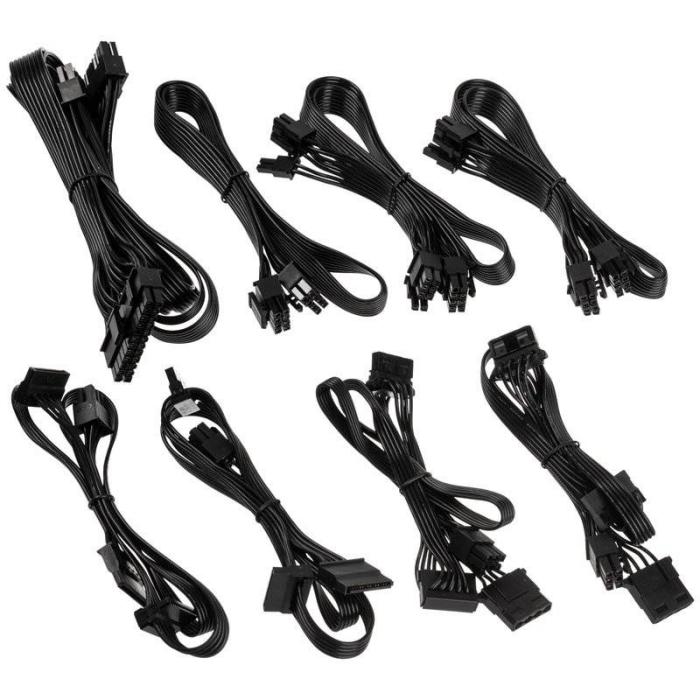

- Cables included: CPU, PCIe, Peripheral (Molex), SATA
Certificates
- Certification: CB, CE, RoHS
Weight & dimensions
- Width: 150 mm
- Depth: 160 mm
- Height: 86 mm
- Weight: 2.01 kg
Packaging data
- Package width: 299 mm
- Package depth: 112 mm
- Package height: 249 mm
- Package weight: 2.56 kg
- Package type: Box
