FSP DAGGER PRO ATX3.0(PCIe5.0) 850W power supply unit 20+4 pin ATX SFX Black

Few units

Product 1 image

Product 2 image

Product 3 image

Product 4 image

Product 5 image

Product 6 image

Product 7 image

Product 8 image

Product 9 image

Product 10 image

Product 11 image

Product 12 image

FSP DAGGER PRO ATX3.0(PCIe5.0) 850W power supply unit 20+4 pin ATX SFX Black

155.00 €

128.10 € without VAT

Amount

Brand: FSP

SKU: 110314 PRC: 594395 EAN: 4713224527968 PN: PPA8503900

Description

FSP DAGGER PRO ATX3.0(PCIe5.0) 850W, 850 W, 100 - 240 V, 50/60 Hz, 12-6 A, Active, 120 W

Specifications

Power

Total power: 850 W
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Input current: 12-6 A
Power Factor Correction (PFC) type: Active
Combined power (+3.3V): 120 W
Combined power (+12V): 850 W
Combined power (+5V): 120 W
Combined power (-12V): 3.6 W
Combined power (+5Vsb): 12.5 W
Max output current (+3.3V): 20 A
Max output current (+12V): 70.83 A
Max output current (+5V): 20 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 2.5 A
Efficiency: 90%
Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit

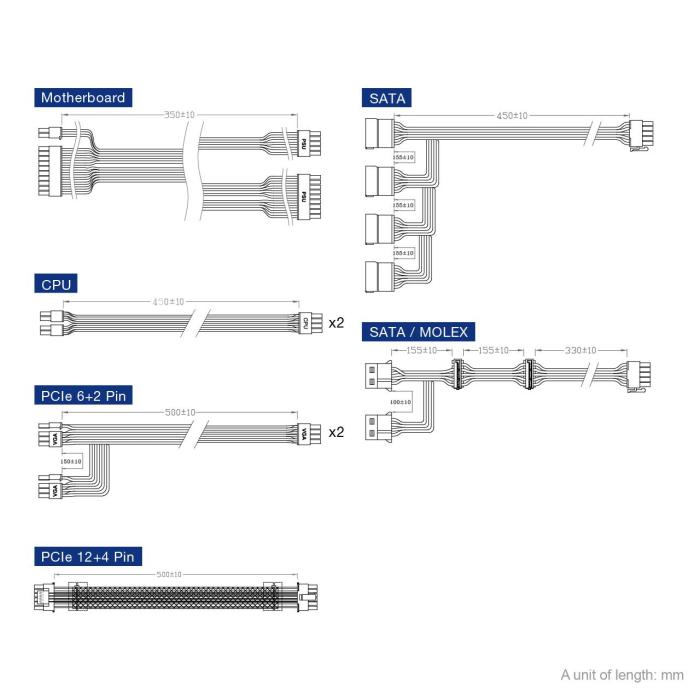

Ports & interfaces

Motherboard power connector: 20+4 pin ATX
Motherboard power cable length: 35 cm
Number of SATA power connectors: 6
SATA power cable length: 450 mm
Peripheral (Molex) power connectors (4-pin): 2
PCI Express power connectors (6+2 pin): 2
PCI Express power connectors (12+4 pin): 1
PCI Express power connectors (12+4 pin) cable length: 500 mm
CPU power connector (4+4 pin): Yes
CPU power cable length: 45 cm
Cabling type: Fully-Modular

Performance

80 PLUS certification: 80 PLUS Gold
Purpose: PC
Power supply unit (PSU) form factor: SFX
ATX version: 3.0
Bearing technology: Ball bearing

Design

Product colour: Black
Cooling type: Active
Fan diameter: 9.2 cm
Number of fans: 1 fan(s)
Fan location: Top
On/off switch: Yes

Packaging content

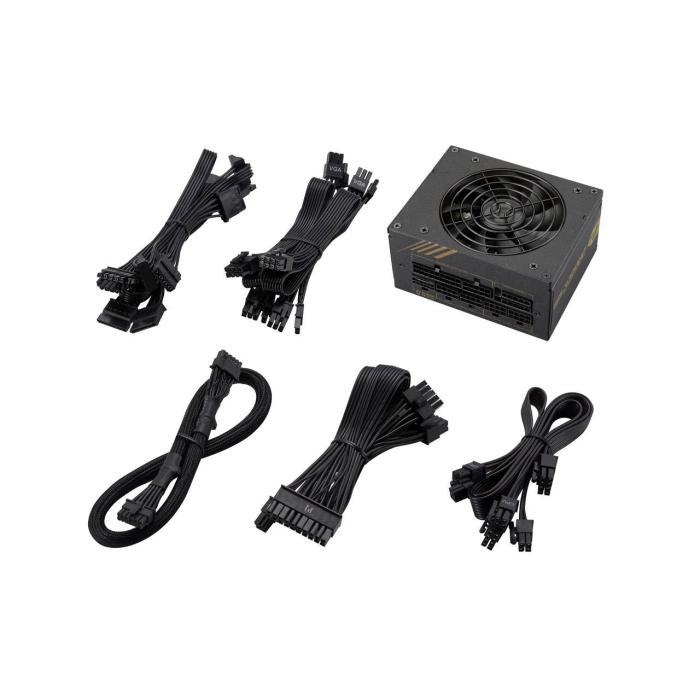

Cables included: CPU, PCIe, Peripheral (Molex), SATA

Weight & dimensions

Width: 100 mm
Depth: 125 mm
Height: 63.5 mm
