Intel I350T2V2BLK network card Internal Ethernet 1000 Mbit/s

Intel I350T2V2BLK network card Internal Ethernet 1000 Mbit/s

Name: Intel I350T2V2BLK network card Internal Ethernet 1000 Mbit/s
Brand: INTEL
SKU: 52534
Price: 103 EUR
Availability: OutOfStock

More info

Brand: INTEL

103.00 €

Stock available: 0 units.

Unavailable

SKU: 80250 PRC: 52534 EAN: 7330381947384 PN: I350T2V2BLK

Description

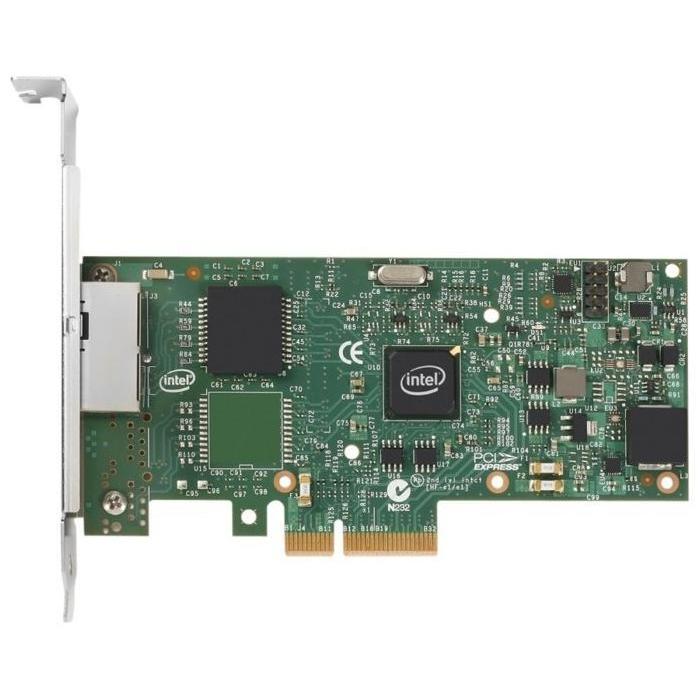

The Intel I350T2V2BLK adapter is an internal network card with a PCI Express interface and a low-profile or full-height form factor, designed for servers. Equipped with two RJ-45 Ethernet ports, it offers wired connectivity at speeds of 1000 Mbit/s using 10/100/1000BaseT(X) technology, with full duplex support and a maximum operating distance of 100 metres. It integrates the Intel I350 controller and is compatible with standards such as IEEE 802.3, 802.3ab, 802.3az and 802.3u, as well as TCP, UDP and IP protocols. The PCI 2.1 version and its internal design facilitate installation in professional networking equipment requiring two redundant or aggregated Ethernet connections.

Specifications

Ports & interfaces

Connectivity technology: Wired
Host interface: PCI Express
Interface: Ethernet
Ethernet LAN (RJ-45) ports: 2
PCI version: 2.1
PCI Card form factor: Full-height (low-profile)

Network

LAN controller: Intel® I350
Maximum data transfer rate: 1000 Mbit/s
Networking standards: IEEE 802.1as, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Ethernet LAN: Yes
Ethernet LAN data rates: 1000 Mbit/s
Cabling technology: 10/100/1000BaseT(X)
Full duplex: Yes
Supported network protocols: TCP, UDP, IP
Maximum operating distance: 100 m

Design

Component for: Server
Internal: Yes
Chipset: Intel® I350

Power

Power consumption (typical): 5 W

System requirements

Compatible operating systems: https://www.intel.com/content/www/us/en/support/articles/000025890/network-and-i-o/ethernet-products.html

Operational conditions

Operating temperature (T-T): 0 - 55 °C
Storage temperature (T-T): -40 - 70 °C
Storage relative humidity (H-H): 35 - 90%

Weight & dimensions

Width: 68.9 mm
Depth: 135.4 mm

Logistics data

Harmonized System (HS) code: 8517620090

Other features

Cable type: Cat 5 up to 100m
Market segment: Server
Intel Virtual Machine Device Queues (VMDq): Yes
PCI-SIG* SR-IOV Capable: Yes
On-chip QoS and Traffic Management: Yes
Intel Flexible Port Partitioning: Yes
Storage-over-ethernet: Yes
Speed & slot width: 5.0 GT/s, x4 Lane
Low halogen options available: No
Intelligent Offloads: Yes
iWARP/RDMA: No
Intel Ethernet Power Management: Yes
Intel Virtualization Technology for Connectivity (VT-c): Yes
Interface type: PCIe v2.1 (5.0 GT/s)
Product type: Network Interface Card
Thermal Design Power (TDP): 4.4 W
Processor family: Gigabit Ethernet Adapters (up to 2.5GbE)-Gigabit Ethernet Adapters (up to 2.5GbE)
Launch date: Q3'14
Network interface card cable medium: Copper
Network interface card type: Server
Product brief URL: http://www.intel.com/content/www/us/en/ethernet-controllers/ethernet-i350-server-adapter-brief.html?wapkw=i350
Status: Launched
Last change: 63903513
Ethernet adapter ARK ID: 84804
Storage Over Ethernet: iSCSI, NFS
Export Control Classification Number (ECCN): 5A991.B.4.A
Commodity Classification Automated Tracking System (CCATS): NA
Controller type: Intel I350
Cabling type: Cat 5 up to 100m
Bracket height: Low-Profile (LP) / Full-Height (FH)
Product family: Intel Gigabit server adapter
Product series: Intel® I350
Product codename: Powerville
